• Metro Marine High-Output Submersible Underwater Light w/Intelligent Monochromatic LED's - White, 90° Beam
1 1

Metro Marine

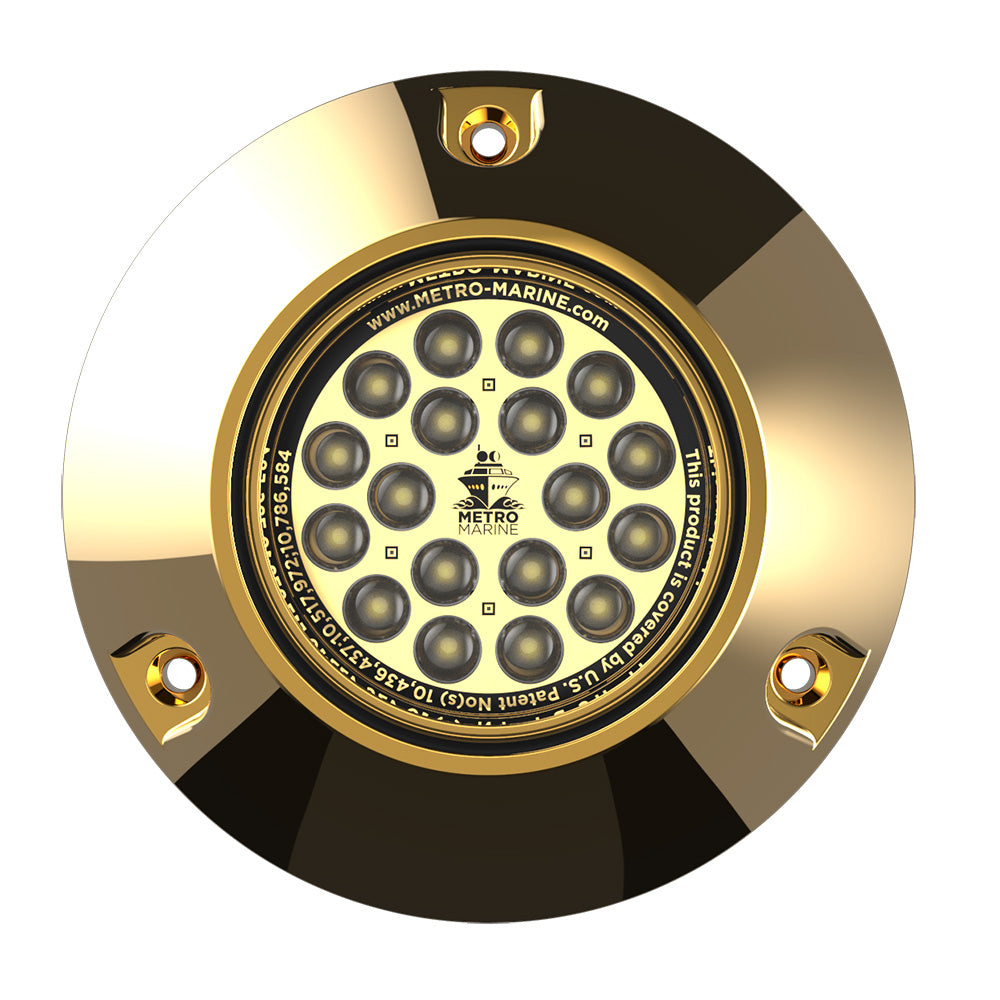

Metro Marine High-Output Submersible Underwater Light w/Intelligent Monochromatic LED's - White, 90° Beam

Metro Marine High-Output Submersible Underwater Light w/Intelligent Monochromatic LED's - White, 90° Beam

OM-METROMARINE-HIGHOUTPUTSUBM-FBMR1W390

$684.95
$1,136.00 $684.95
Sale
Shipping calculated at checkout.

Low stock: 1 left
Authorized Metro Marine Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

WhiteColor
AB2 Aluminum BronzeMaterial
SurfaceMounting Style
10-30vVoltage - Input Range (Volts)
44wWatts

This Metro Marine F-Series underwater light is a white LED fixture for submerged marine and architectural installations. It is built for use on yachts, docks, sea walls, fountains and theme park installations where a 90 degree beam and uniform white light are required.

  • Model: F-BMR1-W3-90
  • Light type: High-output submersible underwater LED light
  • Color: White
  • Beam angle: 90 degrees
  • LED array: 18 high-output LEDs per fixture
  • Mounting depth: Up to 4.6M, or 15 feet, below the water surface
  • Suggested vessel range: Yachts from 10M to 30M, or 32 feet to 100 feet
  • Housing: Watertight aluminum bronze
  • Hardware: Silicon bronze
  • Input voltage: 10VDC-30VDC
  • Power consumption: 44W
  • Dimensions: 5.47 inch diameter x 1.12 inch depth
  • Weight: 2.71 lb
  • Lens material: Clear quartz
  • Operating temperature: -40 to 122 degrees
  • Lens system: Uses UVC LEDs to help keep the clear lens free from biofouling
  • Assembly: Manufactured in a Class 1000 Clean Room with an anti-condensation assembly method

Specifications

ColorWhite
MaterialAB2 Aluminum Bronze
Mounting StyleSurface
Voltage - Input Range (Volts)10-30v
Watts44w
BrandMetro Marine
Manufacturer part #F-BMR1-W3-90
UPC850050884064
Boxed dimensions10 x 9 x 5 in
Shipping weight5.25 lb

Manuals & documents

Installation guidePDF ↓
