• Maxwell RC 8-6 Vertical Windlass 1/4" Chain, 1/2" Rope 12V
1 1

Maxwell

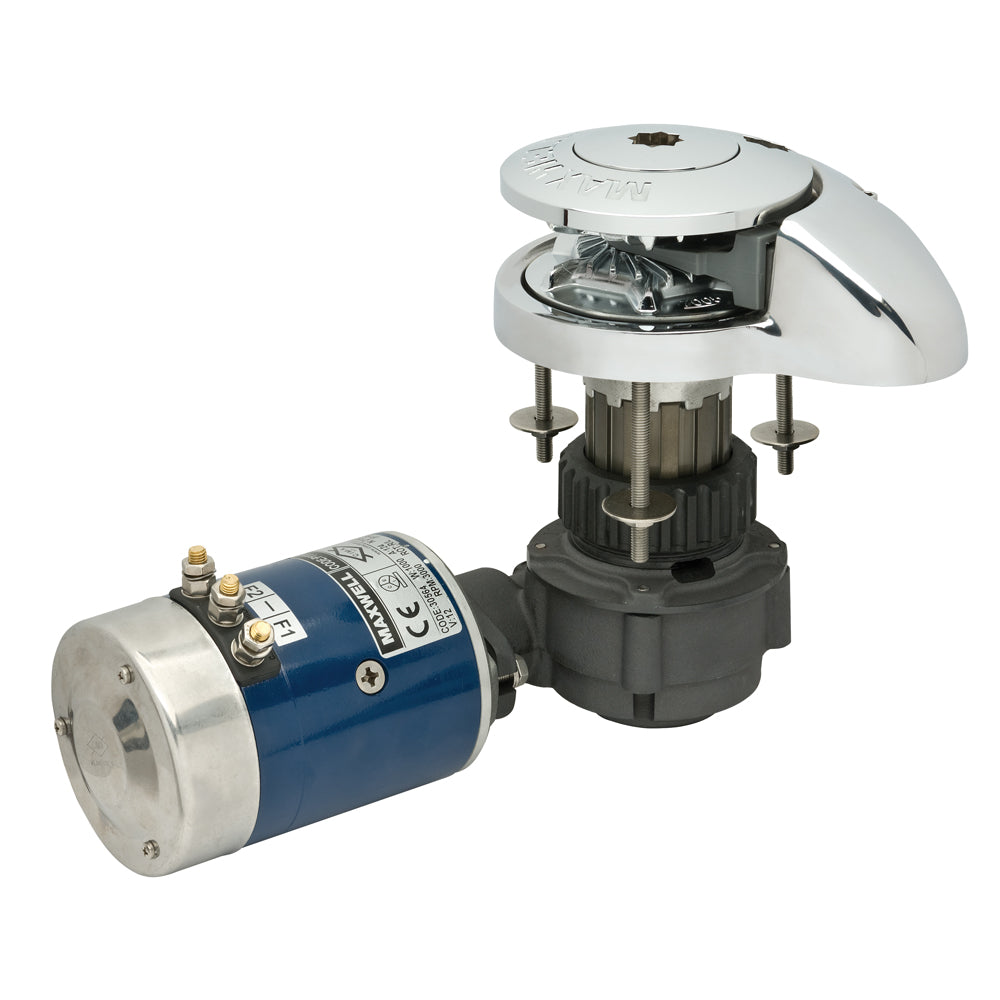

Maxwell RC 8-6 Vertical Windlass 1/4" Chain, 1/2" Rope 12V

Maxwell RC 8-6 Vertical Windlass 1/4" Chain, 1/2" Rope 12V

OM-MAXWELL-RC86-RC8612V

$1,337.59
$2,234.32 $1,337.59
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Frequently bought together

Total price:

FREE U.S. shipping on every item

Overview

1/4"Chain - Diameter (Inches)
YesFreefall
1/2"Rope Diameter (Inches)
VerticalVertical/Horizontal

Handle anchor deployment and retrieval with the Maxwell RC 8-6 vertical windlass. This 12V unit gives boaters automatic operation with a compatible rope-and-chain rode or an all-chain setup.

Key features

  • The Wave Design chainwheel guides chain and grips rope to help control the rode during retrieval.
  • A spring-loaded stainless steel pressure arm helps the wheel engage the rope-to-chain splice.
  • Two-piece installation allows retrofitting without taking the windlass apart, while multiple mounting positions help accommodate the gearbox and motor.
  • A large through-deck opening helps the rode travel into and out of the anchor locker.
  • The supplied emergency crank provides manual operation when needed.
  • Topworks can be dismantled using the supplied handle and an Allen key for servicing access.

Specifications

  • Model: RC 8-6
  • Configuration: Vertical windlass
  • Voltage: 12V
  • Chain size: 1/4 inch / 6mm / 7mm
  • Rope size: 1/2 inch / 12mm
  • Rope construction: Three-strand or 8-brait plait
  • Windlass material: Marine-grade 316 stainless steel
  • Gearbox: Marine-grade hard-anodised alloy, sealed oil bath
  • Drive: Worm and worm wheel

Good to know

The package contains the windlass, on/off breaker panel, reversing solenoid, up/down panel switch and emergency crank/clutch release handle. The windlass accepts the specified chain spliced to compatible rope and also operates with all-chain rodes.

Specifications

Chain - Diameter (Inches)1/4"
FreefallYes
Rope Diameter (Inches)1/2"
Vertical/HorizontalVertical
BrandMaxwell
Manufacturer part #RC8612V
UPC1000000004847
Boxed dimensions19 x 17 x 11 in
Shipping weight31.8 lb
Country of originNEW ZEALAND
