• Maxwell HRC 10-8 Rope Chain Horizontal Windlass 5/16" Chain, 5/8" Rope 12V, with Capstan
1 1

Maxwell

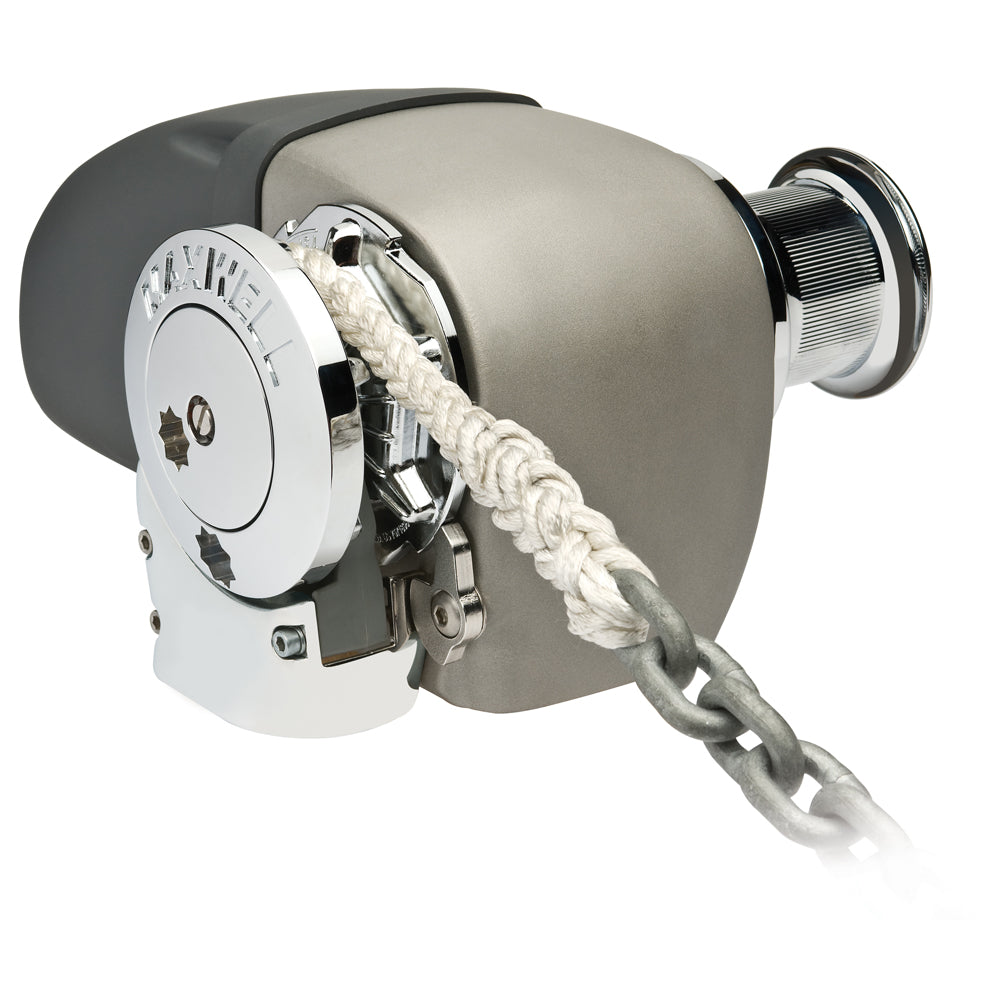

Maxwell HRC 10-8 Rope Chain Horizontal Windlass 5/16" Chain, 5/8" Rope 12V, with Capstan

Maxwell HRC 10-8 Rope Chain Horizontal Windlass 5/16" Chain, 5/8" Rope 12V, with Capstan

OM-MAXWELL-HRC108-HRC10812V

$2,558.27
$4,265.85 $2,558.27
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Frequently bought together

Total price:

FREE U.S. shipping on every item

Overview

5/16"Chain - Diameter (Inches)
YesFreefall
5/8"Rope Diameter (Inches)
HorizontalVertical/Horizontal

Handle anchor deployment and retrieval aboard boats up to 45 feet with the Maxwell HRC 10-8 horizontal windlass with capstan. This 12 V model works with rope-and-chain or all-chain rodes, with the motor and drive housed above deck to conserve space below.

Key features

  • Automatic rope-and-chain handling supports both lowering and recovering the anchor.
  • The Wave Design chainwheel accommodates differences in chain pitch within the specified chain sizes.
  • A stainless steel pressure arm maintains pressure on rope, splice and chain as they pass through.
  • A two-part watertight housing and removable motor cover allow routine maintenance from the deck.
  • The built-in chain pipe and broad hawse opening guide the rode between the windlass and anchor locker.
  • A cone clutch/brake permits manual free-fall anchoring and emergency crank recovery.

Specifications

  • Model: HRC 10-8
  • Configuration: Horizontal windlass with capstan
  • Voltage: 12 V
  • Boat length: Up to 45 feet
  • Maximum pull: 1,540lb
  • Chain size: 8mm / 5/16 inch
  • Rope size: 16mm / 5/8 inch
  • Rope construction: Three-strand or 8-brait plait
  • Front housing: Die-cast, marine-grade hard-anodized alloy
  • Motor cover: Composite
  • Chainwheel and pressure arm material: Stainless steel
  • Gearbox: Sealed oil bath, marine-grade hard-anodized alloy
  • Warranty: 3-year limited

Good to know

The kit contains the windlass, on/off breaker panel, reversing solenoid, up/down panel switch and clutch release handle. It accepts 5/16-inch or 8mm marine-grade chain spliced to 5/8-inch rope and can also operate with an all-chain rode.

Specifications

Chain - Diameter (Inches)5/16"
FreefallYes
Rope Diameter (Inches)5/8"
Vertical/HorizontalHorizontal
BrandMaxwell
Manufacturer part #HRC10812V
UPC1000000002683
Boxed dimensions19 x 17 x 12 in
Shipping weight56.0 lb
Country of originNZ
