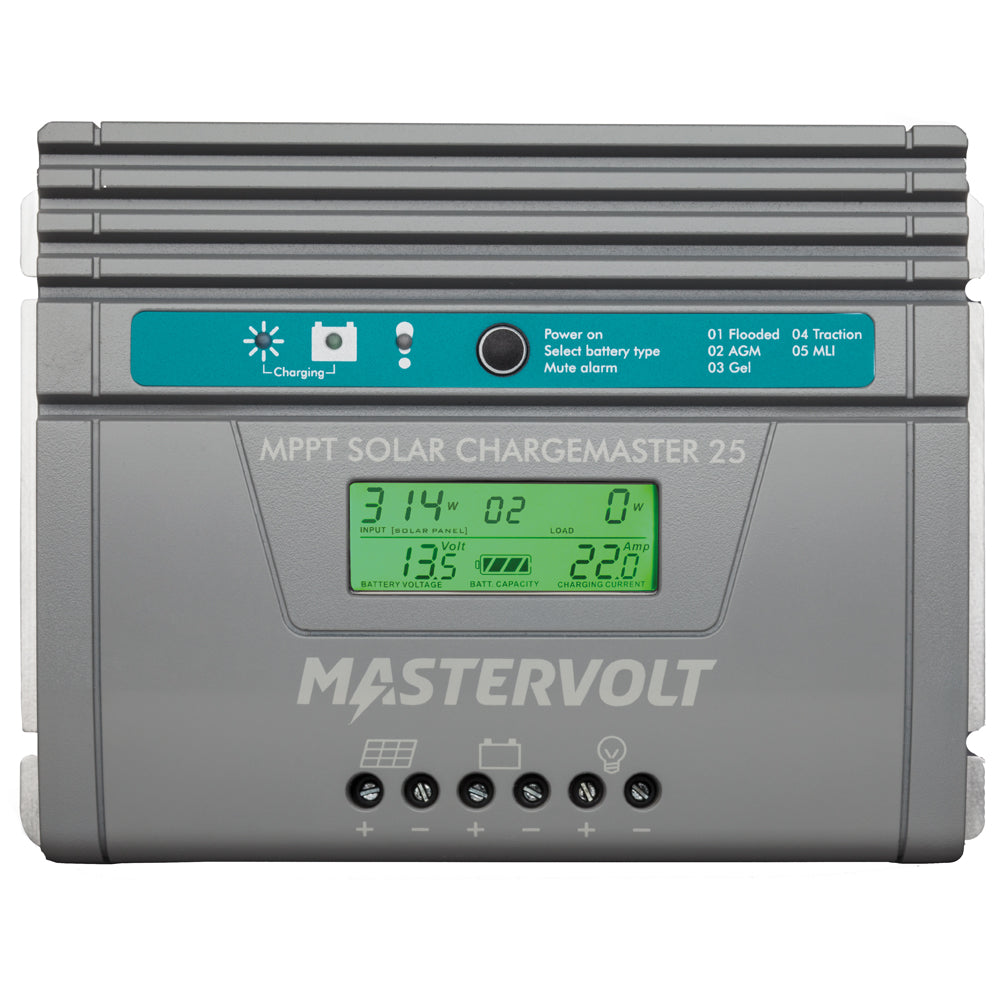

Mastervolt SCM25 MPPT Solar ChargeMaster

Manage solar battery charging in a small or medium system with the Mastervolt SCM25 MPPT Solar ChargeMaster. It supports solar arrays from 200 to 700 Wp and provides selectable charging profiles for all battery types, including Mastervolt Lithium Ion.

Key features

• Maximum Power Point Tracking enables charging up to 30% faster than PWM regulators using the same number of panels.
• Support for series-connected panels can reduce cable length, installation time and solar cable power losses.
• Button-selected charging profiles and automatic voltage detection simplify setup.
• A large, bright display makes operating information easy to read, while an audible signal alerts you to malfunctions.
• Built-in protection addresses overload, high or low battery voltage, overheating, short circuits and reverse polarity.
• A battery temperature sensor supports battery longevity, and the IP23 casing suits humid conditions.

Specifications

• Brand: Mastervolt
• Model: SCM25 MPPT Solar ChargeMaster
• Regulator technology: Maximum Power Point Tracking (MPPT)
• Solar panel configuration capacity: 200–700 Wp
• Battery voltage detection: Automatic 12/24 V
• Supported panel cell counts: 36, 60 and 72
• Battery compatibility: All battery types, including Mastervolt Lithium Ion
• Charging profiles: Pre-programmed and selectable
• Output: Switchable
• Enclosure protection: IP23
• Malfunction alert: Audible signal
