• Mastervolt Mac Plus 12/24-30 + CZone
  • 102661
  • 102661
1 3

Mastervolt

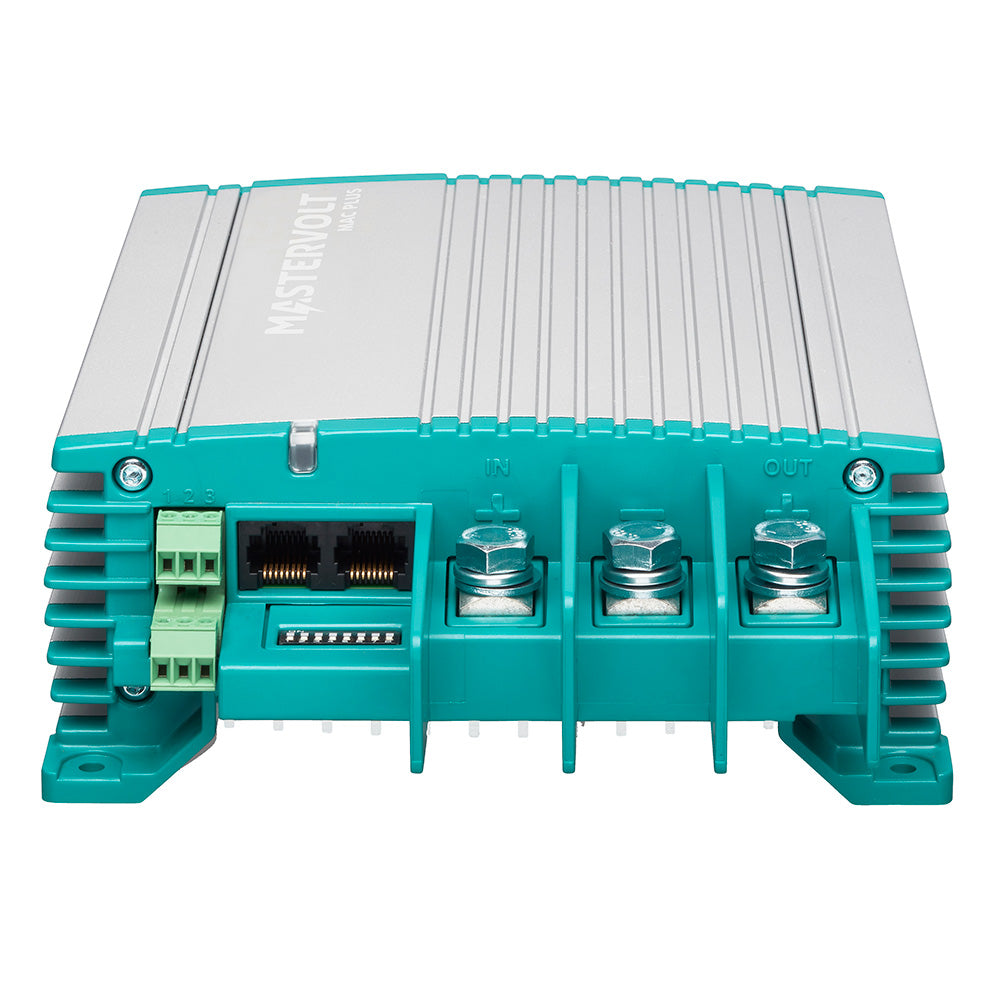

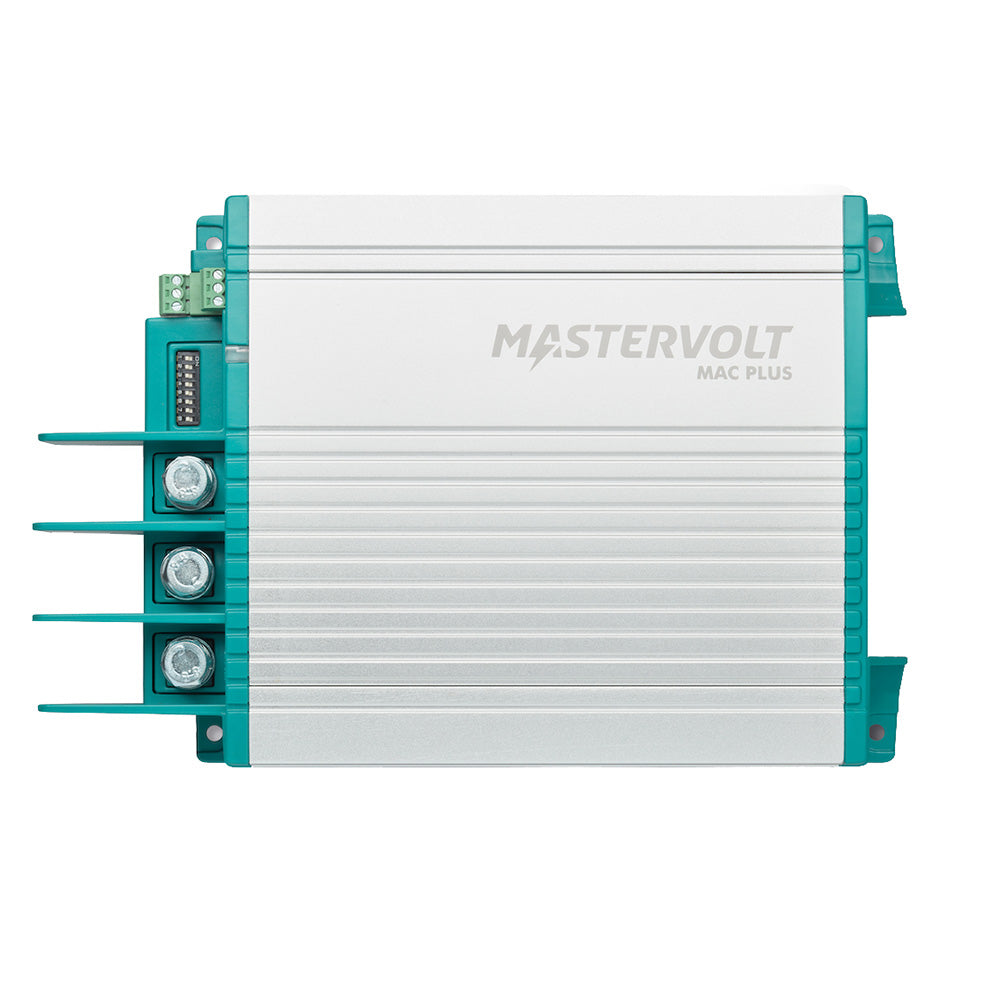

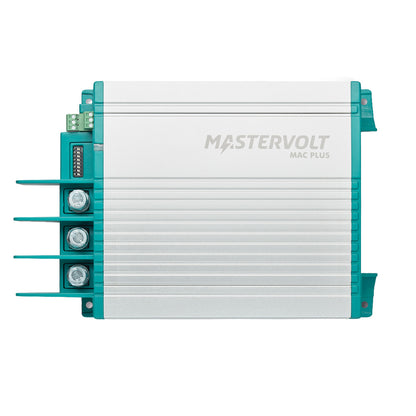

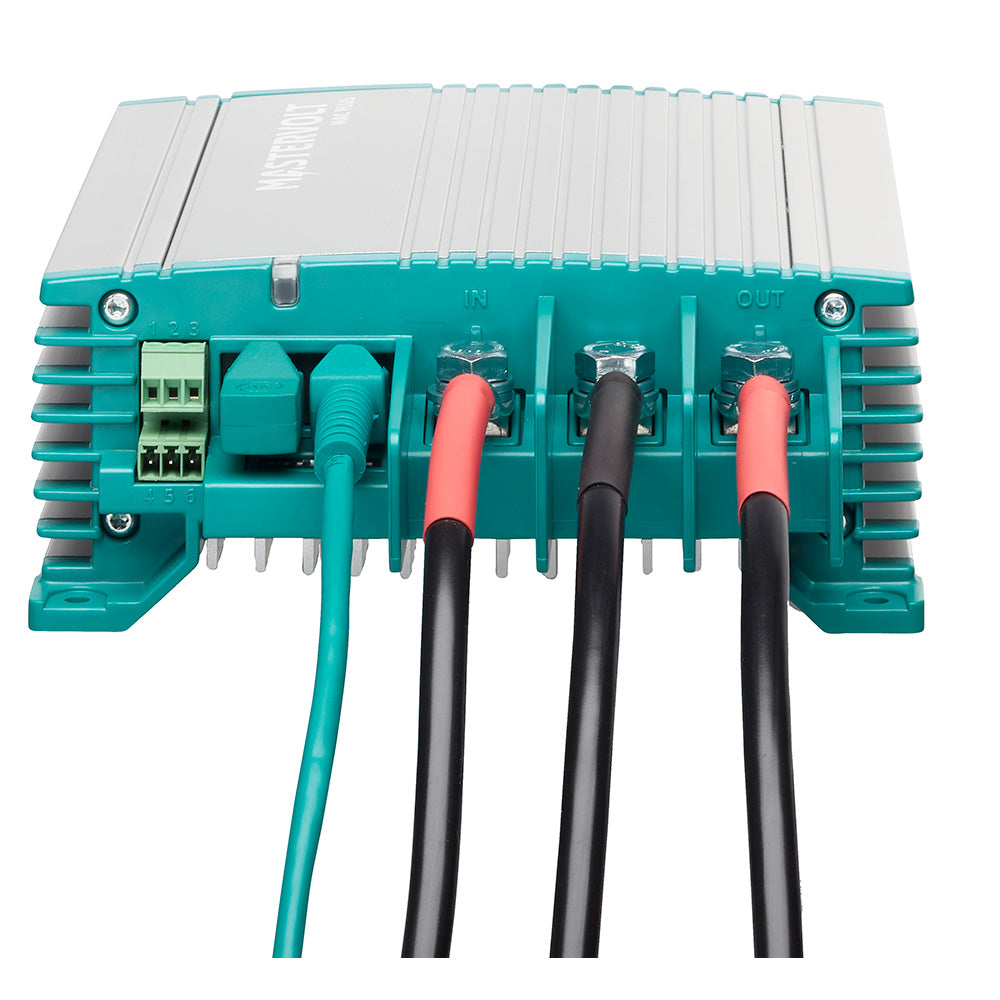

Mastervolt Mac Plus 12/24-30 + CZone

Mastervolt Mac Plus 12/24-30 + CZone

OM-MASTERVOLT-MACPLUS12-81205305

$486.47
$709.99 $486.47
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

12vCharger Input - Voltage
30aCharger Output - Amps
20-30vCharger Output Voltage

The Mastervolt Mac Plus 12/24-30 + CZone is a DC-DC charger for service battery charging on board. It is intended for systems affected by smart alternators or start/stop charging behavior, while engine run detection helps protect the starter battery from being drained.

  • Product type: DC-DC charger
  • Model: Mac Plus 12/24-30 + CZone
  • Charging: Uses Mastervolt 3-step+ charge algorithm
  • Battery support: Suitable for flooded, Gel, AGM, and Li-Ion batteries, including LiFePO4
  • Battery condition: Can charge fully depleted batteries
  • Starter battery protection: Engine run detection prevents starter battery drain
  • Alternator support: Adjustable current limits for Euro 5/6 requirements
  • Configuration: Up to ten units can be used in parallel for over 100 amperes
  • Operation: Fanless design for silent running
  • Housing: Aluminum housing
  • Charging control: Battery temperature-optimized charging
  • Voltage control: Analog voltage sense ports compensate for voltage drops
  • System integration: Compatible with CZone, NMEA 2000, and MasterBus
  • Setup options: Configurable with MasterAdjust, the CZone configuration tool, or on-board DIP switches
  • Electrical role: Provides voltage stabilization for sensitive equipment
  • Technology: Uses high-frequency technology with microprocessors and MOSFETs

Specifications

Charger Input - Voltage12v
Charger Output - Amps30a
Charger Output Voltage20-30v
BrandMastervolt
Manufacturer part #81205305
UPC816882023507
Boxed dimensions15 x 9 x 4 in
Shipping weight5.55 lb
Country of originCHINA
