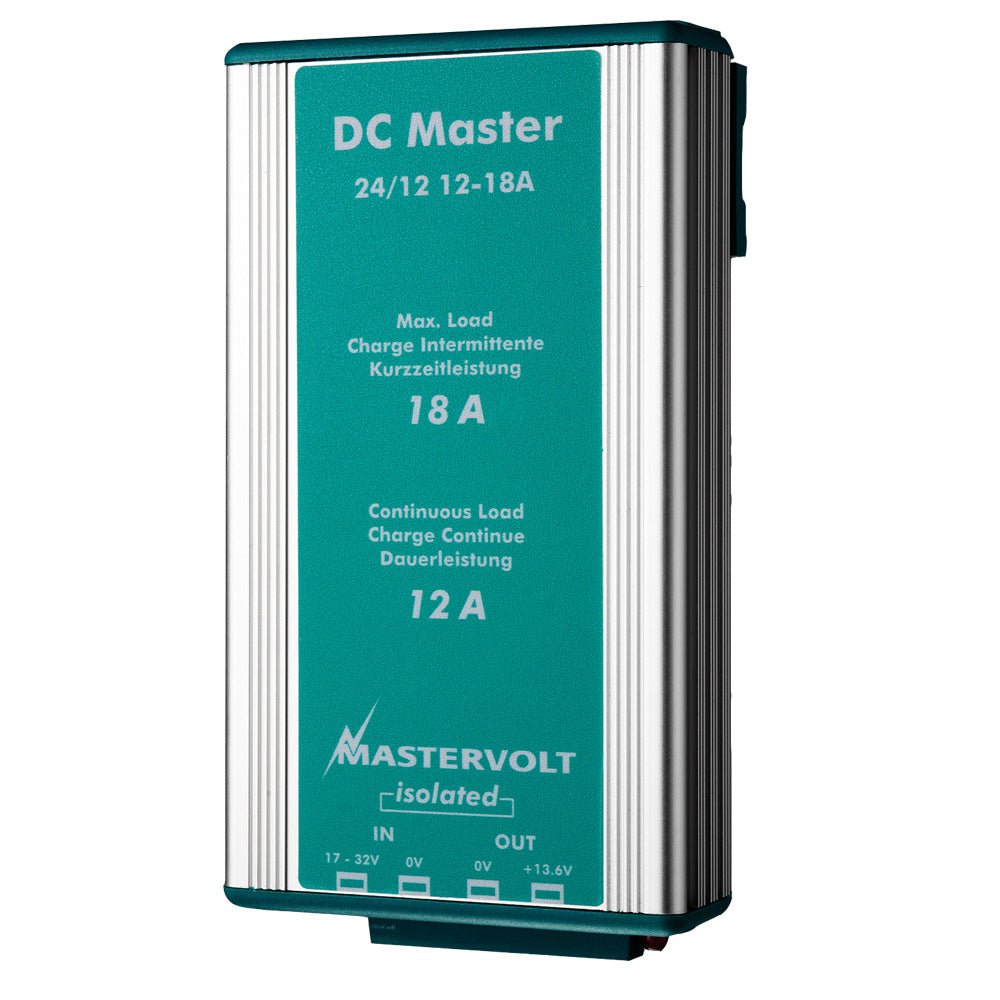

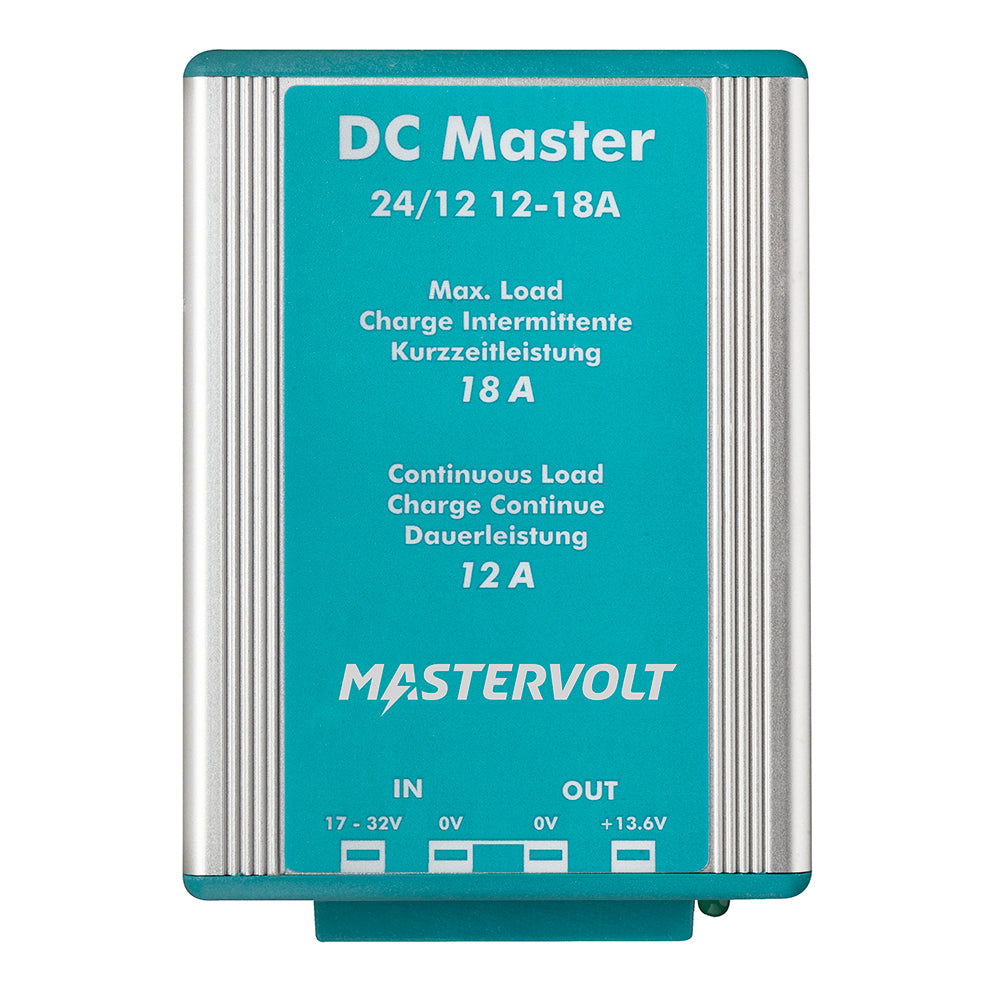

Mastervolt DC Master 24V to 12V Converter - 12 Amp

Supply 12V onboard equipment from a 24V system with the Mastervolt DC Master converter. Suited to recreational and semi-professional use, it provides stabilized output with 12 amps available continuously and extra current for brief demands.

Key features

• Converts a 24V supply for equipment requiring 12V power.
• Delivers 12 amps continuously for ongoing electrical loads.
• Provides up to 18 amps for two-minute intervals to handle short increases in demand.
• Stabilized output helps maintain a steady supply to connected equipment.
• Electronics limit unnecessary heat generation during operation.
• Supplied mounting hardware helps simplify installation.

Specifications

• Model: DC Master 24V to 12V, 12 Amp
• Nominal input voltage: 24 V
• Input voltage range: 20-32 V DC
• Maximum input voltage: 35 V
• Nominal output voltage: 13.6 V
• Continuous output current: 12 A
• Maximum output current: 18 A for two-minute intervals
• Nominal output power: 164 W
• Maximum output power: 245 W
• Galvanic isolation: No
• Stabilized output: Yes
• Dimensions, H x W x D: 127 x 87 x 50 mm; 5.0 x 3.4 x 2.0 inches
• Weight: 0.405 kg; 0.9 lb
• Compliance: CE
• DC consumption: < 15 mA
• Connections: Fast-on
• Ambient temperature range: -25 °C to 80 °C; derating above 30 °C
• Cooling: Natural cooling
• Protection degree: IP53

Good to know

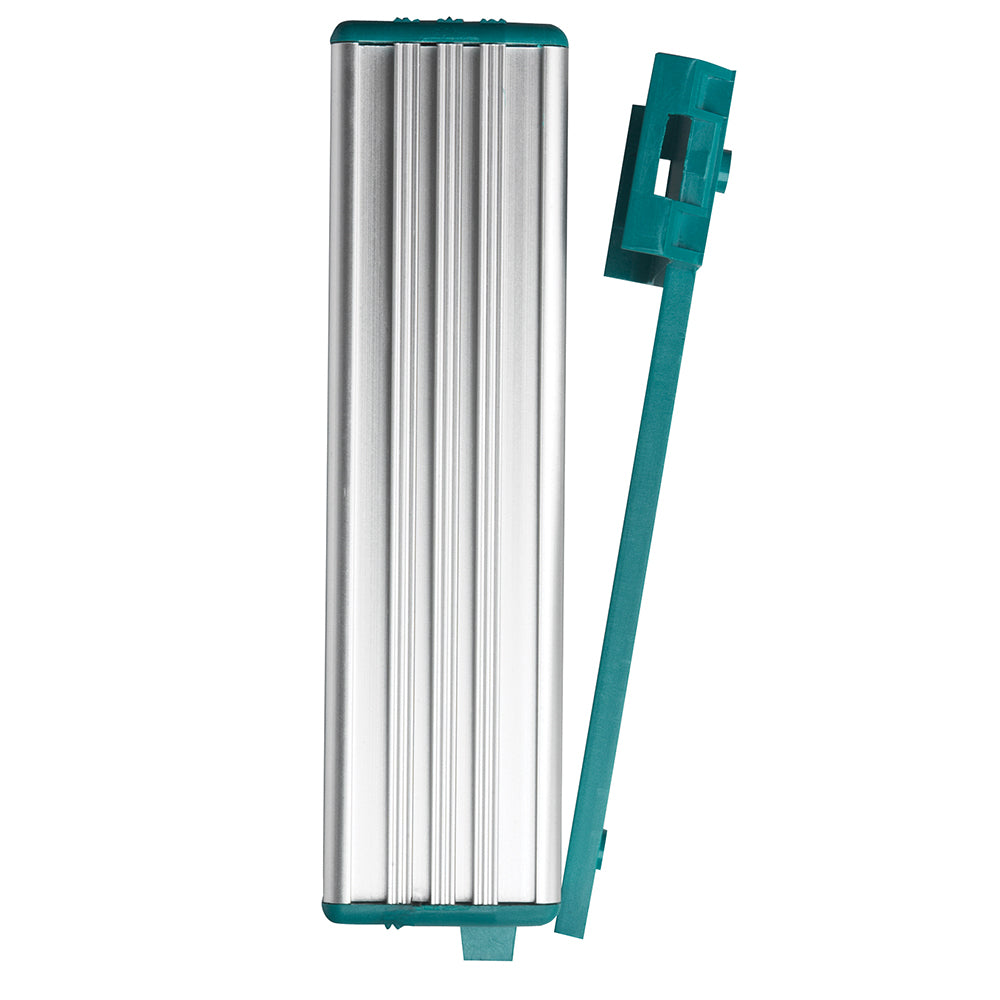

The mounting bracket, screws and fasteners are included.
