Mastervolt ChargeMaster Plus 24V, 60A, 3-Bank, NMEA2000 - CZone

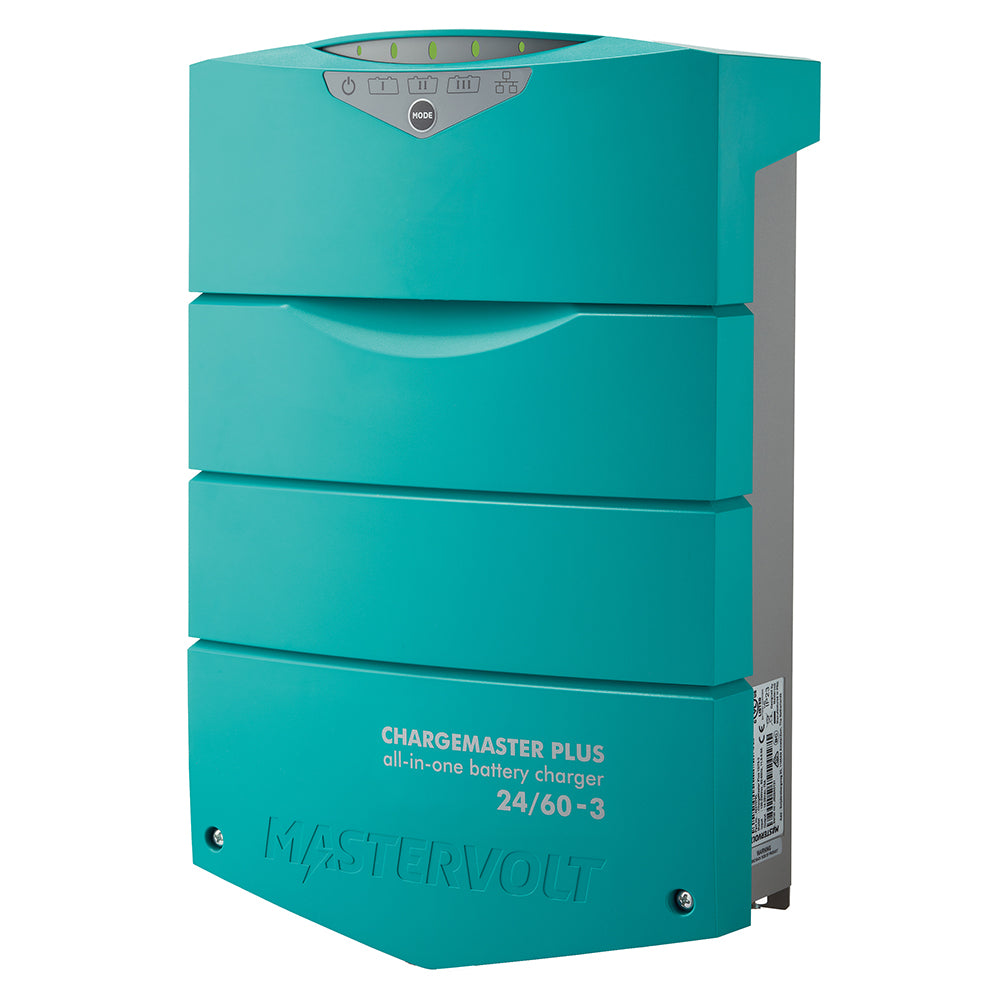

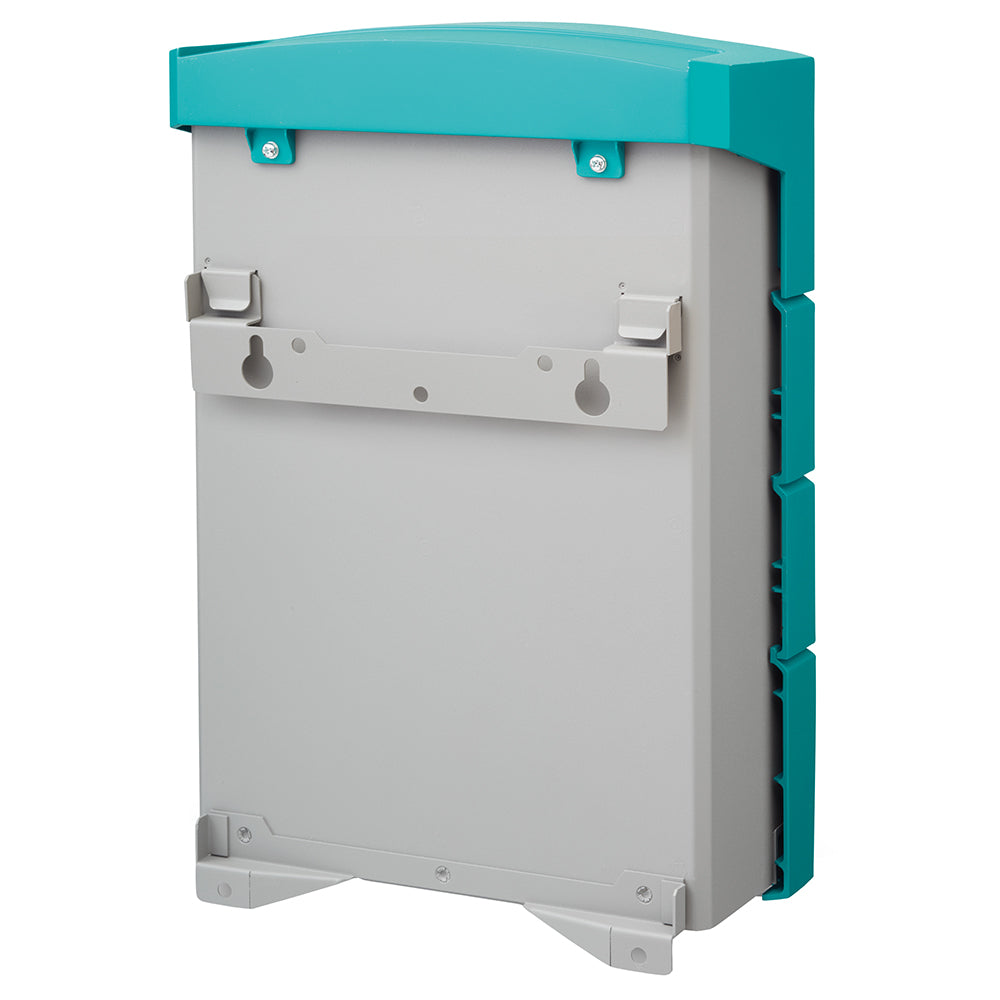

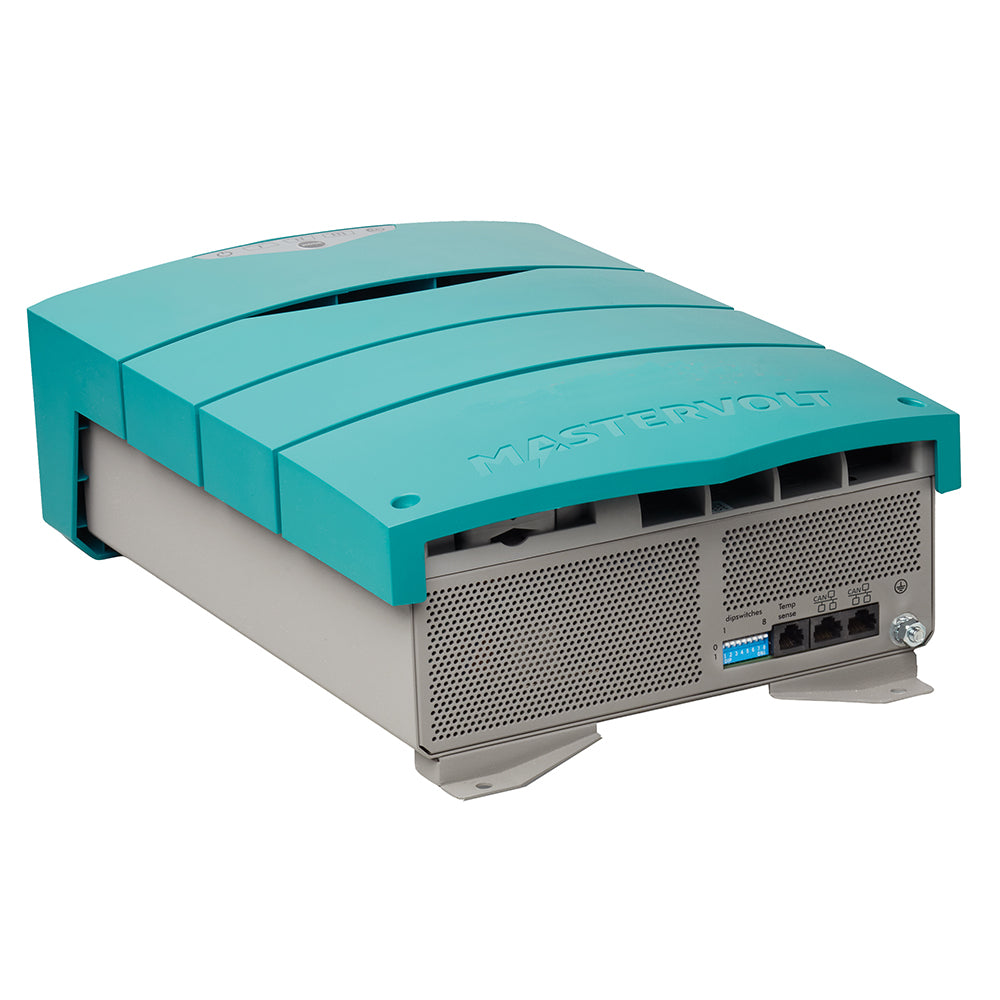

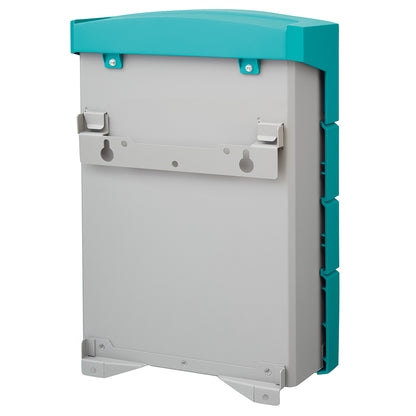

The Mastervolt ChargeMaster Plus 24/60-3 CZone is a 24V, 60A battery charger built for marine and mobile electrical systems with up to three battery banks. It combines charging and system-management functions in one device to reduce the need for separate auxiliary chargers, battery isolators, or a VSR.

It supports MasterBus, CZone, and NMEA 2000 communication without additional interfaces, and can also be configured through MasterBus or by using a CZone configuration file. The charger uses Mastervolt's 3-step+ charging method and includes features for multi-bank charging, depleted-battery recovery, and alternator-based charging while underway.

• Model: ChargeMaster Plus 24/60-3 CZone
• Output: 24V, 60A
• Battery banks: 3-bank charger
• Charges combinations of two or three batteries
• Uses 3-step+ charge method
• Revival mode can automatically recover fully depleted batteries
• Multi-voltage function can charge a 12V starter battery in a 24V system without additional components
• Priority Charge directs available power to the lowest battery
• Smart Input can charge all three batteries from one alternator
• Handles worldwide AC voltages and frequencies
• Integrated VSR helps route alternator energy to the batteries
• Communication support: MasterBus, CZone, and NMEA 2000
• Other communication standards such as ModBus, CANopen, and LinBus are supported through additional interfaces
• Compliance listed: CE, ABYC, UL, SAE, CEC/DOE, and RCM/C-Tick
