• Mastervolt ChargeMaster Plus 12/75-3 CZone - 3-Bank
  • 83241
1 2

Mastervolt

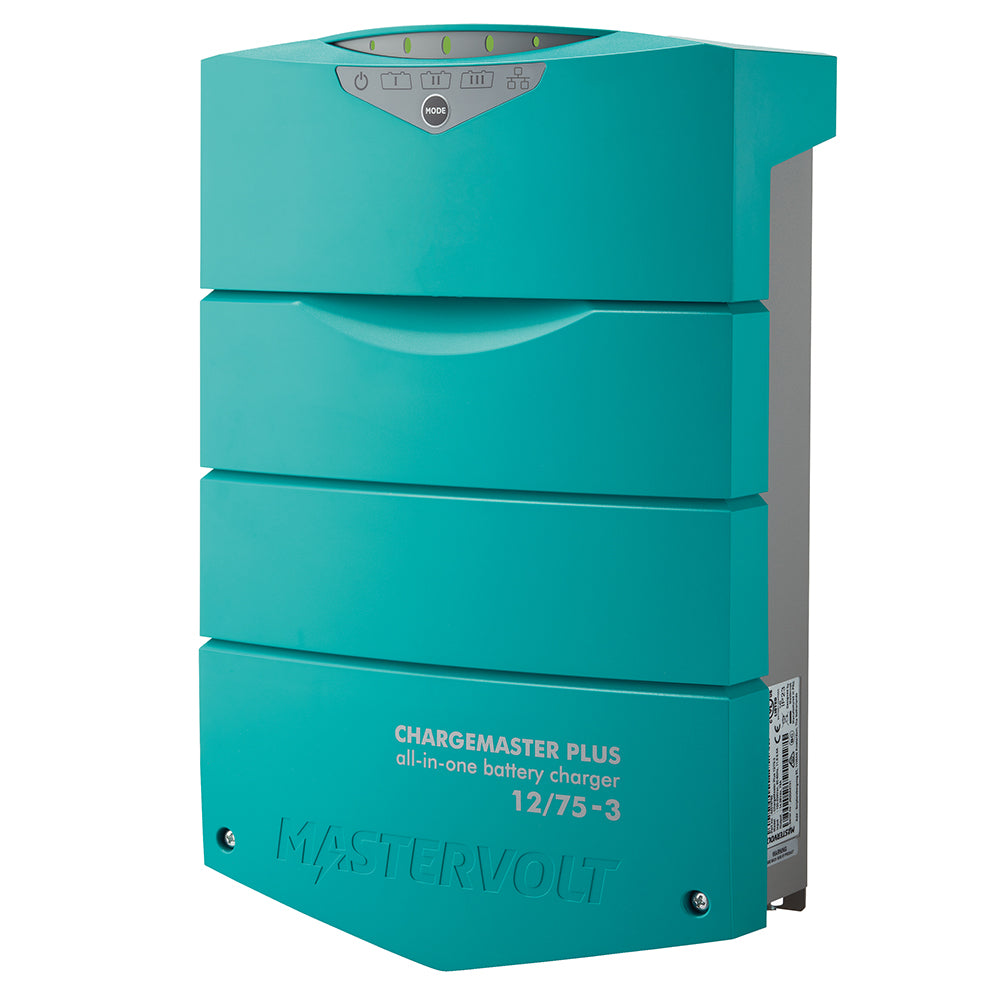

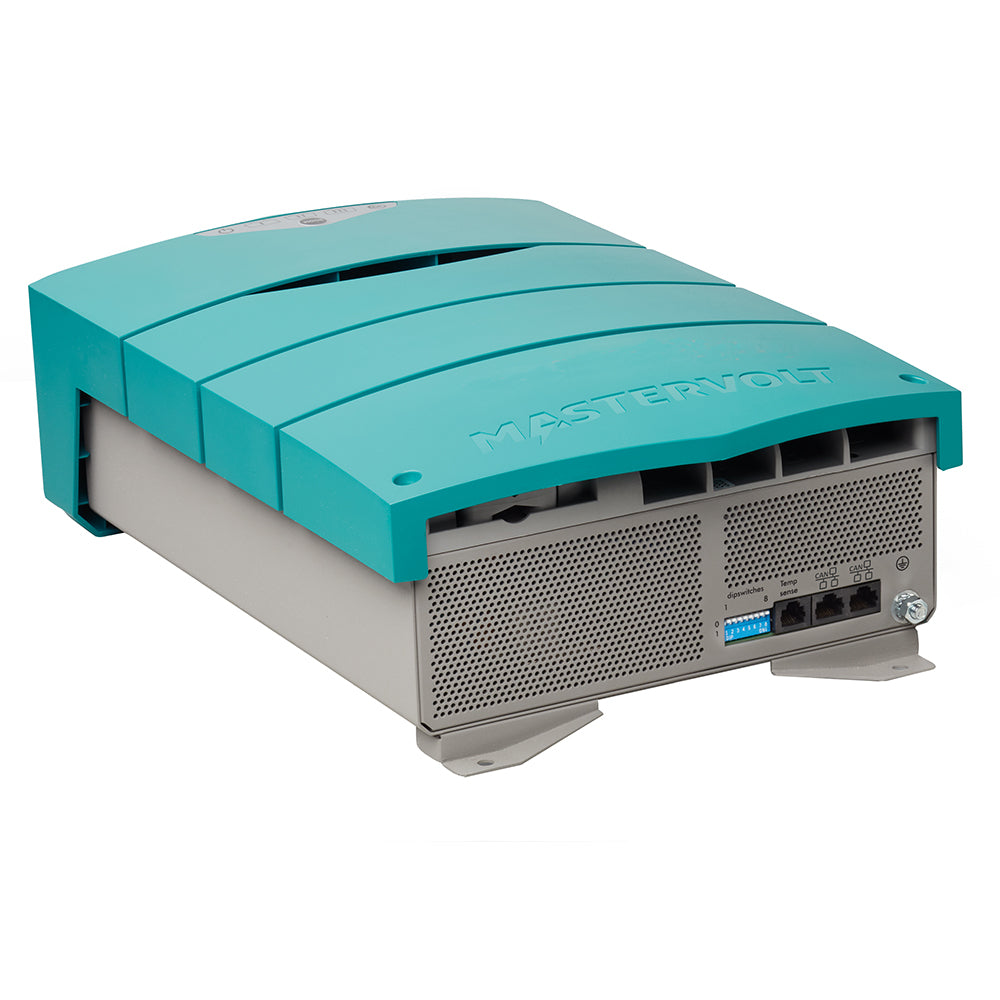

Mastervolt ChargeMaster Plus 12/75-3 CZone - 3-Bank

Mastervolt ChargeMaster Plus 12/75-3 CZone - 3-Bank

OM-MASTERVOLT-CHARGEMASTERPL-44310755

$1,880.99
$1,880.99
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Mastervolt Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

NoPortable
3Charging Banks
12vCharger Output Voltage
75aCharger Output - Amps
120/230vCharger Input - Voltage

The Mastervolt ChargeMaster Plus 12/75-3 CZone is a 3-bank battery charger for marine and mobile electrical systems. It combines charging and power-management functions in one device, reducing the need for separate auxiliary chargers, battery isolators, or VSR components.

This charger supports multiple battery chemistries and battery bank sizes, with communication options for integrated power systems. It is built for worldwide AC input and can charge up to three batteries.

  • Model: ChargeMaster Plus 12/75-3 CZone
  • Battery banks: 3-bank
  • Charging method: 3-step+ charge method
  • Battery support: Lithium Ion, Gel, and AGM
  • Functions: Multicharger with two outputs, one in/output, DC-DC converter, current limiter, and VSR
  • Input range: 80-275V AC, 35-70 Hz
  • Output detail: 20% more output at 14.4V and 80% charging power at 60 °C
  • Communication: MasterBus, CZone, and NMEA
  • Additional communication standards: FireCan and CANopen
  • Features: Revival mode, Priority Charge, Smart Input, Safe Charge, and power supply operation
  • Compliance: CE, ABYC, UL, SAE, CEC, and RCM/C-Tick compliant

Specifications

PortableNo
Charging Banks3
Charger Output Voltage12v
Charger Output - Amps75a
Charger Input - Voltage120/230v
BrandMastervolt
Manufacturer part #44310755
UPC816882022555
Boxed dimensions17 x 12 x 7 in
Shipping weight16.6 lb
Country of originCHINA

Manuals & documents

Owner's manualPDF ↓
