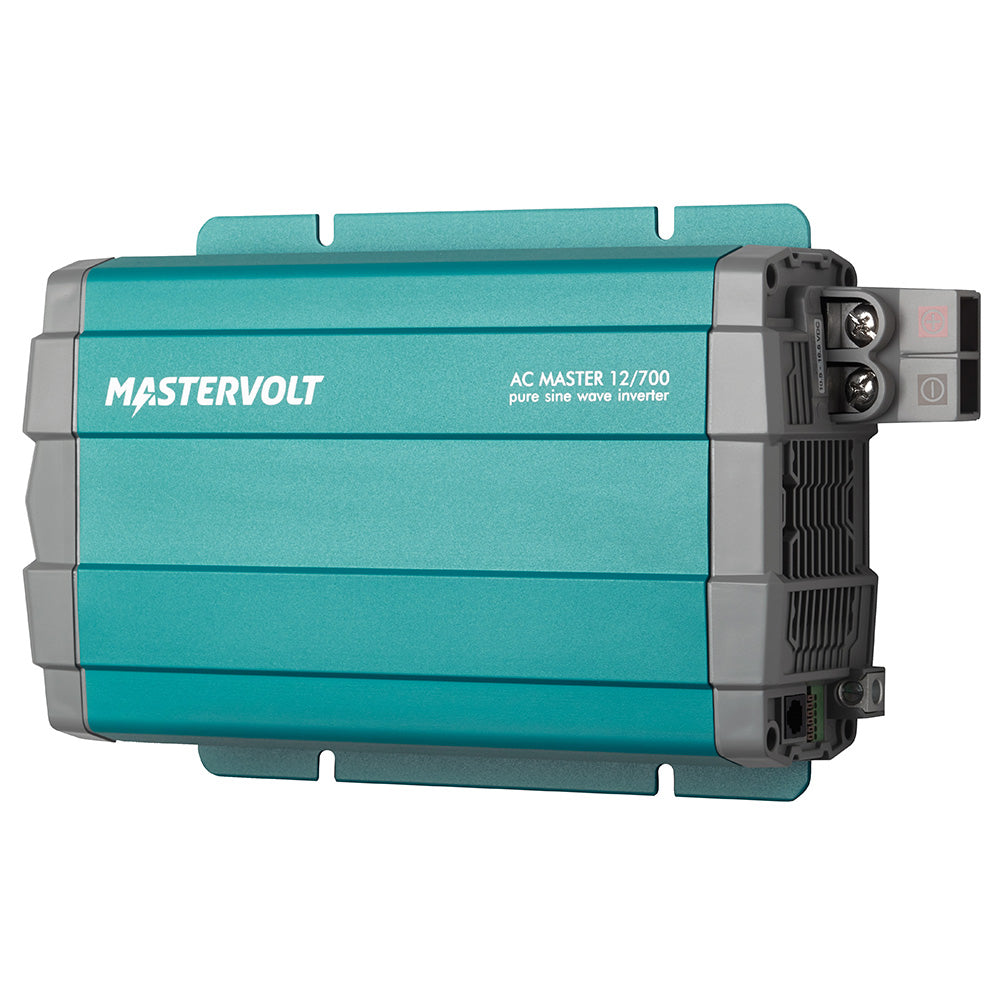

Mastervolt AC Master 12/700 (120V) Inverter

Mastervolt AC Master 12/700 (120V) Inverter

OM-MASTERVOLT-ACMASTER12-28510700

$345.86
$481.99 $345.86
Sale
Shipping calculated at checkout.

Low stock: 1 left
Authorized Mastervolt Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

The Mastervolt AC Master 12/700 is a 120V pure sine wave inverter for recreational, mobile, and semi-professional power needs. It converts 12V battery power into selectable AC output for equipment such as lighting, appliances, electric cooking devices, and power tools when grid power is unavailable or inconsistent.

  • Output voltage: 100/110/115/120 V, 50/60 Hz selectable
  • Output waveform: True sine wave
  • Nominal battery voltage: 12V
  • Recommended battery capacity: At least 100 Ah
  • Continuous power: 700 W at 25 degrees C / 77 degrees F, cos phi 1
  • Continuous power: 700 W at 40 degrees C / 104 degrees F, cos phi 1
  • Peak load: Less than 810 W for 1 minute
  • Peak load: Less than 1230 W for 1 second

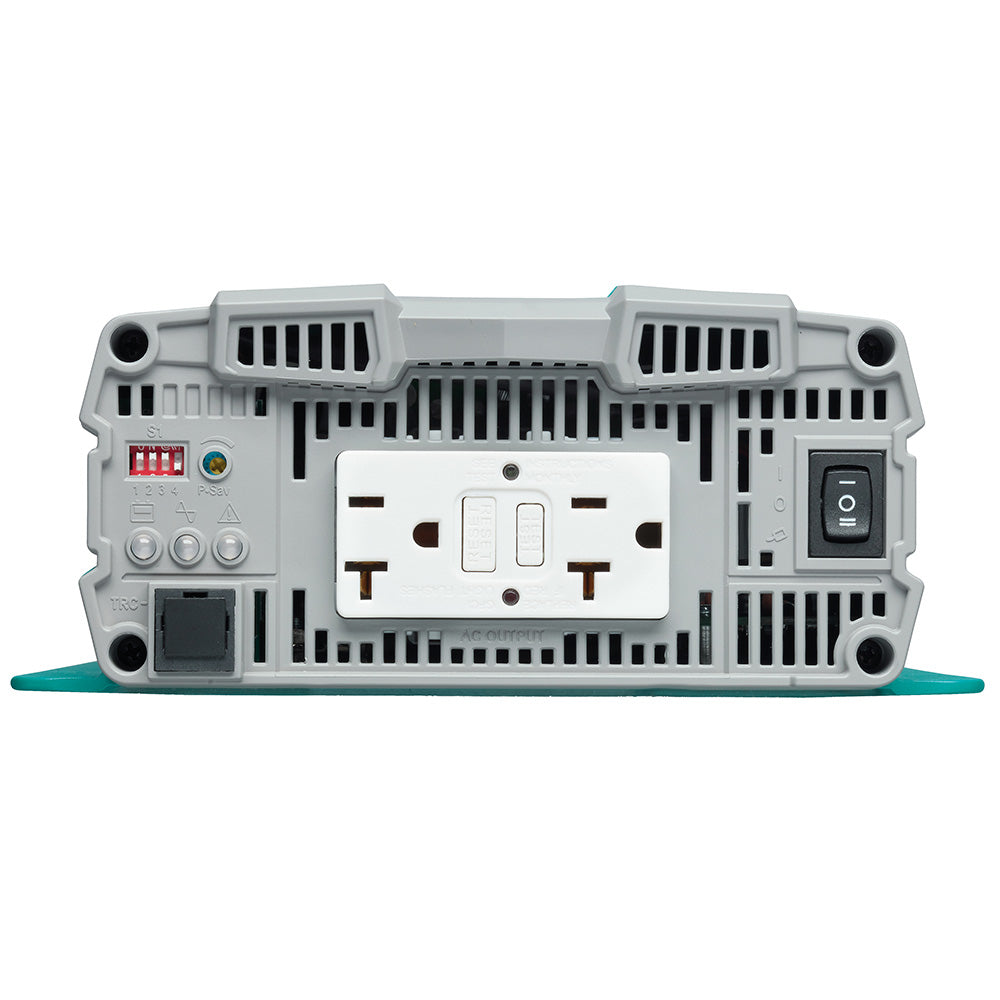

  • AC connection: North American socket with GFCI
  • Galvanic isolation: Yes
  • Efficiency: 91%
  • Display: LED indication for battery voltage, load level, and status
  • Alarm: Potential-free alarm contact
  • Dimensions: 200 x 330 x 83 mm / 7.9 x 13.0 x 3.3 inches
  • Weight: 2.6 kg / 5.7 lb
  • Protections: Over-temperature, overload, short circuit, high battery voltage, and low battery voltage
  • Compliance: ABYC A31, UL 458, FCC class B

Specifications

BrandMastervolt
Manufacturer part #28510700
UPC816882021305
Boxed dimensions15 x 10 x 6 in
Shipping weight7.55 lb
Country of originTAIWAN
