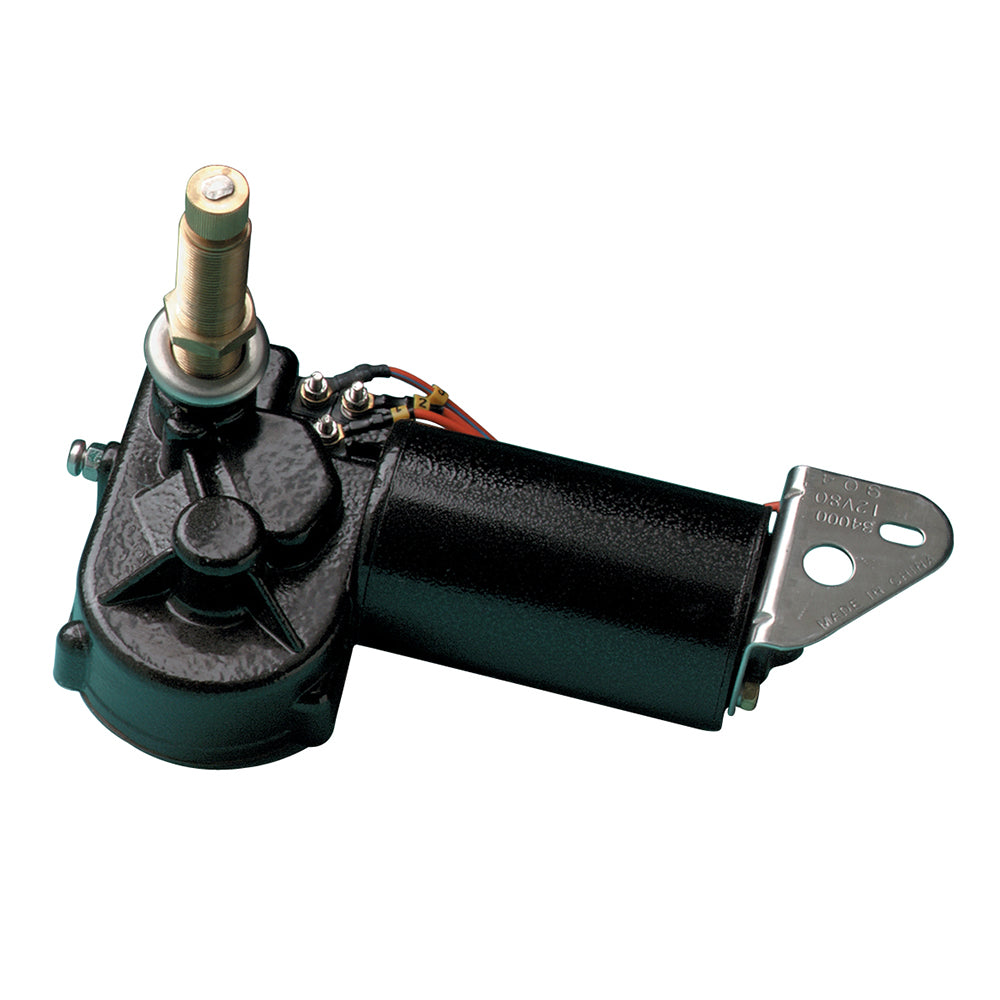

Marinco Wiper Motor MRV 12V 2.5" Shaft - 80°

The Marinco MRV wiper motor is a 12V marine wiper motor configured with a 2.5 inch shaft and an 80 degree sweep. It is built for helm and windshield installations using compatible Marinco arm and blade combinations where compact mounting and adjustable parking are needed.

• Voltage: 12V
• Shaft: 0.625 inch diameter, 2.5 inch length, including 0.5 inch knurled arm fitting length
• Sweep: factory preset to 80 degrees; adjustable to 45, 60, 80, or 110 degrees
• Arm and blade capacity: powers 22 inch x 22 inch deluxe arm/blade combinations or a 20 inch x 20 inch premier arm/blade combination at sweep settings of 80 degrees or less
• Motor: two-speed motor that can also be operated as one speed
• Drive: right angle drive with solid brass knurled drive nut and brass and stainless steel drive shaft
• Parking: adjustable right or left self-parking with coast-to-park operation
• Housing: corrosion-resistant casing
• Included hardware: stainless steel fasteners, mounting bracket, 5 amp fuse, and fuse holder
• Switch: use with a three-position switch, not included
• Size: 7.625 inch L x 4 inch W x 2 inch D
• Stall torque: 109 in-lbs, 125 kgf/cm, 12.3 Nm
• Stall current: 11.5 to 13.0 amps
• No-load current: 0.5 to 1.2 amps
