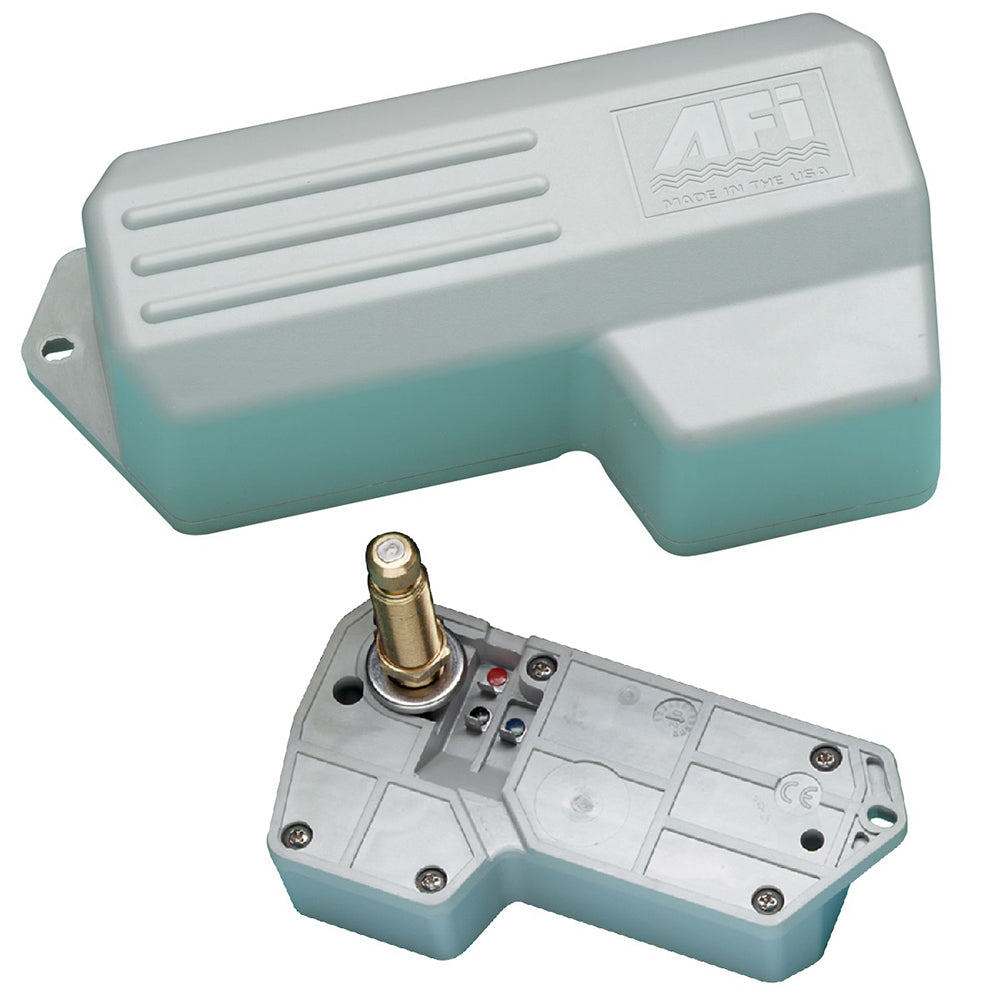

Marinco Wiper Motor 1000 Series - 12V - 2.5" Shaft - 80°

The Marinco 1000 Series wiper motor is a 12 volt waterproof motor for marine windshield wiper installations. This version has a 2.5 in. shaft and an 80 degree factory preset sweep, with adjustment options for matching the wiper arc to the window.

• Series: Marinco 1000
• Voltage: 12V
• Shaft length: 2.5 in., including .5 in. knurled arm fitting
• Shaft diameter: 0.625 in. or 16 mm
• Factory preset sweep: 80 degrees
• Adjustable sweep settings: 50 degrees, 65 degrees, 80 degrees, or 110 degrees
• Housing: Fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic
• Drive: Anti-rotation drive shaft with knurled drive shaft and solid brass arm drive nut
• Parking: Coast to park with adjustable right or left self parking
• Retail version includes: 5 amp fuse and holder
• Switch: On/off switch not included
• Circuitry: RF shielded
• Approximate size: 6.625 in. L x 3.375 in. W x 2 in. D
• Weight: 1.75 lbs
• Stall torque: 55 in-lbs, 63 kgf/cm, or 6.2 Nm
• Stall current: 9.8-10.0 amps
• No-load current: 0.8-1.2 amps+
• Arm and blade compatibility: Powers 18 in. Deluxe arm and 18 in. Deluxe blade combinations at sweep sets of 80 degrees or less, or 16 in. Deluxe arm and 16 in. Deluxe blade combinations at a 110 degree sweep set
