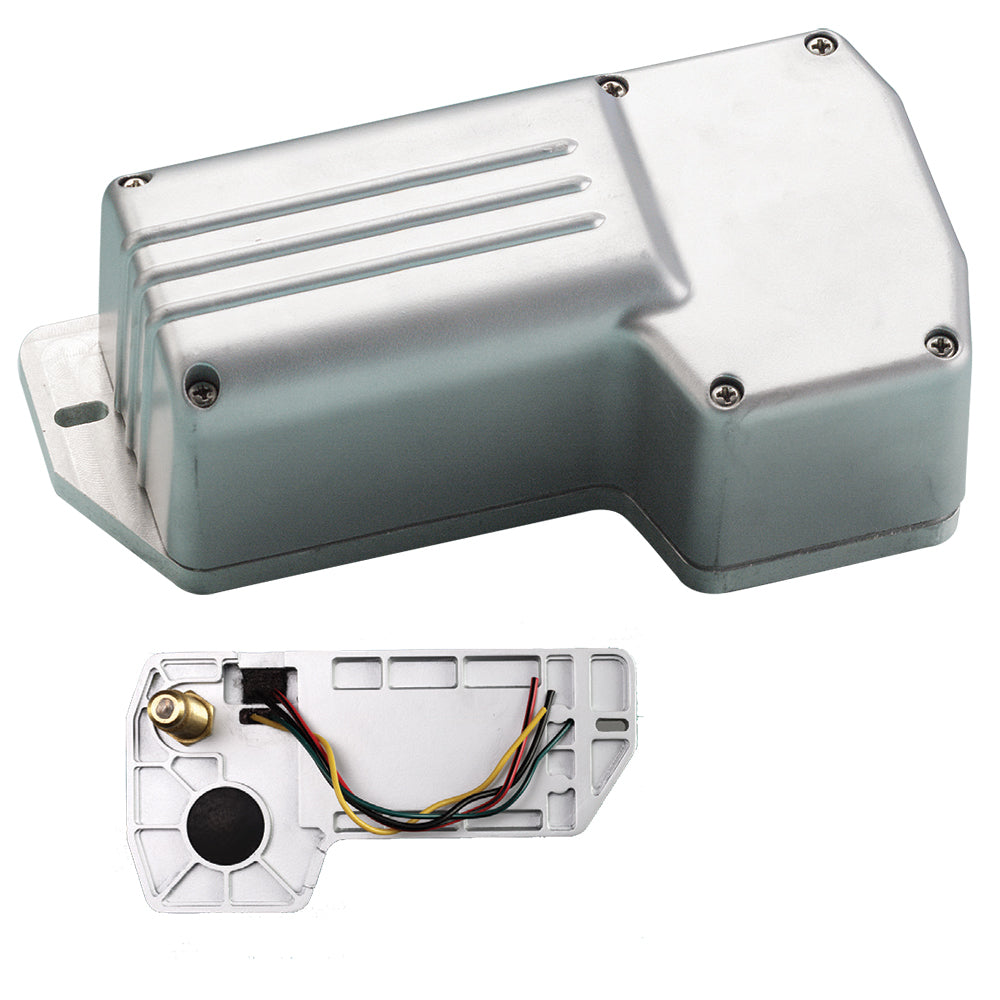

Marinco Waterproof Wiper Motor 12V - 2.5" Shaft - 80° Sweep

This Marinco waterproof wiper motor is a 12V replacement motor for marine windshield wiper systems. The model has a 2.5" shaft and an 80 degree factory-set sweep, with adjustment options for different installations.

• Voltage: 12V
• Shaft length: 2.5", including .5" knurled arm fitting length
• Sweep: 80 degrees factory preset; adjustable to 45 degrees or 60 degrees
• Motor: Two-speed with coast-to-park operation
• Housing: Fully sealed powder coated aluminum waterproof base and housing
• Wiring: Sealed 6" 16 AWG wire leads
• Parking: Adjustable right or left self-parking
• Shaft diameter: 0.625" (16 mm)
• Drive hardware: Chrome plated solid brass knurled drive nut with brass and stainless steel driveshaft
• Arm and blade capacity: Powers a 22" Deluxe arm and 22" Deluxe blade combination or a 20" Premier arm and 20" Premier blade combination
• Retail version includes: 5 amp fuse and holder; operating switch not included
• Approximate size: 7.75" L x 4" W x 2.75" D
• Stall torque: 109 in-lbs (125 kgf/cm; 12.3 Nm)
• Stall current: 11.5-13.0 amps
• No-load current: 0.5-1.2 amps
• Circuitry: RF shielded
• Replacement: Replaces AFI 2000 motor
