Maretron Mid Double-Ended Cordset - 3 Meter - Gray

Maretron Mid Double-Ended Cordset - 3 Meter - Gray

OM-MARETRON-MIDDOUBLEENDED-DMDG1DF030

$62.13
$62.13
Shipping calculated at checkout.

Low stock: 1 left
Authorized Maretron Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Male-FemaleConnection Gender
NMEA 2000Data Interface
3mCable Length (Meters)
Backbone/Drop CablesNMEA 2000 Connectors

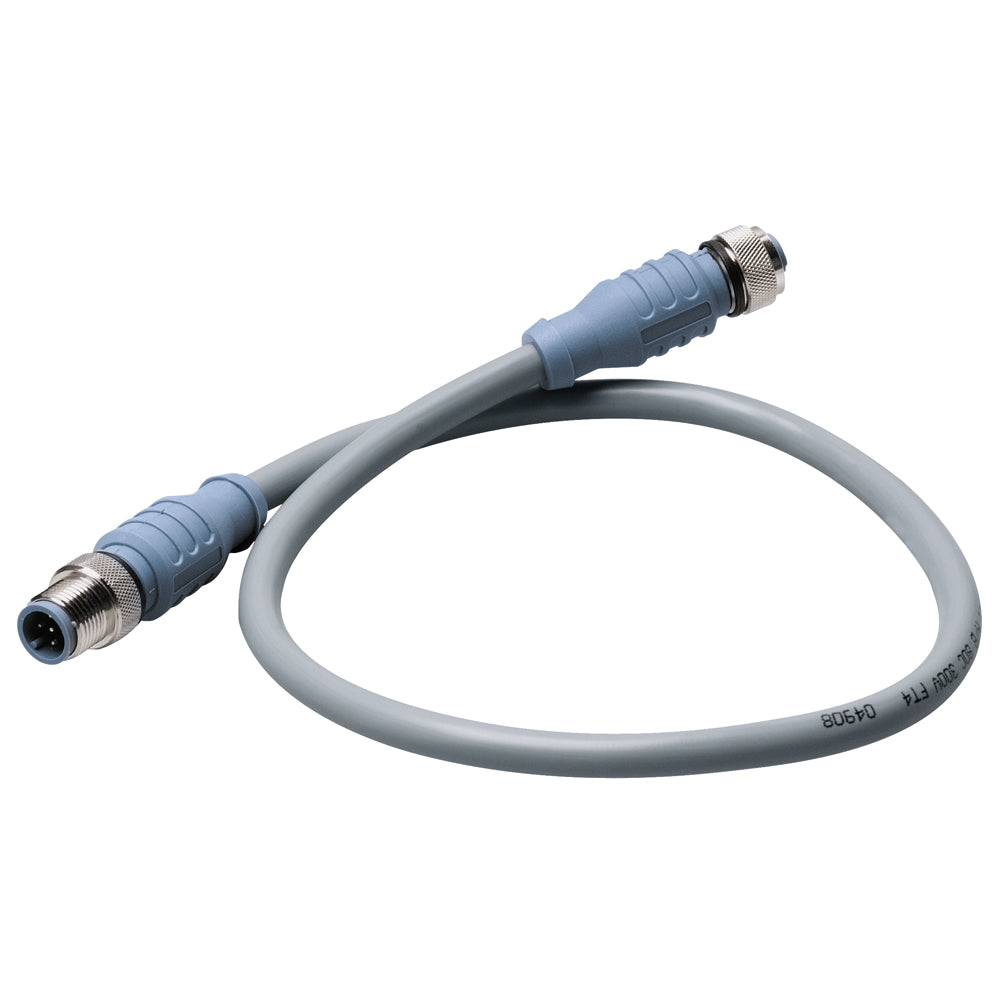

This Maretron Mid double-ended cordset is a 3 meter gray cable for marine network and instrument installations. It uses molded thermoplastic PUR connector components, shielded conductors, and marine-rated approvals for NMEA 2000 use.

  • Brand: Maretron
  • Product type: Mid double-ended cordset
  • Length: 3 meters
  • Color: Gray cable with blue-gray connector components
  • Contact carrier: Thermoplastic PUR, blue-gray
  • Molded body: Thermoplastic PUR, blue-gray
  • Contacts: Brass with gold plating
  • Coupling nut: Brass with nickel plating
  • Connector outside diameter: 0.59 inch
  • Current rating: 4.0 amps
  • Voltage rating: 250 V
  • Cable outer jacket: PVC, gray
  • Conductor insulation: PE for data pair, PVC for power pair
  • Conductors: 2x16 AWG, data 2x20 AWG, 20 AWG drain wire
  • Shielding: Overall alum/polyester foil, power pair foil, and data pair foil
  • Protection class: IEC IP68, NEMA 1, 3, 4, 6P
  • Temperature rating: -40 degrees C to 80 degrees C, -40 degrees F to 176 degrees F
  • Approvals: UL PLTC 75 degrees C sunlight resistant E90625, AWM 80 degrees C 300V
  • CSA: CMX-OUTDOOR-CMG LL54185 75 degrees C, AWM I/II A/B 80 degrees C 300V FT4
  • NMEA: NMEA 2000 approved
  • IEC: IEC 61162-3

Specifications

Connection GenderMale-Female
Data InterfaceNMEA 2000
Cable Length (Meters)3m
NMEA 2000 ConnectorsBackbone/Drop Cables
BrandMaretron
Manufacturer part #DM-DG1-DF-03.0
UPC873804001791
Boxed dimensions8 x 6 x 1 in
Shipping weight0.8 lb
Country of originMEXICO
