• Maretron Micro Double-Ended Cordset - 8M
1 1

Maretron

Maretron Micro Double-Ended Cordset - 8M

Maretron Micro Double-Ended Cordset - 8M

OM-MARETRON-MICRODOUBLEEND-CMCG1CF080

$74.50
$75.00 $74.50
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Male-FemaleConnection Gender
NMEA 2000Data Interface
8mCable Length (Meters)
Backbone/Drop CablesNMEA 2000 Connectors

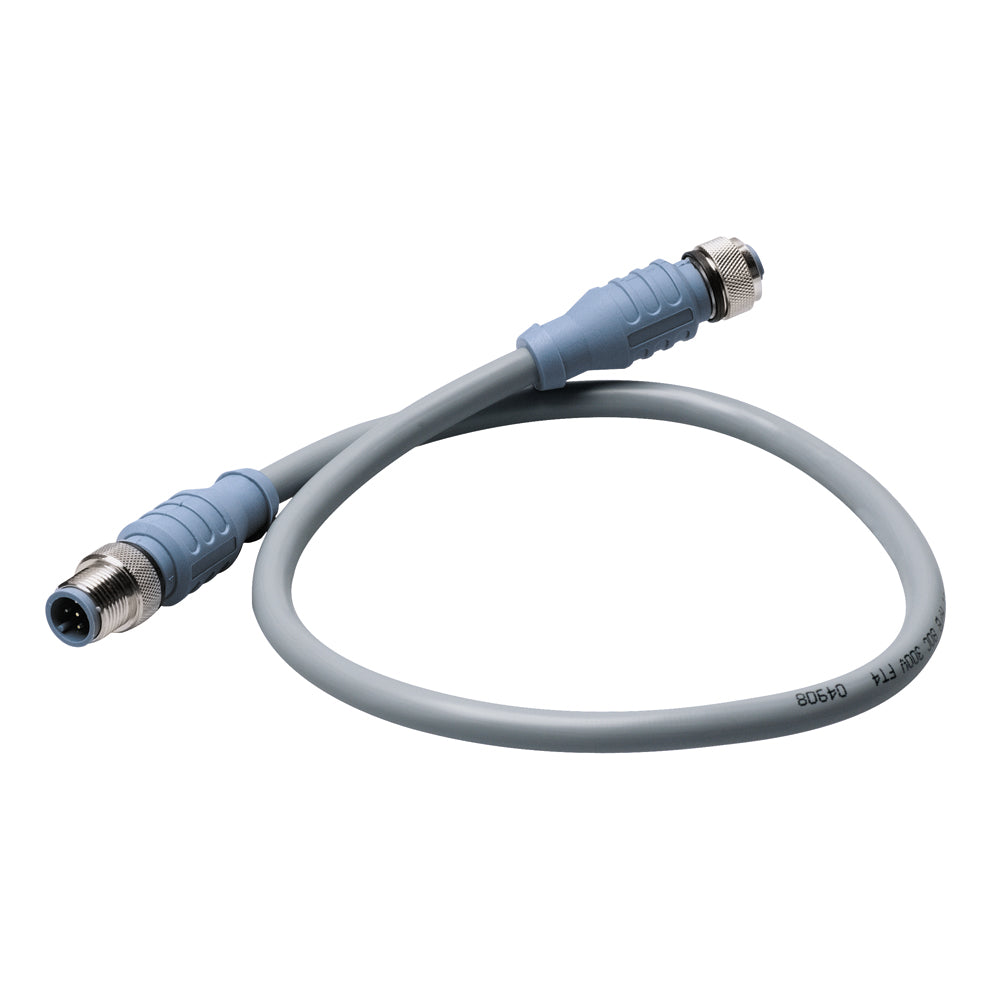

This Maretron Micro double-ended cordset provides an 8 meter cable connection for marine network installations. It uses blue-gray thermoplastic PUR connector components with a gray PVC cable jacket and is NMEA 2000 approved.

  • Length: 8M
  • Contact carrier: Thermoplastic PUR, blue-gray
  • Molded body: Thermoplastic PUR, blue-gray
  • Contacts: Brass with gold plating
  • Coupling nut: Brass with nickel plating
  • Connector outside diameter: 0.59
  • Current rating: 4.0 Amps
  • Voltage rating: 250 V
  • Cable outer jacket: PVC, gray
  • Conductors: 4X22 AWG plus 22 AWG drain wire
  • Conductor insulation: HDPE for data pair, SRPVC for power pair
  • Shielding: Overall foil, power pair foil, and data pair foil
  • Environmental protection: IEC IP68; NEMA 1, 3, 4, 6P
  • Temperature rating: -40 deg C to 80 deg C (-40 deg F to 176 deg F)
  • Approvals: UL PLTC 75 deg C Sunlight Resistant E90625; UL AWM 80 deg C 300V; CSA CMX-OUTDOOR-CMG LL54185 75 deg C; CSA AWM I/II A/B 80C 300V FT4; NMEA 2000 Approved

Specifications

Connection GenderMale-Female
Data InterfaceNMEA 2000
Cable Length (Meters)8m
NMEA 2000 ConnectorsBackbone/Drop Cables
BrandMaretron
Manufacturer part #CM-CG1-CF-08.0
UPC873804001586
Boxed dimensions8 x 7 x 1 in
Shipping weight1.1 lb
Country of originMX
