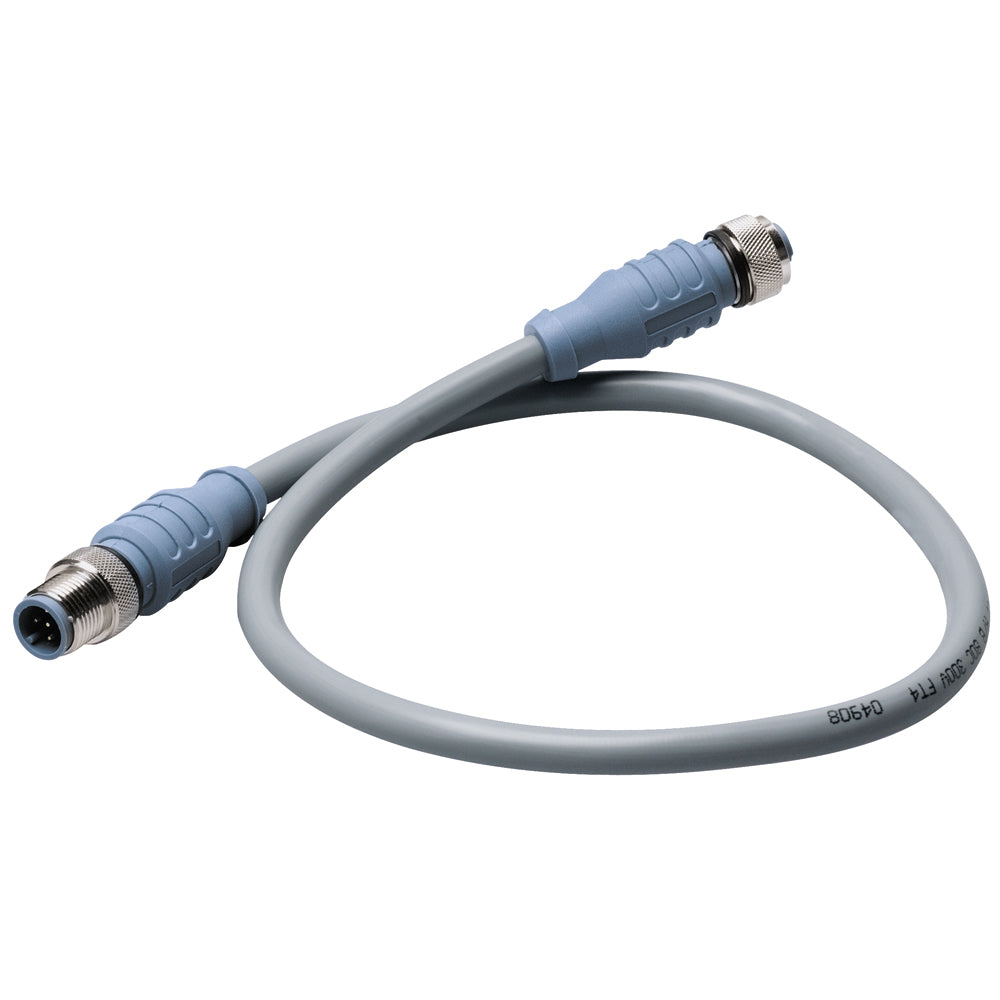

Maretron Micro Double-Ended Cordset - 6 Meter

Maretron Micro Double-Ended Cordset - 6 Meter

OM-MARETRON-MICRODOUBLEEND-CMCG1CF060

$70.31
$70.31
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Maretron Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

NMEA 2000Data Interface
Male-FemaleConnection Gender
6mCable Length (Meters)
Backbone/Drop CablesNMEA 2000 Connectors

This Maretron Micro Double-Ended Cordset is a 6 meter cable assembly for marine network installations. It uses molded thermoplastic PUR connector components, a PVC outer jacket, shielded conductors, and carries NMEA 2000 approval.

  • Length: 6 meter
  • Mechanical contact carrier: Thermoplastic PUR, blue-gray
  • Molded body: Thermoplastic PUR, blue-gray
  • Contacts: Brass with gold plating
  • Coupling nut: Brass with nickel plating
  • Connector outside diameter: 0.59"
  • Current rating: 4.0 Amps
  • Voltage rating: 250 V
  • Cable jacket: PVC, gray
  • Conductors: 4X22 AWG with 22 AWG drain wire
  • Insulation: HDPE data pair and SRPVC power pair
  • Shielding: Overall foil, power pair foil, and data pair foil
  • Environmental protection: IEC IP68; NEMA 1, 3, 4, 6P
  • Temperature rating: -40 deg C to 80 deg C (-40 deg F to 176 deg F)
  • Approvals: UL PLTC 75 deg C Sunlight Resistant E90625; AWM 80 deg C 300V; CSA CMX-OUTDOOR-CMG LL54185 75 deg C; AWM I/II A/B 80C 300V FT4; NMEA 2000 Approved

Specifications

Data InterfaceNMEA 2000
Connection GenderMale-Female
Cable Length (Meters)6m
NMEA 2000 ConnectorsBackbone/Drop Cables
BrandMaretron
Manufacturer part #CM-CG1-CF-06.0
UPC873804001562
Boxed dimensions7 x 7 x 2 in
Shipping weight1.05 lb
Country of originMEXICO
