• Maretron Micro Double-Ended Cordset 5 Meter
1 1

Maretron

Maretron Micro Double-Ended Cordset 5 Meter

Maretron Micro Double-Ended Cordset 5 Meter

OM-MARETRON-MICRODOUBLEEND-CMCG1CF050

$66.25
$66.25
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Male-FemaleConnection Gender
NMEA 2000Data Interface
5mCable Length (Meters)
Backbone/Drop CablesNMEA 2000 Connectors

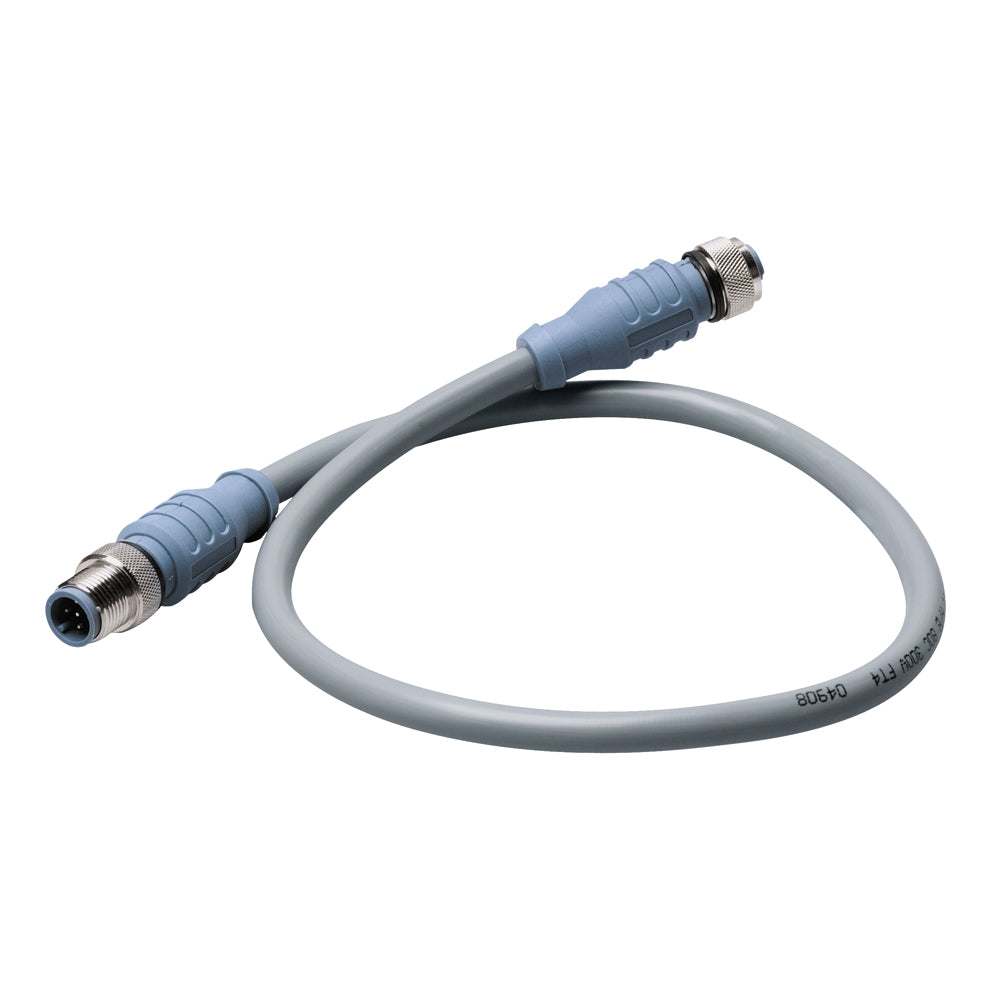

The Maretron Micro Double-Ended Cordset is a 5 meter cable for NMEA 2000 network connections. It uses molded thermoplastic PUR connector bodies, nickel-plated brass coupling nuts, and a gray PVC outer jacket.

  • Length: 5 meter
  • Connector outside diameter: 0.59 inch
  • Mechanical contact carrier: Thermoplastic PUR, blue-gray
  • Molded body: Thermoplastic PUR, blue-gray
  • Contacts: Brass with gold plating
  • Coupling nut: Brass with nickel plating
  • Current rating: 4.0 amps
  • Voltage rating: 250V
  • Cable outer jacket: PVC, gray
  • Conductor insulation: HDPE for data pair, SRPVC for power pair
  • Conductors: 4 x 22 AWG plus 22 AWG drain wire
  • Shielding: Foil overall, foil power pair, and foil data pair
  • Environmental protection: IEC IP68 and NEMA 1, 3, 4, 6P
  • Temperature rating: -40°C to 80°C or -40°F to 176°F
  • Approvals: UL PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V; CSA CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80C 300V FT4; NMEA 2000 Approved

Specifications

Connection GenderMale-Female
Data InterfaceNMEA 2000
Cable Length (Meters)5m
NMEA 2000 ConnectorsBackbone/Drop Cables
BrandMaretron
Manufacturer part #CM-CG1-CF-05.0
UPC873804001555
Boxed dimensions7 x 6 x 1 in
Shipping weight0.8 lb
Country of originMEXICO
