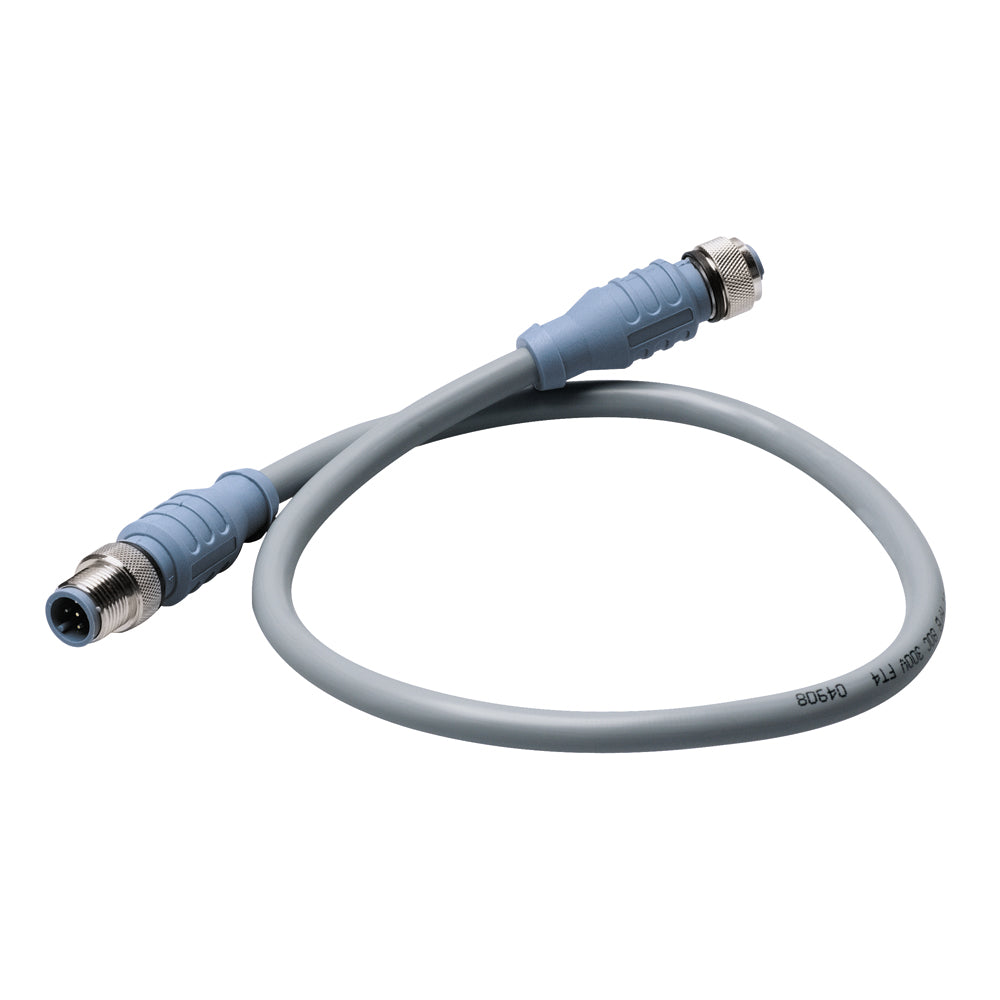

• Maretron Micro Double-Ended Cordset - 4 Meter
1 1

Maretron

Maretron Micro Double-Ended Cordset - 4 Meter

Maretron Micro Double-Ended Cordset - 4 Meter

OM-MARETRON-MICRODOUBLEEND-CMCG1CF040

$62.13
$62.13
Shipping calculated at checkout.

Low stock: 1 left
Authorized Maretron Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Male-FemaleConnection Gender
NMEA 2000Data Interface
4mCable Length (Meters)
Backbone/Drop CablesNMEA 2000 Connectors

The Maretron Micro Double-Ended Cordset is a 4 meter marine network cable with molded thermoplastic PUR connector bodies and blue-gray contact carriers. It is NMEA 2000 approved and built with shielded conductors for data and power pairs.

  • Length: 4 meter
  • Connector outside diameter: 0.59 in
  • Contact carrier: Thermoplastic PUR, blue-gray
  • Molded body: Thermoplastic PUR, blue-gray
  • Contacts: Brass with gold plating
  • Coupling nut: Brass with nickel plating
  • Current rating: 4.0 amps
  • Voltage rating: 250 V
  • Cable jacket: Gray PVC
  • Conductor insulation: HDPE for data pair and SRPVC for power pair
  • Conductors: 4 x 22 AWG with 22 AWG drain wire
  • Shielding: Overall foil, power pair foil, and data pair foil
  • Environmental protection: IEC IP68; NEMA 1, 3, 4, 6P
  • Temperature rating: -40 deg C to 80 deg C, or -40 deg F to 176 deg F
  • Approvals: UL PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V; CSA CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4; NMEA 2000 Approved

Specifications

Connection GenderMale-Female
Data InterfaceNMEA 2000
Cable Length (Meters)4m
NMEA 2000 ConnectorsBackbone/Drop Cables
BrandMaretron
Manufacturer part #CM-CG1-CF-04.0
UPC786788837105
Boxed dimensions7 x 7 x 1 in
Shipping weight0.65 lb
Country of originMEXICO
