• Maretron Micro Double-Ended Cordset - 3M
1 1

Maretron

Maretron Micro Double-Ended Cordset - 3M

Maretron Micro Double-Ended Cordset - 3M

OM-MARETRON-MICRODOUBLEEND-CMCG1CF030

$56.98
$56.98
Shipping calculated at checkout.

Low stock: 3 left
Authorized Maretron Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

NMEA 2000Data Interface
3mCable Length (Meters)
Backbone/Drop CablesNMEA 2000 Connectors

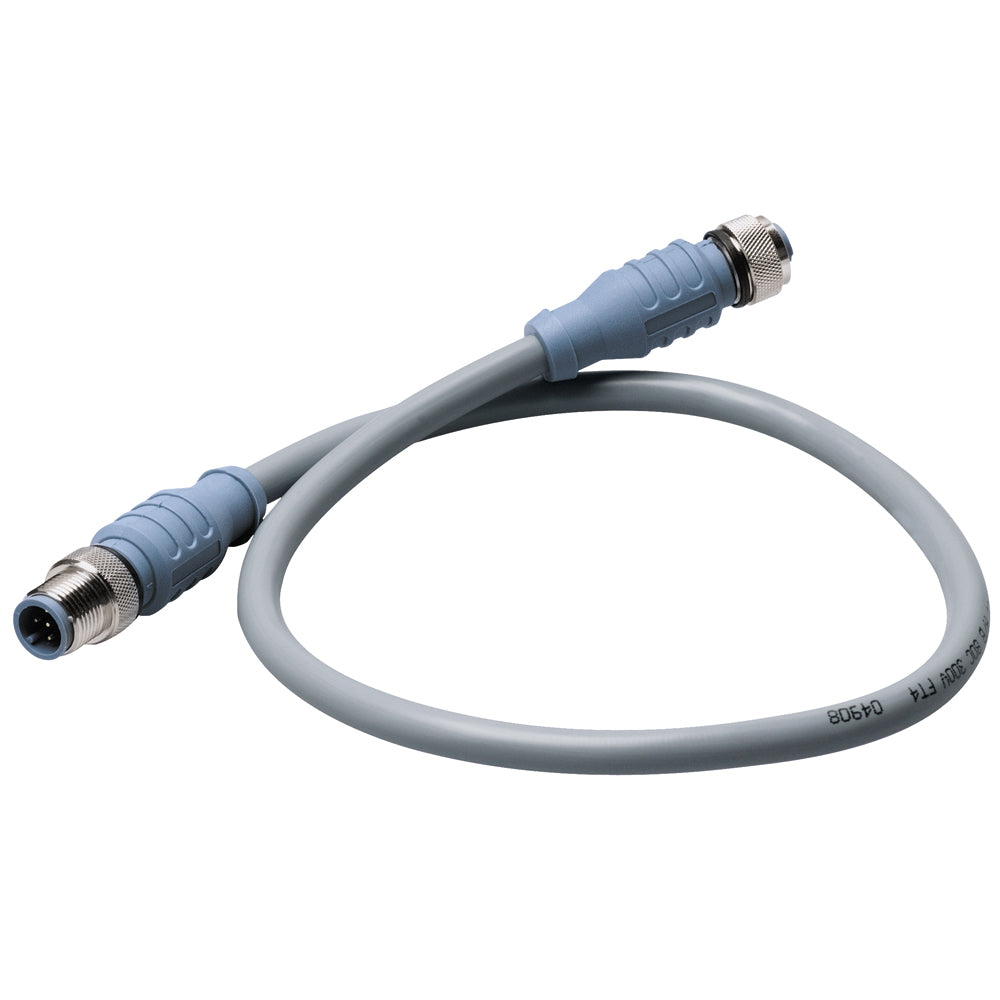

This Maretron Micro double-ended cordset is a 3 meter cable for NMEA 2000 network installations. It combines molded thermoplastic PUR connector components with a gray PVC outer jacket and shielded conductors for data and power pairs.

  • Brand: Maretron
  • Product: Micro double-ended cordset
  • Length: 3M
  • Mechanical contact carrier material/color: Thermoplastic PUR/Blue-Gray
  • Molded body material/color: Thermoplastic PUR/Blue-Gray
  • Contact material/plating: Brass/Gold
  • Coupling nut material/plating: Brass/Nickel
  • Connector outside diameter: 0.59"
  • Current rating: 4.0 Amps
  • Voltage rating: 250 V
  • Cable outer jacket material/color: PVC/Gray
  • Conductor insulation: HDPE data pair, SRPVC power pair
  • Conductors: 4X22 AWG, 22 AWG drain wire
  • Shielding: FOIL overall, FOIL power pair, FOIL data pair
  • Environmental protection: IEC IP68, NEMA 1,3,4,6P
  • Temperature rating: -40 deg C to 80 deg C (-40 deg F to 176 deg F)
  • UL cable approvals: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • CSA cable approvals: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4
  • NMEA approval: NMEA 2000 Approved

Specifications

Data InterfaceNMEA 2000
Cable Length (Meters)3m
NMEA 2000 ConnectorsBackbone/Drop Cables
BrandMaretron
Manufacturer part #CM-CG1-CF-03.0
UPC873804001531
Boxed dimensions8 x 6 x 1 in
Shipping weight0.55 lb
Country of originMEXICO
