• Maretron Micro Double-Ended Cordset - 2 Meter
1 1

Maretron

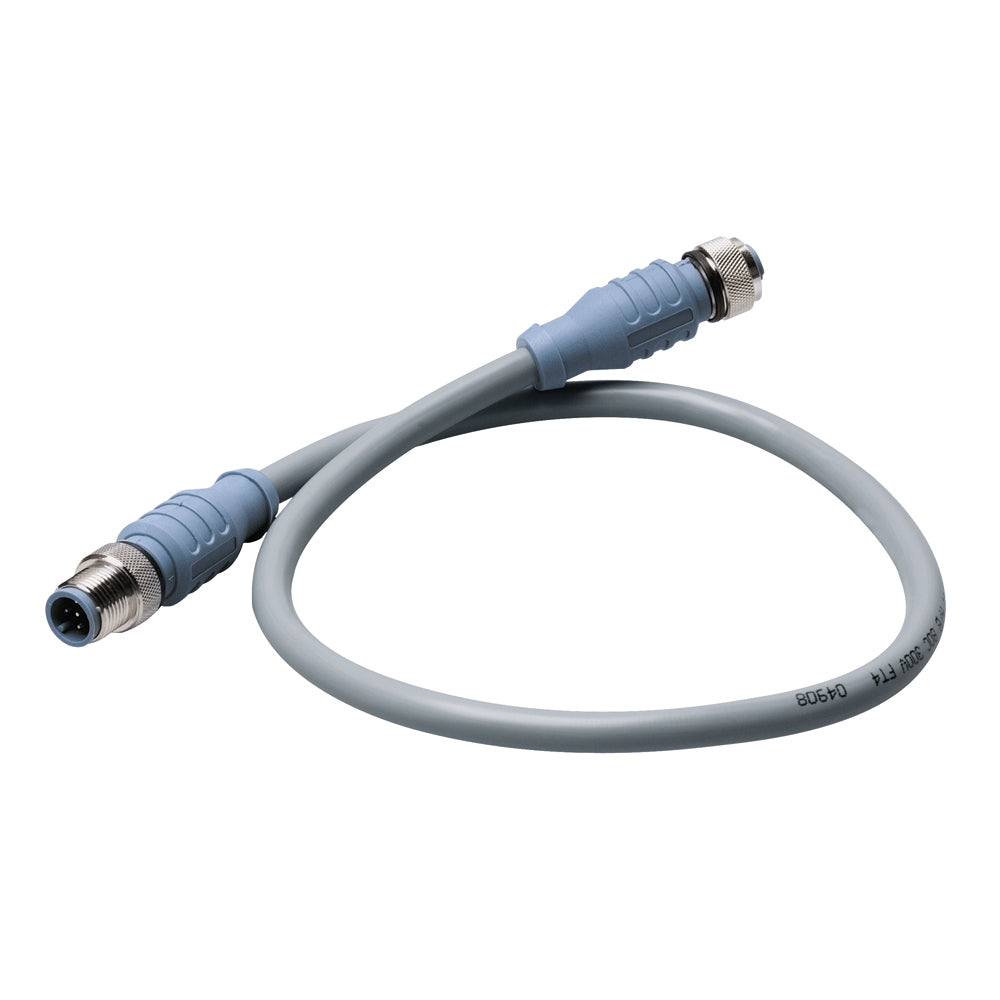

Maretron Micro Double-Ended Cordset - 2 Meter

Maretron Micro Double-Ended Cordset - 2 Meter

OM-MARETRON-MICRODOUBLEEND-CMCG1CF020

$52.81
$52.81
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Authorized Maretron Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Male-FemaleConnection Gender
NMEA 2000Data Interface
2mCable Length (Meters)
Backbone/Drop CablesNMEA 2000 Connectors

This Maretron micro double-ended cordset is a 2 meter cable for marine NMEA 2000 network installations. It uses molded thermoplastic PUR connector components, shielded conductors, and an IP68 environmental protection rating.

  • Length: 2 meter
  • Contact carrier: thermoplastic PUR, blue-gray
  • Molded body: thermoplastic PUR, blue-gray
  • Contacts: brass with gold plating
  • Coupling nut: brass with nickel plating
  • Connector outside diameter: 0.59
  • Current rating: 4.0 amps
  • Voltage rating: 250 V
  • Cable jacket: gray PVC
  • Conductor insulation: HDPE data pair and SRPVC power pair
  • Conductors: 4X22 AWG with 22 AWG drain wire
  • Shielding: overall foil, power pair foil, and data pair foil
  • Protection class: IEC IP68; NEMA 1, 3, 4, 6P
  • Temperature rating: -40 degrees C to 80 degrees C, or -40 degrees F to 176 degrees F
  • UL cable approval: PLTC 75 degrees C Sunlight Resistant E90625; AWM 80 degrees C 300V
  • CSA cable approval: CMX-OUTDOOR-CMG LL54185 75 degrees C; AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 approved

Specifications

Connection GenderMale-Female
Data InterfaceNMEA 2000
Cable Length (Meters)2m
NMEA 2000 ConnectorsBackbone/Drop Cables
BrandMaretron
Manufacturer part #CM-CG1-CF-02.0
UPC873804001524
Boxed dimensions7 x 7 x 1 in
Shipping weight0.35 lb
Country of originMEXICO
