• Maretron Micro Double-Ended Cordset - 10 Meter
1 1

Maretron

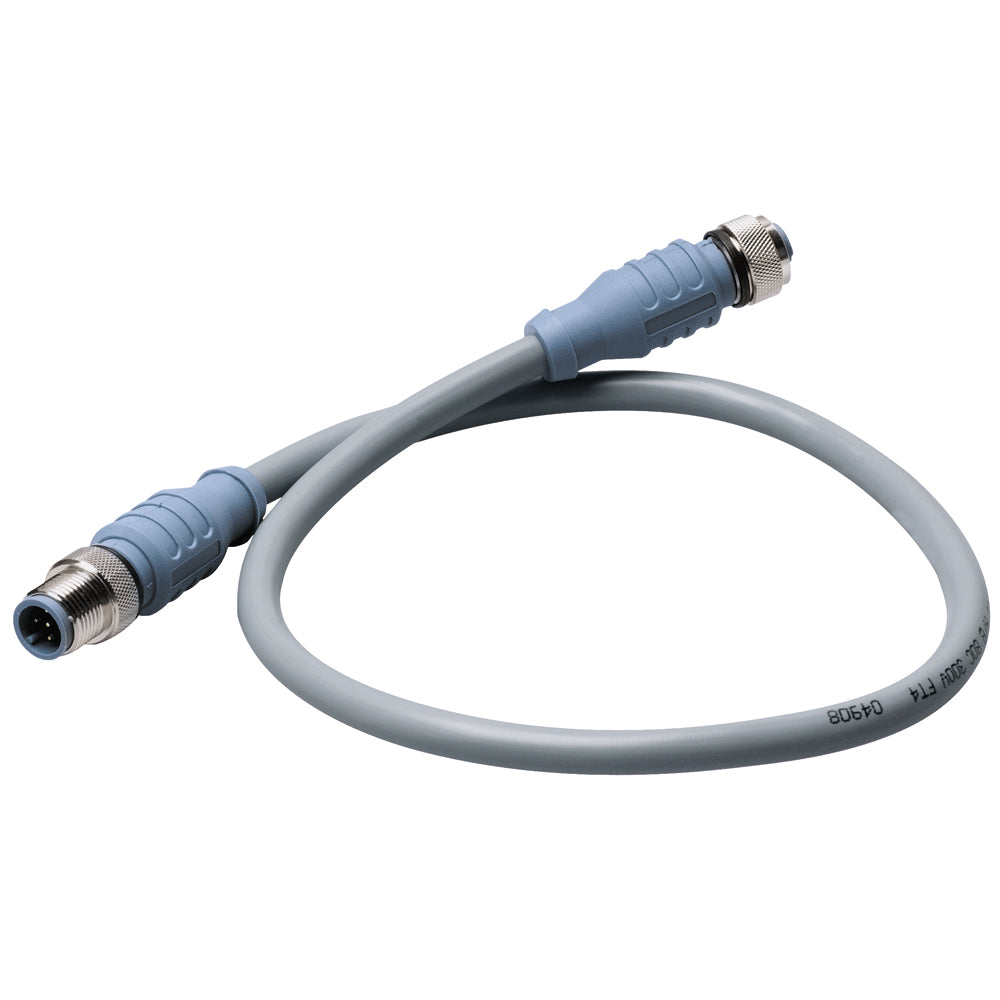

Maretron Micro Double-Ended Cordset - 10 Meter

Maretron Micro Double-Ended Cordset - 10 Meter

OM-MARETRON-MICRODOUBLEEND-CMCG1CF100

$78.54
$80.00 $78.54
Sale
Shipping calculated at checkout.

Low stock: 3 left
Authorized Maretron Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

NMEA 2000Data Interface
Male-FemaleConnection Gender
10mCable Length (Meters)
Backbone/Drop CablesNMEA 2000 Connectors

This Maretron Micro double-ended cordset is a 10 meter cable for marine network and instrument installations. It combines molded thermoplastic connectors, shielded conductors, and marine-rated environmental protection for NMEA 2000 use.

  • Brand: Maretron
  • Type: Micro double-ended cordset
  • Length: 10 meter
  • Connector outside diameter: 0.59"
  • Current rating: 4.0 Amps
  • Voltage rating: 250 V
  • Mechanical contact carrier: Thermoplastic PUR, blue-gray
  • Molded body: Thermoplastic PUR, blue-gray
  • Contacts: Brass with gold plating
  • Coupling nut: Brass with nickel plating
  • Cable jacket: PVC, gray
  • Conductors: 4X22 AWG with 22 AWG drain wire
  • Insulation: HDPE data pair and SRPVC power pair
  • Shielding: Overall foil, power pair foil, and data pair foil
  • Protection class: IEC IP68 and NEMA 1, 3, 4, 6P
  • Temperature rating: -40 deg C to 80 deg C (-40 deg F to 176 deg F)
  • Approvals: UL PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved

Specifications

Data InterfaceNMEA 2000
Connection GenderMale-Female
Cable Length (Meters)10m
NMEA 2000 ConnectorsBackbone/Drop Cables
BrandMaretron
Manufacturer part #CM-CG1-CF-10.0
UPC873804001609
Boxed dimensions7 x 7 x 3 in
Shipping weight1.5 lb
Country of originMEXICO
