• Maretron Micro Double-Ended Cordset - 1 Meter
1 1

Maretron

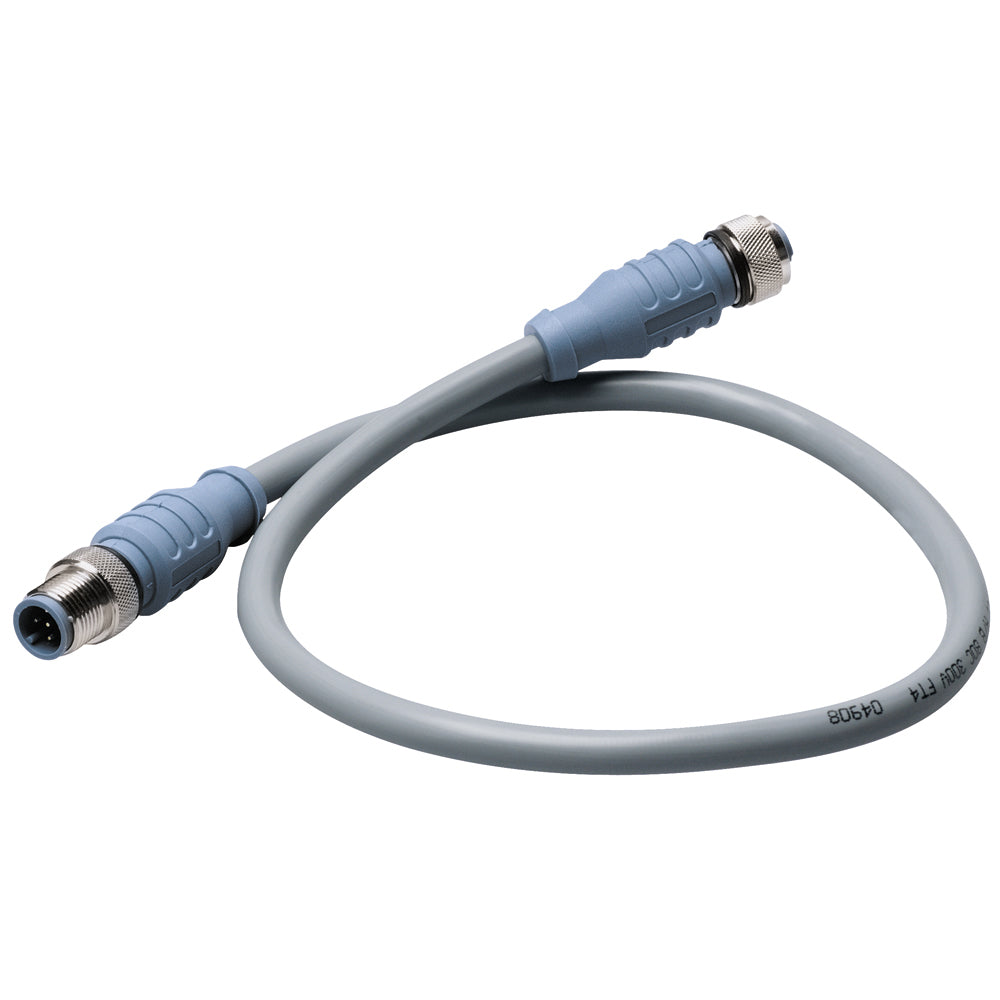

Maretron Micro Double-Ended Cordset - 1 Meter

Maretron Micro Double-Ended Cordset - 1 Meter

OM-MARETRON-MICRODOUBLEEND-CMCG1CF010

$48.73
$48.73
Shipping calculated at checkout.

Low stock: 3 left
Authorized Maretron Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Male-FemaleConnection Gender
NMEA 2000Data Interface
1mCable Length (Meters)
Backbone/Drop CablesNMEA 2000 Connectors

This Maretron Micro double-ended cordset is a 1 meter cable for NMEA 2000 installations. It pairs molded blue-gray connectors with a shielded four-conductor cable for marine navigation and instrument networking.

  • Length: 1 meter
  • Connector type: Micro double-ended cordset
  • NMEA approval: NMEA 2000 approved
  • Current rating: 4.0 amps
  • Voltage rating: 250 V
  • Connector outside diameter: 0.59"
  • Contact carrier: Thermoplastic PUR, blue-gray
  • Molded body: Thermoplastic PUR, blue-gray
  • Contacts: Brass with gold plating
  • Coupling nut: Brass with nickel plating
  • Cable jacket: PVC, gray
  • Conductors: 4 x 22 AWG with 22 AWG drain wire
  • Insulation: HDPE data pair and SRPVC power pair
  • Shielding: Overall foil, power-pair foil, and data-pair foil
  • Environmental protection: IEC IP68 and NEMA 1, 3, 4, 6P
  • Temperature rating: -40 deg C to 80 deg C (-40 deg F to 176 deg F)
  • Cable approvals: UL PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V; CSA CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4

Specifications

Connection GenderMale-Female
Data InterfaceNMEA 2000
Cable Length (Meters)1m
NMEA 2000 ConnectorsBackbone/Drop Cables
BrandMaretron
Manufacturer part #CM-CG1-CF-01.0
UPC873804001517
Boxed dimensions7 x 6 x 1 in
Shipping weight0.2 lb
Country of originMEXICO
