Overview

NMEA 2000Data Interface
4.5mCable Length (Meters)

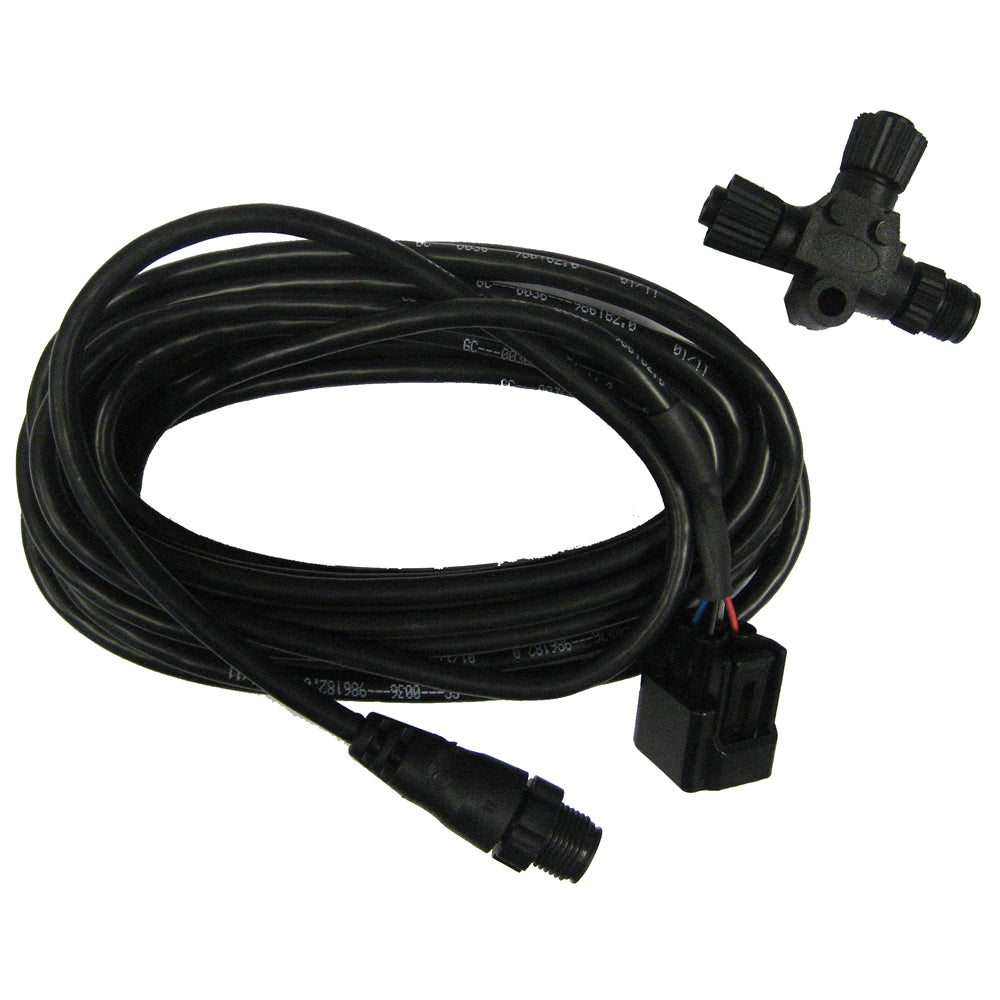

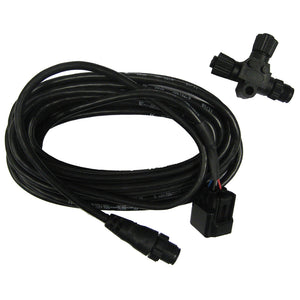

The Lowrance Yamaha Engine Interface Cable connects compatible Yamaha outboards to an NMEA 2000 network so engine data can be shown on NMEA 2000 compliant displays. It is intended for Yamaha engines that do not use the Yamaha CommandLink Plus system and includes the T-connector needed for network connection.

  • Cable length: 4.5 m / 15 ft
  • Includes: Yamaha engine interface cable and T-connector
  • Network requirement: Requires an NMEA 2000 network

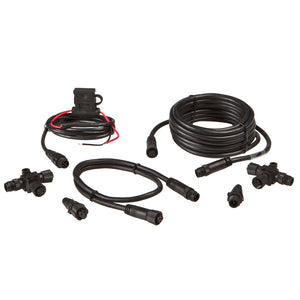

  • Starter kit note: Add NMEA 2000 starter kit part number 000-0124-69 if a network is not already installed
  • Display compatibility: Works with NMEA 2000 compliant units
  • Compatible 2006 and newer 4-stroke models: F50, T50, F60, T60, F75, F90, F115, LF115, F150, LF150, F200, LF200, F225, F250, LF250
  • Compatible 2006 and newer 2-stroke HDPI models: Z150, LZ150, VZ150, Z175, Z200, LZ200, VZ225, Z250, LZ250, VZ250, Z300, LZ300, VZ300
  • Engine output range: Yamaha 4-stroke 50-250 and 2-stroke HDPI 150-350
  • Data outputs: RPM, alternator voltage, engine hours, engine temperature, fuel pressure, fuel rate, oil pressure, trim, and water pressure
  • Trim note: Digital trim must be connected by a Yamaha dealer

Specifications

Data InterfaceNMEA 2000
Cable Length (Meters)4.5m
BrandLowrance
Manufacturer part #120-37
UPC042194529820
Boxed dimensions10 x 4 x 2 in
Shipping weight0.45 lb
Country of originMEXICO
