Overview

C-MapCartography Brand
000-16062-001Included Transducer
9"Screen Size
YesTouchscreen
YesTransducer Included

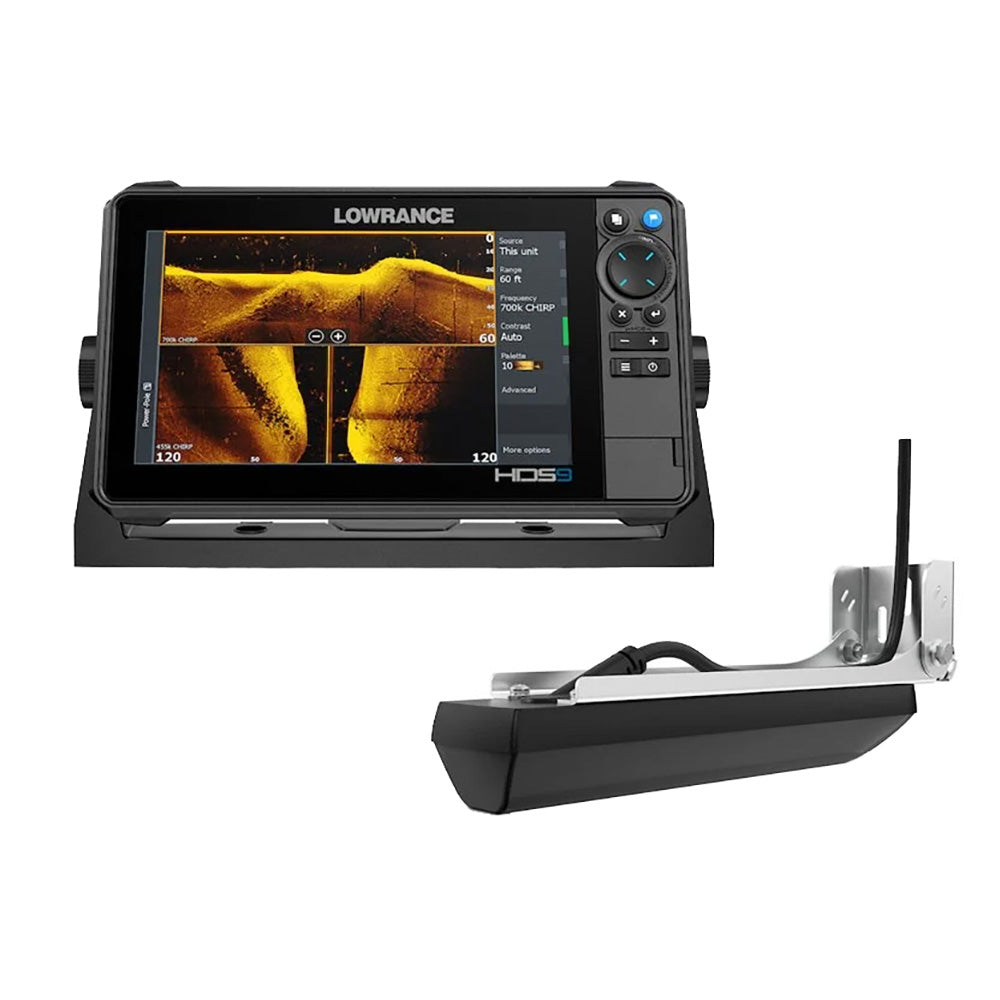

The Lowrance HDS PRO 9 is a 9-inch fishfinder/chartplotter package with preloaded C-MAP DISCOVER OnBoard charts and an Active Imaging HD 3-in-1 transducer. It is built for anglers who want charting, sonar imaging, live sonar support, and networked boat-control integration from one display.

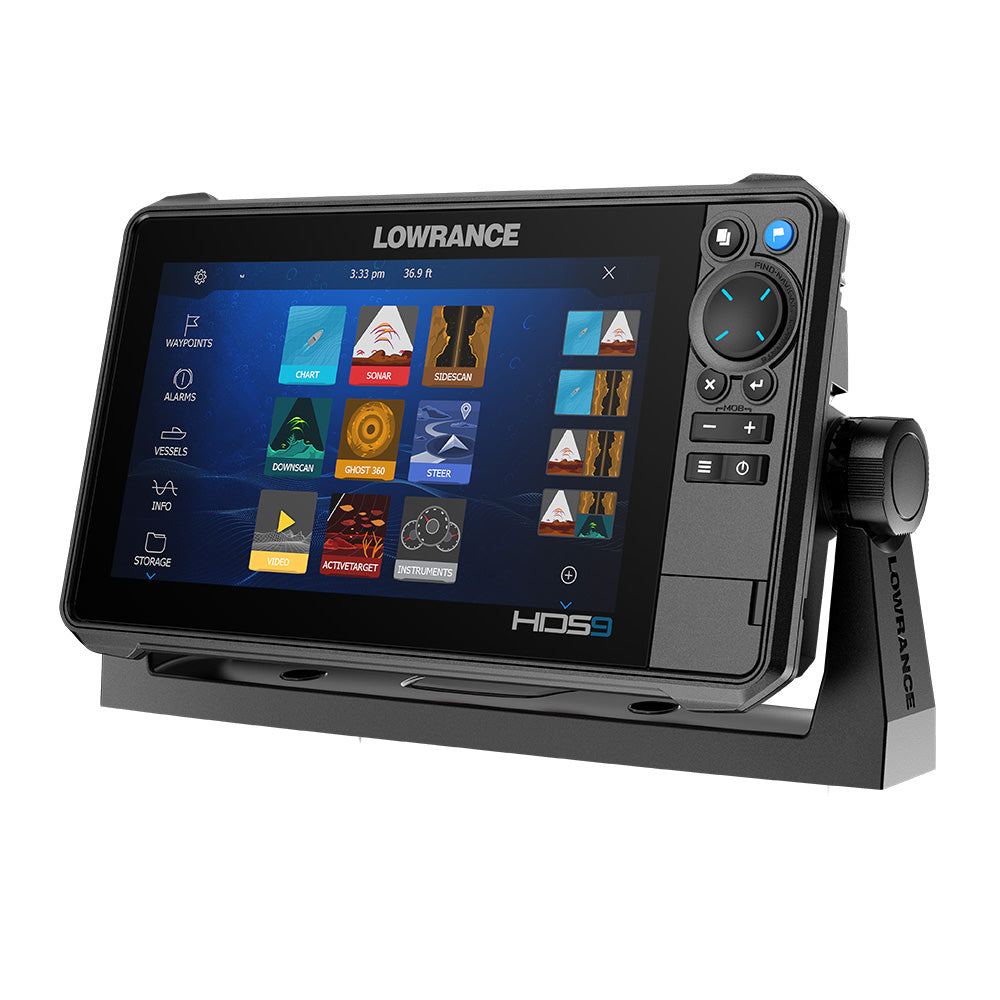

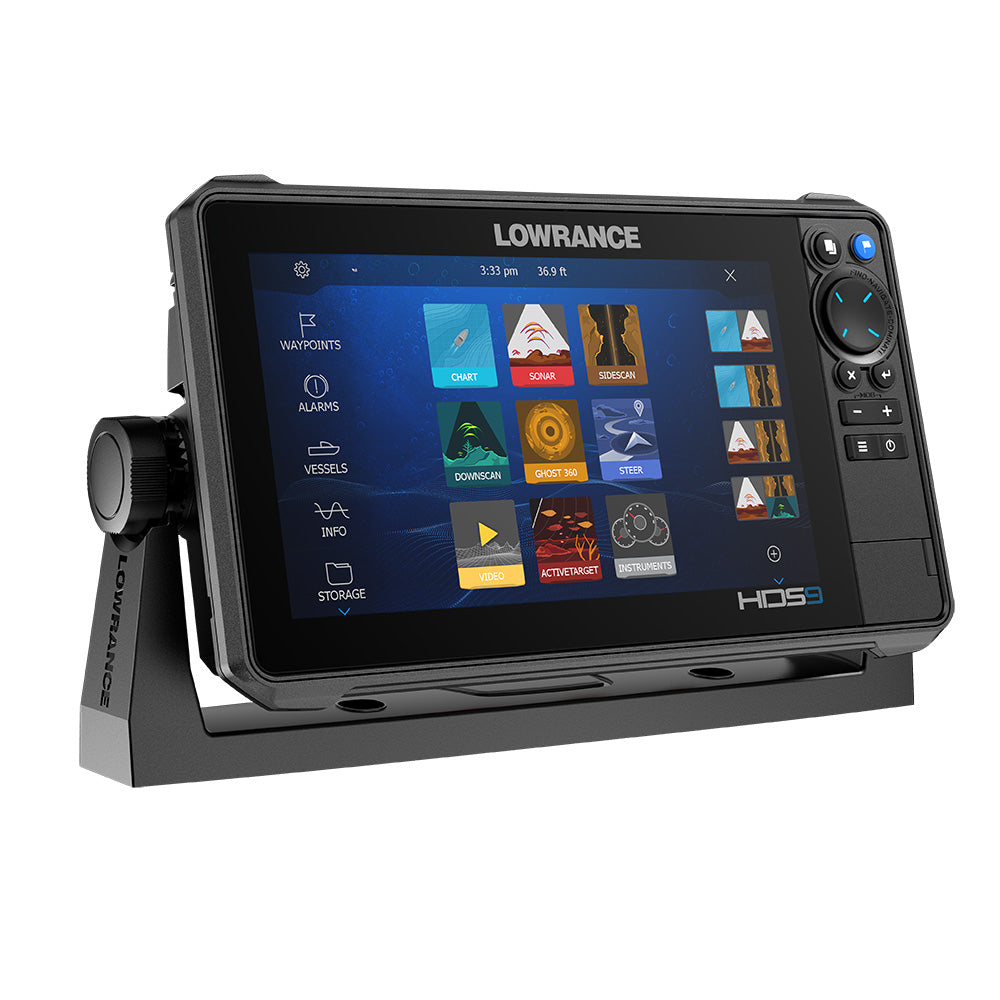

  • Included: HDS PRO fishfinder/chartplotter with 9-inch display
  • Included charts: C-MAP DISCOVER OnBoard, preloaded
  • Included transducer: Lowrance Active Imaging HD 3-in-1 Transducer, part number 000-16062-001
  • Chart detail: 1-foot contours on 19,000+ US lakes and 9,400+ Canadian lakes
  • Display: SolarMAX HD touchscreen
  • Display resolution: 1280 x 720
  • Backlight color: pure white LED
  • Viewing angles: 80 degrees top/bottom and 80 degrees left/right
  • Sonar support: ActiveTarget 2 Live Sonar ready
  • Imaging support: Active Imaging HD ready with Lowrance CHIRP, SideScan, and DownScan Imaging
  • Transducer frequencies: Medium and High CHIRP 83/200kHz, plus 455/800kHz and 455/1.2MHz
  • FishReveal: supports SideScan view and DownScan; DownScan requires S3100 and a compatible transducer
  • Mapping: C-MAP Genesis Live real-time mapping support
  • Overlay support: ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views
  • Controls: large programmable keys
  • Boat control: touchscreen control for Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot
  • Bluetooth: integrated Bluetooth 4.0 with Bluetooth Classic support
  • Ethernet: 2 x 100 Mbit ports, with up to 6 MFDs on a network
  • WiFi: internal 802.11b/g/n and WiFi-1 Module compatible
  • NMEA 2000: 1x Micro-C connection
  • Storage: 2 microSD card slots, up to 32GB
  • Power consumption: maximum 2.9A at 13.8VDC with full backlight and sonar on

Specifications

Cartography BrandC-Map
Included Transducer000-16062-001
Screen Size9"
TouchscreenYes
Transducer IncludedYes
BrandLowrance
Manufacturer part #000-15981-001
UPC9420064129614
Boxed dimensions16 x 13 x 6 in
Shipping weight10.1 lb
Country of originMEXICO
