Lowrance

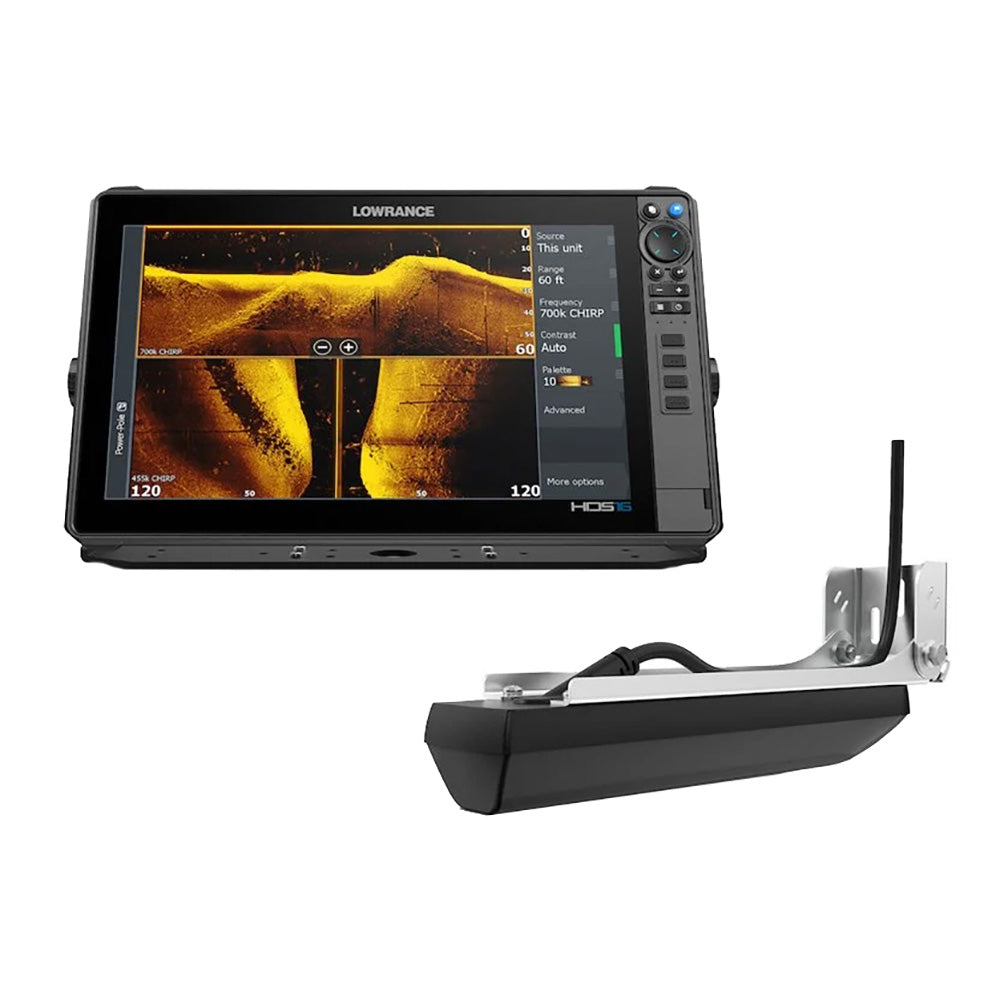

Lowrance HDS PRO 16 - w/ Preloaded C-MAP DISCOVER OnBoard & Active Imaging HD Transducer

Lowrance HDS PRO 16 - w/ Preloaded C-MAP DISCOVER OnBoard & Active Imaging HD Transducer

OM-LOWRANCE-HDSPRO16-00015990001

$4,799.00
$4,799.00
Shipping calculated at checkout.

Low stock: 1 left
Authorized Lowrance Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

C-MapCartography Brand
000-14489-001Included Transducer
16"Screen Size
YesTouchscreen
YesTransducer Included

The Lowrance HDS PRO 16 combines a 16-inch fishfinder/chartplotter with preloaded C-MAP DISCOVER OnBoard charts and an Active Imaging HD 3-in-1 transducer. It is intended for anglers who want charting, sonar imaging, live sonar support, and boat-system connectivity from one display.

  • Included: HDS PRO fishfinder/chartplotter with 16-inch display screen
  • Included: C-MAP DISCOVER OnBoard preloaded in the unit
  • Included: Lowrance Active Imaging HD 3-in-1 Transducer, part number 000-16062-001
  • Charts: C-MAP DISCOVER OnBoard with 1-foot contours on 19,000+ US lakes and 9,400+ Canadian lakes
  • Display: SolarMAX HD touchscreen
  • Resolution: 1920 x 1080 Full HD
  • Backlight color: pure white LED
  • Viewing angles: 80 degrees top/bottom and 80 degrees left/right
  • Sonar readiness: Active Imaging HD ready and ActiveTarget 2 Live Sonar ready
  • Transducer imaging: SideScan and DownScan Imaging up to 1.2MHz
  • Transducer sonar: Lowrance CHIRP with Medium and High CHIRP at 83/200kHz
  • Frequencies: 455/800kHz and 455/1.2MHz
  • FishReveal: supported with SideScan view and DownScan; DownScan requires S3100 and compatible transducer
  • Mapping: C-MAP Genesis Live real-time mapping available
  • Overlay support: ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views
  • Controls: large programmable keys
  • Boat control: touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot
  • Networking: NMEA 2000, wireless, Bluetooth, Ethernet, and smartphone notifications
  • Bluetooth: integrated Bluetooth 4.0 with Bluetooth Classic support
  • Ethernet: 2 x 100 Mbit ports, 6 maximum MFDs on a network
  • WiFi: internal 802.11b/g/n and compatible with WiFi-1 Module
  • NMEA 2000: 1x Micro-C
  • Storage: 2 micro SD cards up to 32GB
  • Power consumption: maximum 4.1A at 13VDC with full backlight
  • Compatibility: transducer connects directly to Lowrance HDS PRO or through an S3100 module with HDS LIVE, HDS Carbon, and Elite FS

Specifications

Cartography BrandC-Map
Included Transducer000-14489-001
Screen Size16"
TouchscreenYes
Transducer IncludedYes
BrandLowrance
Manufacturer part #000-15990-001
UPC9420064129706
Boxed dimensions25 x 14 x 7 in
Shipping weight18.35 lb
Country of originMEXICO
