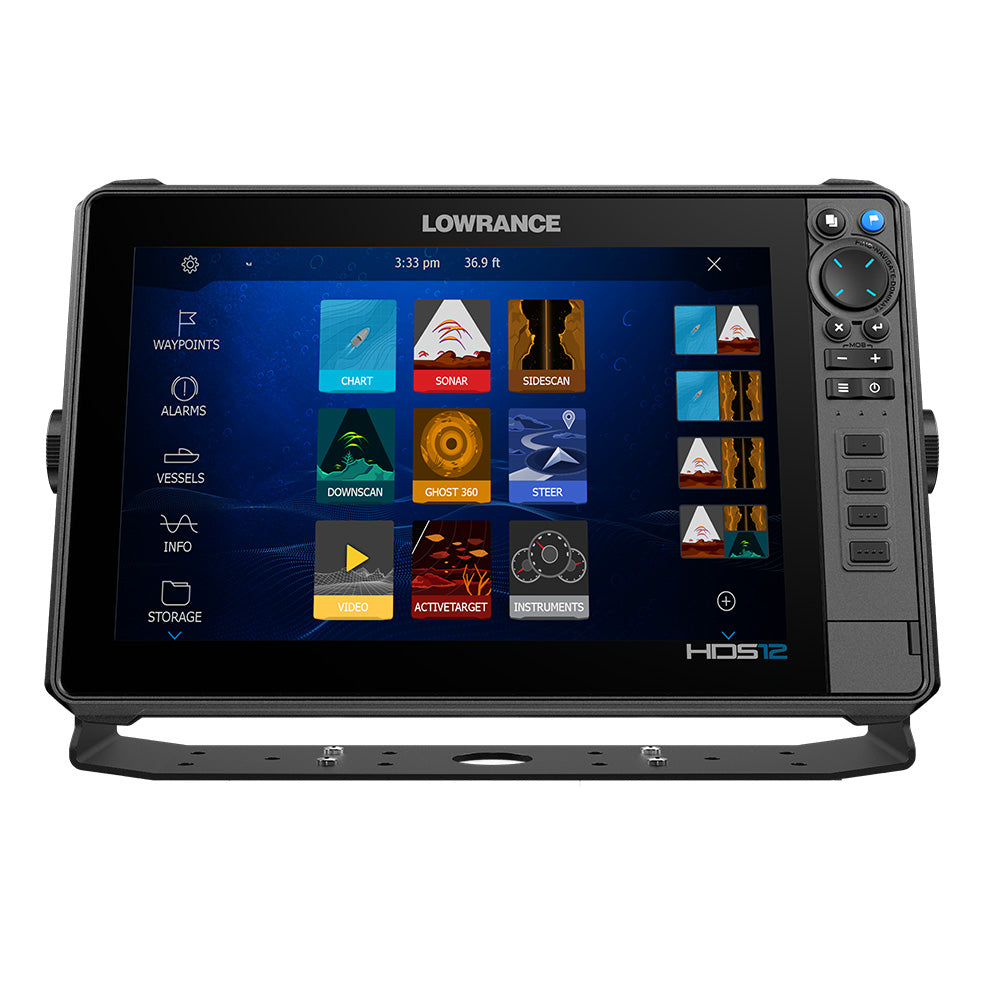

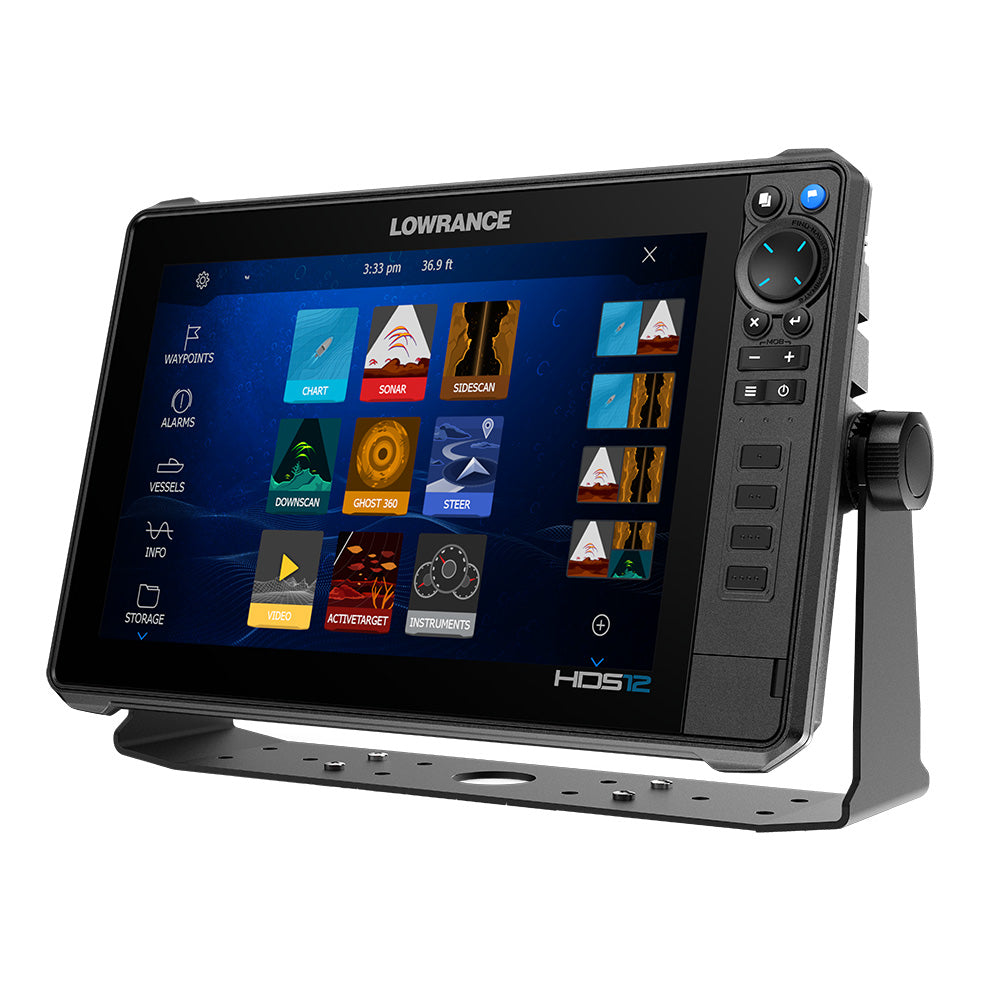

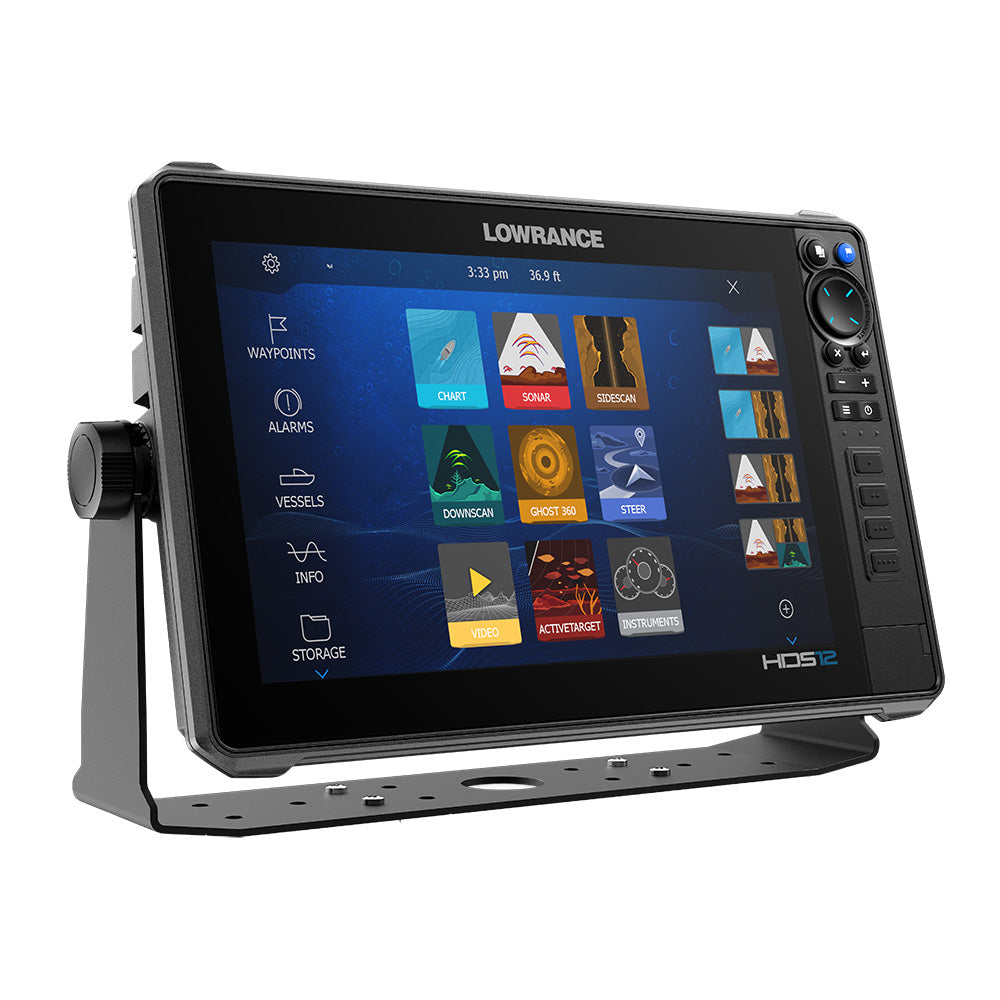

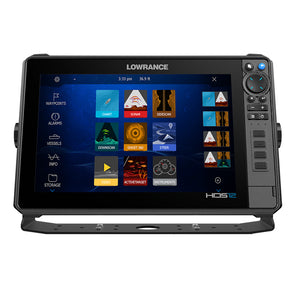

Lowrance HDS PRO 12 - w/ Preloaded C-MAP DISCOVER OnBoard - No Transducer
Lowrance HDS PRO 12 - w/ Preloaded C-MAP DISCOVER OnBoard - No Transducer
SKU:OM-LOWRANCE-HDSPRO12-00016002001
Low stock: 1 left
Couldn't load pickup availability
Frequently bought together
FREE U.S. shipping on every item
Overview
Bring charts, sonar capability and connected boat controls to the helm with the Lowrance HDS PRO 12 fishfinder/chartplotter. Anglers get a 12-inch touchscreen and preloaded C-MAP DISCOVER OnBoard mapping in this version, which comes without a transducer.
Key features
- Preloaded charts show 1-foot contours across thousands of U.S. and Canadian lakes to help you identify areas to fish.
- The SolarMAX HD touchscreen remains viewable through polarized lenses and from extreme angles.
- Support for ActiveTarget 2 Live Sonar and Active Imaging HD lets you add compatible sonar equipment to observe fish and structure.
- C-MAP Genesis Live enables real-time mapping as you explore.
- Large programmable keys let you assign controls to suit your use.
- Touchscreen integration supports control of compatible anchors, trolling motors and autopilot equipment.
Specifications
- Brand: Lowrance
- Model: HDS PRO 12
- Product type: Fishfinder/chartplotter
- Display size: 12 inches
- Display resolution: 1280 x 800
- Backlight: Pure white LED
- Viewing angles: 80° top/bottom and 80° left/right
- Preloaded charts: C-MAP DISCOVER OnBoard
- Chart coverage: 19,000+ U.S. lakes and 9,400+ Canadian lakes
- Chart contour interval: 1 foot
- Bluetooth: Integrated Bluetooth 4.0 with Bluetooth Classic support
- Ethernet: Two 100 Mbit ports; maximum six multifunction displays per network
- Wi-Fi: Internal 802.11b/g/n; compatible with WiFi-1 Module
- NMEA 2000 connection: One Micro-C
- Memory card storage: Two microSD cards, up to 32GB
- Internal storage: 8.0GB
- Supply voltage: 12V DC; range 10.8–17V DC
- Maximum current draw: 3.6A at 13V DC with full backlight and sonar on
- Typical current draw: 2.3A at 13V DC with full backlight and sonar on
- Recommended fuse: 5A
- Operating temperature: -15°C to 55°C (5°F to 131°F)
- GPS receiver channels: 16
- GPS update rate: 10Hz
Good to know
The package includes the HDS PRO 12 display with C-MAP DISCOVER OnBoard preloaded; no transducer is included. FishReveal with SideScan and DownScan requires an S3100 and a compatible transducer. Supported control equipment includes Power-Pole anchors, the Ghost Trolling Motor, Autopilot and Lowrance Outboard Pilot. ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views are also supported.
Specifications
| Cartography Brand | C-Map |
|---|---|
| Screen Size | 12" |
| Touchscreen | Yes |
| Transducer Included | No |
| Brand | Lowrance |
| Manufacturer part # | 000-16002-001 |
| UPC | 9420064129829 |
| Boxed dimensions | 17 x 16 x 7 in |
| Shipping weight | 11.0 lb |
| Country of origin | MEXICO |
Manuals & documents
Shipping & returns
Free standard shipping
Standard shipping is free on every U.S. order — no minimum. Need it faster? Faster delivery options are available at checkout for qualifying orders. In-stock orders ship quickly with tracking; oversized and freight items may ship separately and can take a little longer. International rates are calculated at checkout.
30-day returns
Request a return within 30 days of delivery. Authorized returns are subject to a 15% restocking fee. Return shipping is paid by the buyer; items must be new and in original packaging. See our refund policy.
Authorized Lowrance Reseller
OutdoorsMarine is an authorized Lowrance reseller. This product is genuine and backed by the full U.S. manufacturer warranty.
