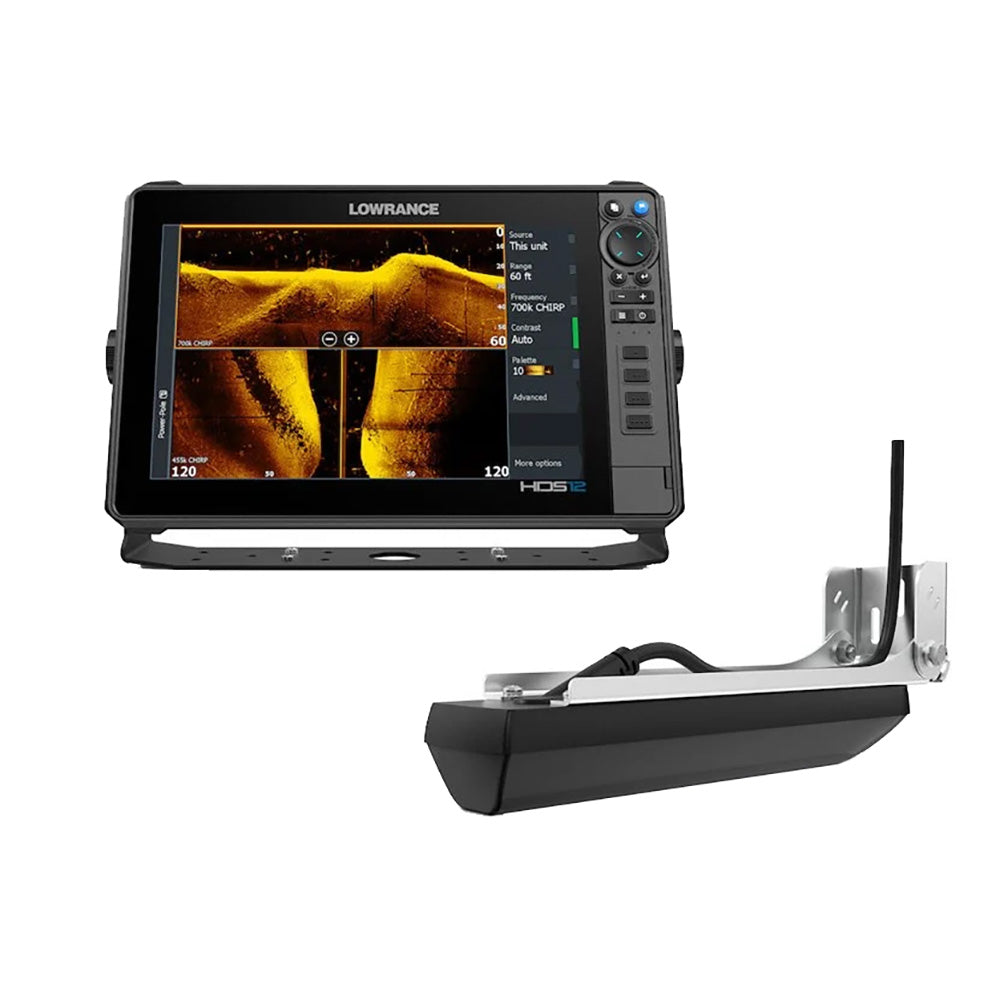

Lowrance HDS PRO 12 - w/ Preloaded C-MAP DISCOVER OnBoard & Active Imaging HD Transducer

The Lowrance HDS PRO 12 is a fishfinder/chartplotter package for anglers building a connected helm or bow electronics system. It includes the 12-inch HDS PRO display with C-MAP DISCOVER OnBoard charts preloaded, plus the Active Imaging HD 3-in-1 transducer for CHIRP, SideScan, and DownScan coverage.

The unit is designed for advanced sonar and boat-control integration, including ActiveTarget 2 Live Sonar support, FishReveal views, networking, and compatible Lowrance control systems.

• Display: 12-inch SolarMAX HD touchscreen
• Included charts: Preloaded C-MAP DISCOVER OnBoard
• Lake detail: 1-foot contours on 19,000+ U.S. lakes and 9,400+ Canadian lakes
• Included transducer: Lowrance Active Imaging HD 3-in-1, part number 000-16062-001
• Transducer sonar: Lowrance CHIRP, SideScan, and DownScan Imaging
• Frequencies: Medium and High CHIRP 83/200kHz, plus 455/800kHz and 455/1.2MHz
• Live sonar support: ActiveTarget 2 Live Sonar ready
• Mapping: C-MAP Genesis Live real-time mapping support
• Controls: Touchscreen control for Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot
• Networking: NMEA 2000, wireless, Bluetooth, and Ethernet connectivity
• Resolution: 1280 x 800
• Viewing angles: 80 degrees top/bottom and 80 degrees left/right
• Bluetooth: Integrated Bluetooth 4.0 with Bluetooth Classic support
• Ethernet: 2 x 100 Mbit ports, up to 6 MFDs on a network
• Wi-Fi: Internal 802.11b/g/n and compatible with WiFi-1 Module
• NMEA 2000: 1x Micro-C connection
• Storage: 2 microSD card slots, up to 32GB each
• Power draw: 3.6A maximum at 13VDC with full backlight
