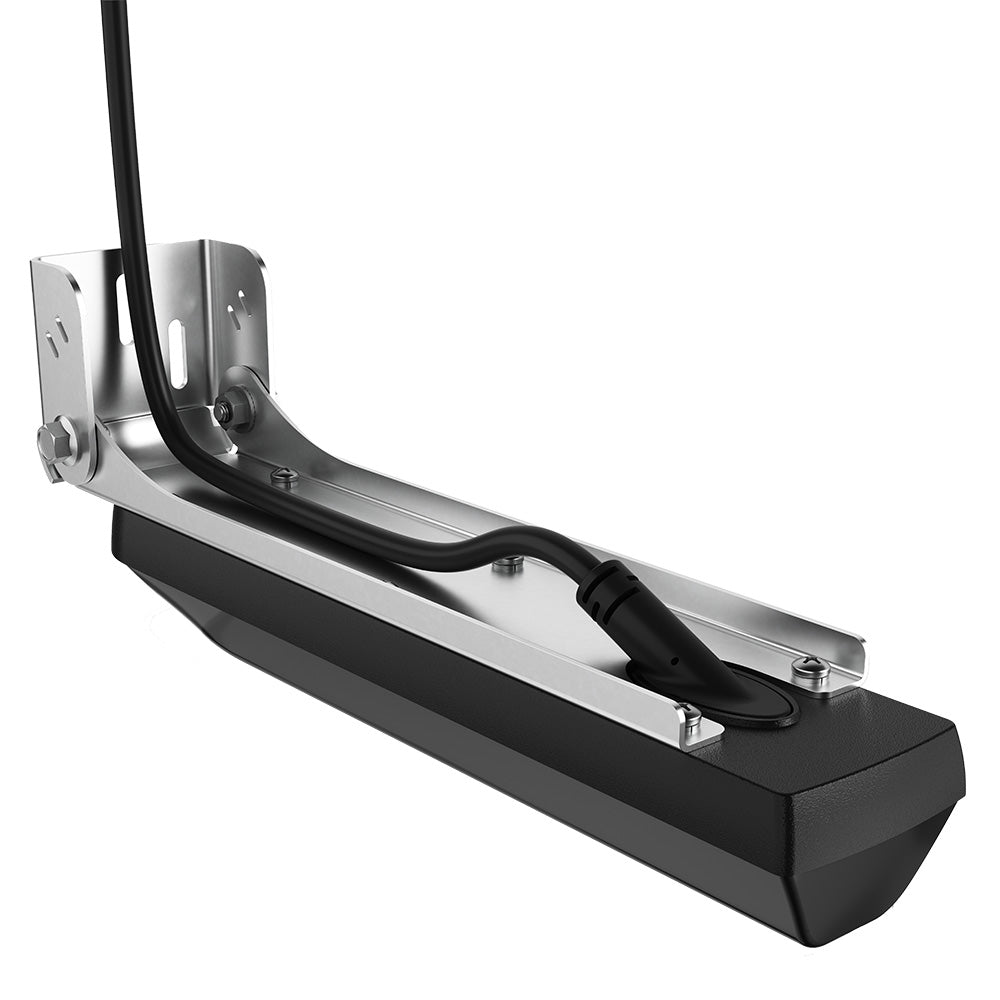

• Lowrance Active Imaging HD™ 3-in-1 FishReveal High/Wide Transducer
1 1

Lowrance

Lowrance Active Imaging HD™ 3-in-1 FishReveal High/Wide Transducer

Lowrance Active Imaging HD™ 3-in-1 FishReveal High/Wide Transducer

OM-LOWRANCE-ACTIVEIMAGINGH-00016061001

$418.06
$529.00 $418.06
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Lowrance Authorized Reseller
Authorized Lowrance ResellerGenuine Lowrance product with full U.S. manufacturer warranty.
Free standard shipping · every U.S. order, no minimum
Authorized Lowrance Reseller
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Frequently bought together

Total price:

FREE U.S. shipping on every item

Overview

25'Cable Length (Feet)
High WideChirp
Standard/Down/SideImaging
TransomMounting Style
9Pins
NoSpeed Included

The Lowrance Active Imaging HD 3-in-1 FishReveal High/Wide Transducer is a sonar transducer for anglers using compatible Lowrance electronics. It combines High/Wide CHIRP, SideScan, DownScan, and FishReveal views for reading fish and structure with supported displays and modules.

  • Product type: Active Imaging HD 3-in-1 FishReveal High/Wide transducer
  • Sonar types: Lowrance High/Wide CHIRP, SideScan Imaging, DownScan Imaging, and FishReveal
  • Imaging frequency: high-definition SideScan and DownScan up to 1.2MHz
  • CHIRP support: Medium and High/Wide CHIRP
  • Supported frequencies: 83/200kHz, 455/800kHz, and 455/1.2MHz
  • Coverage: High/Wide Lowrance CHIRP over a wider coverage area
  • Design: smart transducer design for improved signal clarity
  • Compatibility: connects directly to Lowrance HDS PRO or through an S3100 module
  • FishReveal SideScan note: requires S3100 sonar module on HDS PRO

Specifications

Cable Length (Feet)25'
ChirpHigh Wide
ImagingStandard/Down/Side
Mounting StyleTransom
Pins9
Speed IncludedNo
TemperatureYes
BrandLowrance
Manufacturer part #000-16061-001
UPC9420064130351
Boxed dimensions15 x 10 x 5 in
Shipping weight4.5 lb

Manuals & documents

Installation guidePDF ↓
