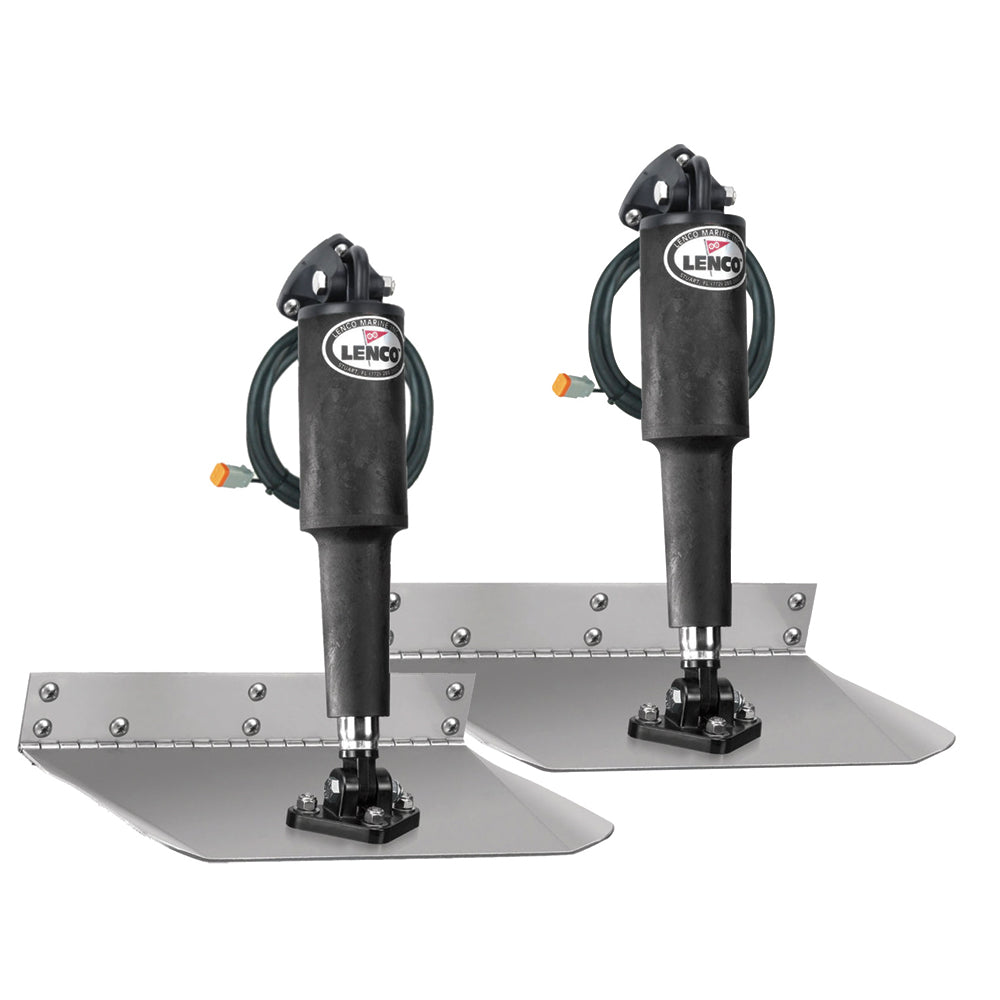

Lenco 9" x 9" Standard Trim Tab Kit without Switch Kit 12V

Lenco 9" x 9" Standard Trim Tab Kit without Switch Kit 12V

OM-LENCOMARINE-9X9-15000101

$512.44
$902.52 $512.44
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Frequently bought together

Total price:

FREE U.S. shipping on every item

Overview

For boats in the suggested 14- to 18-foot range, the Lenco Marine 9-inch by 9-inch standard mount trim tab kit provides electric adjustment of running trim. It pairs stainless steel blades with fast-response 12V actuators to help improve the ride, with a switch kit purchased separately.

Key features

  • Electric ballscrew actuators respond quickly when you adjust the tabs.
  • Fully submersible actuators accommodate operation in the water.
  • Waterproof Deutsch plug connections simplify wiring connections.
  • Two supplied 20-foot extension harnesses provide additional wiring reach.
  • Included brackets, stainless steel mounting hardware and an installation manual support setup.

Specifications

  • Brand: Lenco Marine
  • Mount type: Standard
  • Tab length: 9 inches
  • Tab width: 9 inches
  • Suggested boat length: 14–18 feet
  • Minimum transom height: 14 inches
  • Hinge height: 2 inches
  • Blade material: 12-gauge 304 stainless steel
  • Blade finish: Smooth
  • Flared trailing edge: 5/8 inch
  • Hinge pin diameter: 1/8 inch
  • Actuator voltage: 12V
  • Actuator bolts: 5/16-inch stainless steel
  • Actuator part number: 15054-001
  • Actuator lead length: 6 feet
  • Extension harness part number: 30133-103
  • Extension harness length: 20 feet
  • Upper bracket part number: 15085-001 (116)
  • Lower bracket part number: 50014-001 (119)
  • Compliance: CE certified

Good to know

A switch kit is sold separately. Supplied components comprise two blades, two actuators with Deutsch plugs, two extension harnesses, two upper brackets with gland seals, two lower brackets, the owner's/installation manual and all necessary stainless steel mounting hardware.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .

Specifications

BrandLenco Marine
Manufacturer part #15000-101
UPC874847004213
Boxed dimensions14 x 14 x 6 in
Shipping weight15.0 lb
Country of originUNITED STATES
