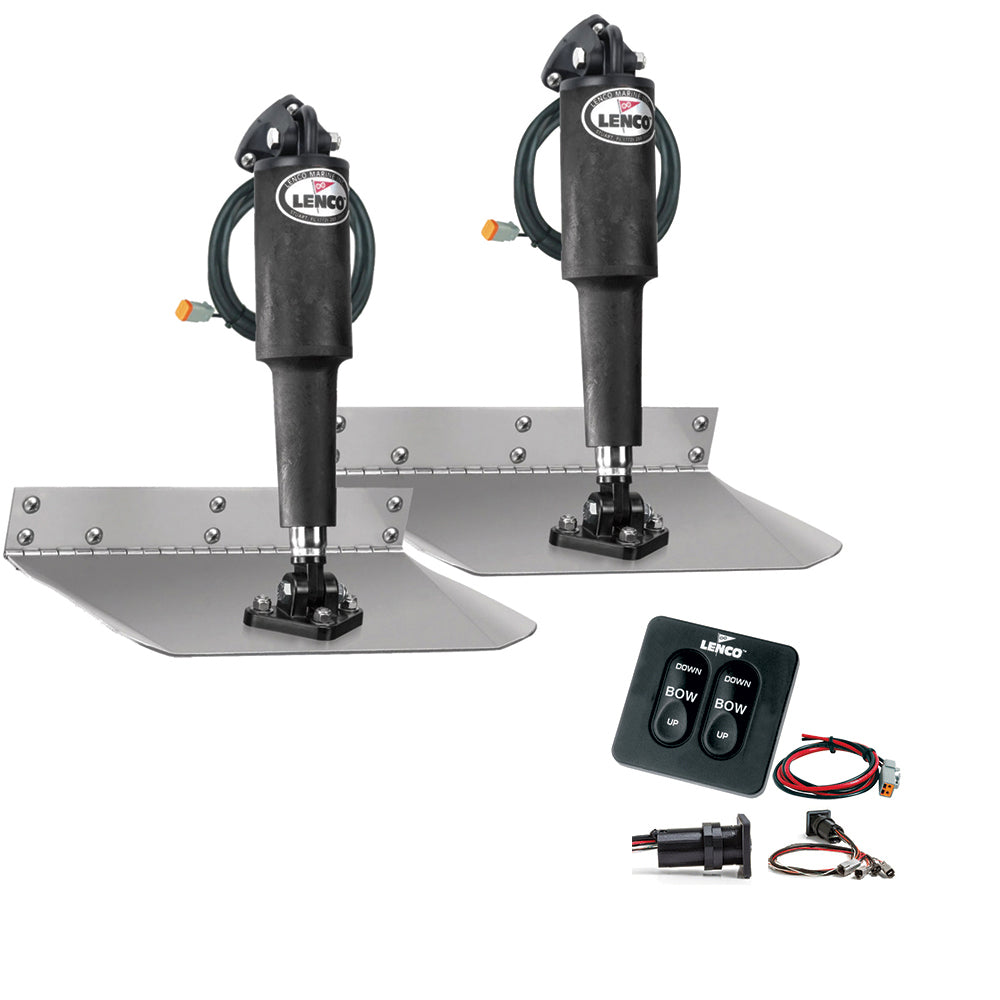

Lenco 9" x 9" Standard Trim Tab Kit w/Standard Tactile Switch Kit 12V

Adjust your boat's ride with the Lenco Marine 9" x 9" Standard Trim Tab Kit and its included tactile switch kit. Electric actuators respond immediately for precise control, while the self-locking ballscrew holds its position even when backing down.

Key features

• Electric actuation delivers immediate trim adjustments without hydraulic oil.
• The self-locking ballscrew prevents drift after you set the tabs.
• Fully submersible components are sealed for life and require no maintenance.
• Corrosion-proof mounts and ultraviolet-resistant actuator cases suit exposure aboard a boat.
• The tactile switch system includes a built-in retractor and a low-profile keypad.
• Deutsch connectors provide plug-and-play connections for installation.

Specifications

• Trim tab dimensions: 9" x 9"
• System voltage: 12V
• Trim tab planes: 12-gauge, laser-cut stainless steel
• Actuator cases: High-impact, 50% glass fiber-filled, ultraviolet-resistant nylon
• Rams: 316 super buff stainless steel
• Switch kit: Standard Solid State Tactile Switch Kit with Retractor Feature
• Switch kit part number: 15069-001 (124SSR)
• Switch compatibility: 12V single actuator systems
• Control box: Waterproof, sealed, self-contained, solid state
• Actuator lead length: 6 feet
• Actuator extension harness length: 20 feet
• Control box power pigtail length: 36"
• Keypad cut-out size: 2"

Good to know

The kit contains a Standard Tactile Switch Kit, two 12V actuators with Deutsch connectors, two actuator extension harnesses with Deutsch connectors, two stainless steel trim tab blades, two upper mounting brackets with gland seals, two lower mounting brackets and all necessary stainless steel mounting hardware. The switch kit includes the control box power pigtail and nylon nuts for keypad mounting.
