• Lenco 9" x 9" Edgemount Trim Tab Kit w/LED Indicator Switch Kit 12V
1 1

Lenco Marine

Lenco 9" x 9" Edgemount Trim Tab Kit w/LED Indicator Switch Kit 12V

Lenco 9" x 9" Edgemount Trim Tab Kit w/LED Indicator Switch Kit 12V

OM-LENCOMARINE-9X9-TT9X9EI

$864.00
$1,450.33 $864.00
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 2 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Frequently bought together

Total price:

FREE U.S. shipping on every item

Overview

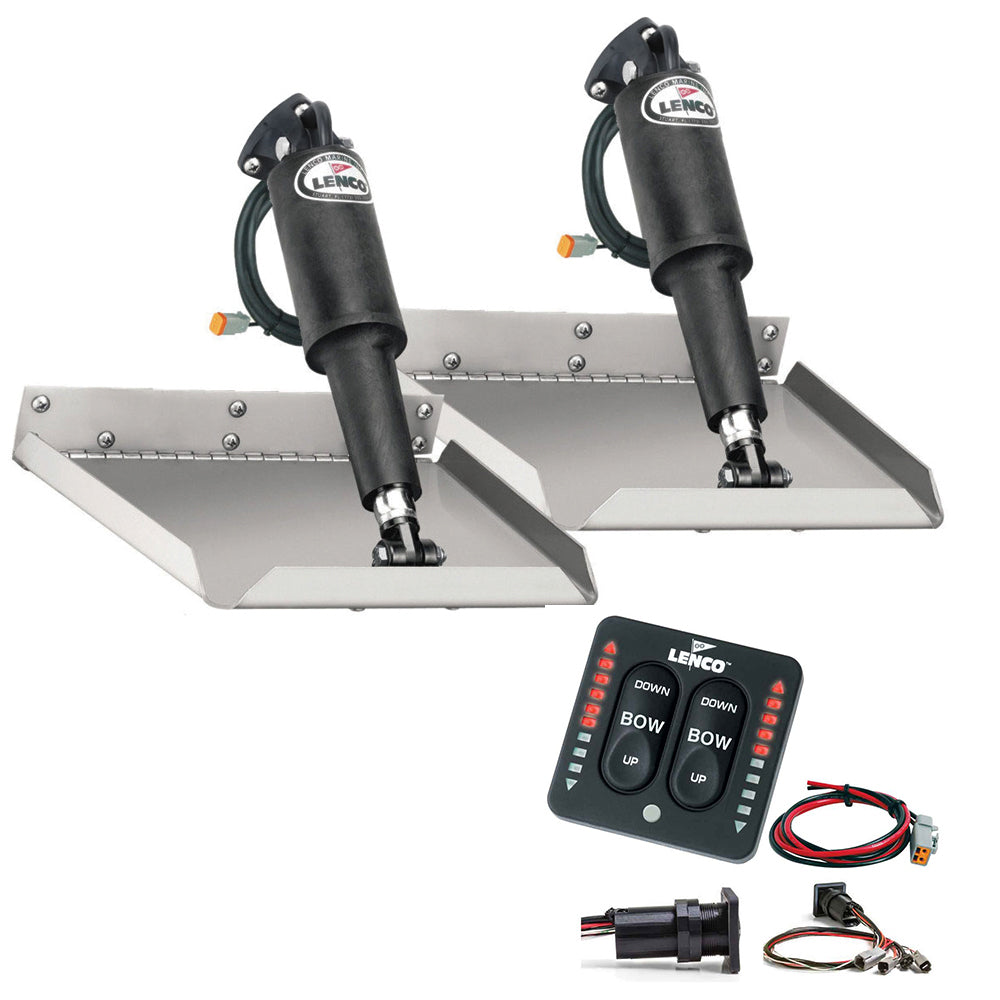

This Lenco Marine trim tab kit pairs 9 inch by 9 inch edge-mount tab planes with electric actuators and a tactile LED indicator switch kit. The edge-mount layout positions the actuator at the trailing edge of the plane and requires 4 inches less transom height than a standard mount.

  • Tab size: 9 inches x 9 inches
  • Mount style: edge mount
  • Voltage: 12V kit with switch compatibility for 12 and 24 volts
  • Actuator design: instant-response electric actuators with self-locking ballscrew operation
  • Sealing: actuators are fully submersible, maintenance-free, and sealed for life
  • Tab planes: 12-gauge laser-cut stainless steel
  • Actuator housing: high-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case
  • Rams: 316 super buff stainless steel
  • Switch kit: sealed keypad and sealed control box module with laser-engraved graphics
  • Switch wiring: plug-and-play wiring harness connector with 36 inch power pigtail for the control box
  • Switch size: 2 inch hole cut-out; 2.75 inches x 2.75 inches overall
  • Indicator: two high-intensity LED displays show trim tab position
  • Light sensing: photo eye adjusts LED indicator intensity for ambient light
  • Retract function: returns tabs to the fully retracted position when power is removed
  • Self-check: includes self-check feature
  • Included: tactile LED indicator switch kit, two actuators with 6 foot leads and Deutsch plugs, two 20 foot actuator extension wiring harnesses, two stainless steel trim tab planes, two upper mounting brackets with gland seals, two lower mounting brackets, and stainless steel mounting hardware

Specifications

BrandLenco Marine
Manufacturer part #TT9X9EI
Boxed dimensions14 x 14 x 6 in
Shipping weight16.2 lb
Country of originUS
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manuals & documents

Product brochurePDF ↓
