• Lenco 9" x 12" Edge Mount Trim Tab Kit w/LED Indicator Switch Kit
1 1

Lenco Marine

Lenco 9" x 12" Edge Mount Trim Tab Kit w/LED Indicator Switch Kit

Lenco 9" x 12" Edge Mount Trim Tab Kit w/LED Indicator Switch Kit

OM-LENCOMARINE-9X12-TT9X12EI

$886.81
$1,489.67 $886.81
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Lenco Marine Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

Stainless SteelConstruction

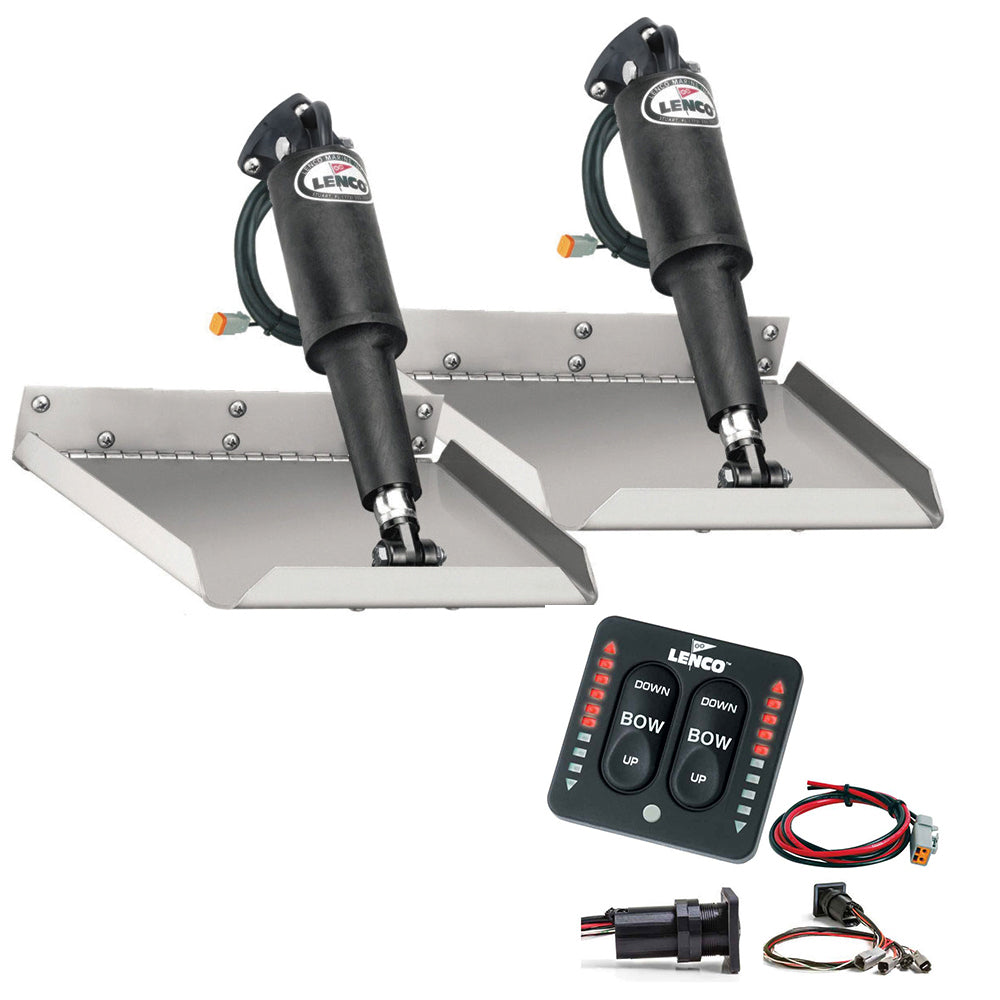

This Lenco Marine kit pairs 9 inch by 12 inch edge mount trim tabs with an LED indicator switch kit. It is intended for single actuator trim tab systems and includes electric actuators, stainless steel blades, wiring, brackets, hardware, and the control components listed below.

  • Trim tab size: 9 inch length by 12 inch width
  • Suggested boat length: 16' to 25'
  • Hinge height: 2 inches
  • Minimum transom height: 13.5 inches
  • Blades: 12-gauge stainless steel, smooth finish
  • Class: Fuel Efficient
  • Compliance: CE Certified
  • Compatibility: Any boat
  • Actuators: Fast-response electric actuators with plug and play waterproof Deutsch connections
  • Included: Two 12-gauge stainless steel trim tab blades
  • Included: Two #15054-001 actuators with 6' leads and Deutsch plugs
  • Included: Two #30133-103 20' actuator extension wiring harnesses
  • Included: Two #15085-001 (116) upper mounting brackets with gland seal
  • Included: Two #50014-001 (119) lower mounting brackets
  • Included: Lenco owner's and installation manual plus necessary stainless steel mounting hardware
  • Switch kit: LED indicator switch kit with built-in retractor and self-check features
  • Switch use: For single actuator systems, 12 and 24-volt
  • Switch features: Waterproof tactile switch, over-molded connector, LED tab position indicators, backlit keypad, and photo eye for indicator intensity adjustment
  • Switch kit contents: Self-contained sealed keypad control box and 36 inch power pigtail

Specifications

ConstructionStainless Steel
BrandLenco Marine
Manufacturer part #TT9X12EI
Boxed dimensions14 x 13 x 5 in
Shipping weight18.85 lb
Country of originUS
