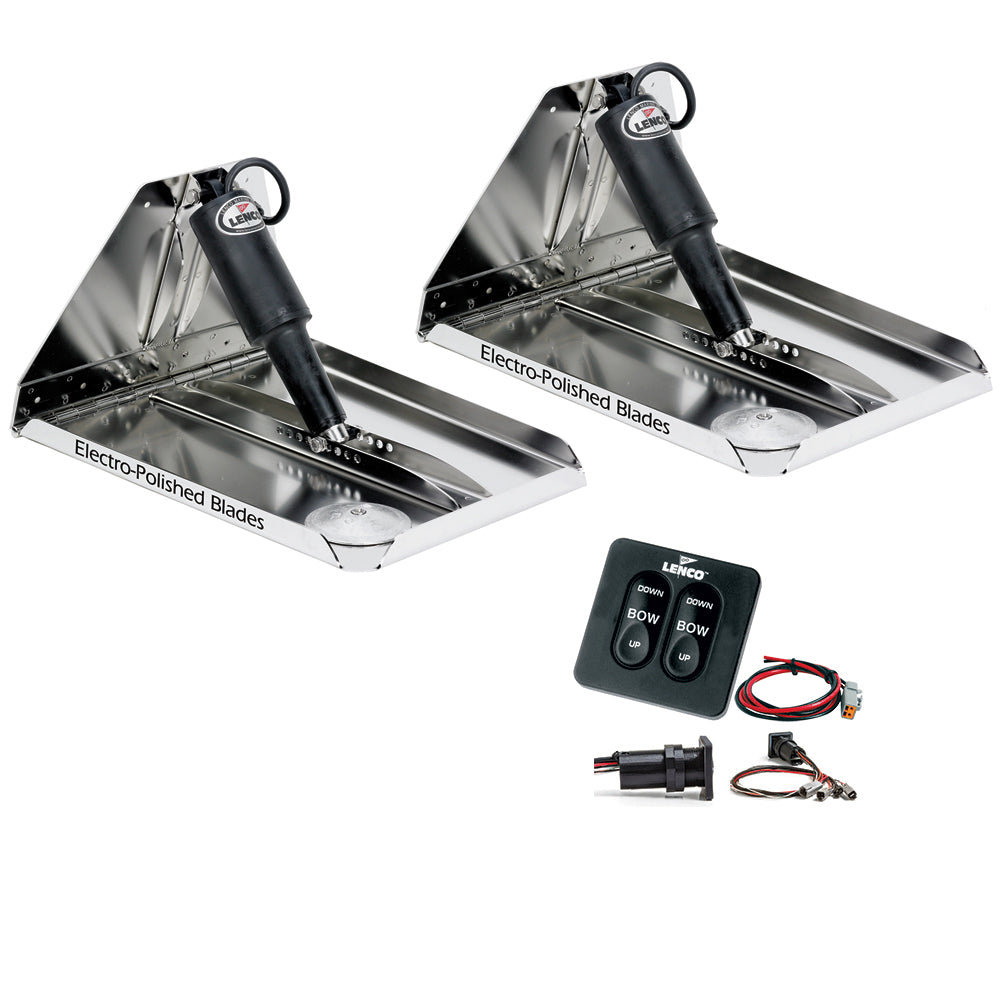

Lenco 16" x 12" Heavy Duty Performance Trim Tab Kit w/Standard Tactile Switch Kit 12V

For boaters who need responsive trim adjustment, this Lenco Marine kit pairs heavy-duty trim tabs with electric actuators and a standard tactile switch. The factory-assembled system combines reinforced mounting components with precise actuator control.

Key features

• Fast-responding electric actuators let you make controlled trim adjustments.
• Sealed, maintenance-free actuators can operate fully submerged.
• Deutsch plug connections simplify wiring between system components.
• A full transom back plate and adjustable C-channel brackets support the mounting assembly.
• The low-profile tactile switch includes a built-in retractor function.
• A sealed keypad and waterproof solid-state control box protect the control components from water.

Specifications

• Trim tab dimensions: 16 x 12 inches
• System voltage: 12V
• Blades: Electropolished 12-gauge 304 stainless steel
• Blade edges: 1-inch upturned edges
• Inside taper: 85 degrees
• Hinge pin diameter: 1/4 inch
• Actuator bolts: 5/16-inch stainless steel
• Actuator rams: Chemically polished solid stainless steel billet
• Actuator case: UV-resistant nylon with 50% glass fiber fill
• Sacrificial anodes: 3.75 inches
• Switch kit: Standard Solid State Tactile Switch Kit #15069-001 (124SSR)
• Switch application: 12V single-actuator systems
• Keypad cutout: 2 inches
• Control box power pigtail: 36 inches
• Actuator leads: 6 feet each
• Actuator extension harnesses: 20 feet each

Good to know

Included are the standard tactile switch kit, two actuators with Deutsch plugs, two trim tab planes and two actuator extension wiring harnesses. Nylon keypad mounting nuts are included; boat-mounting hardware must be supplied separately.
