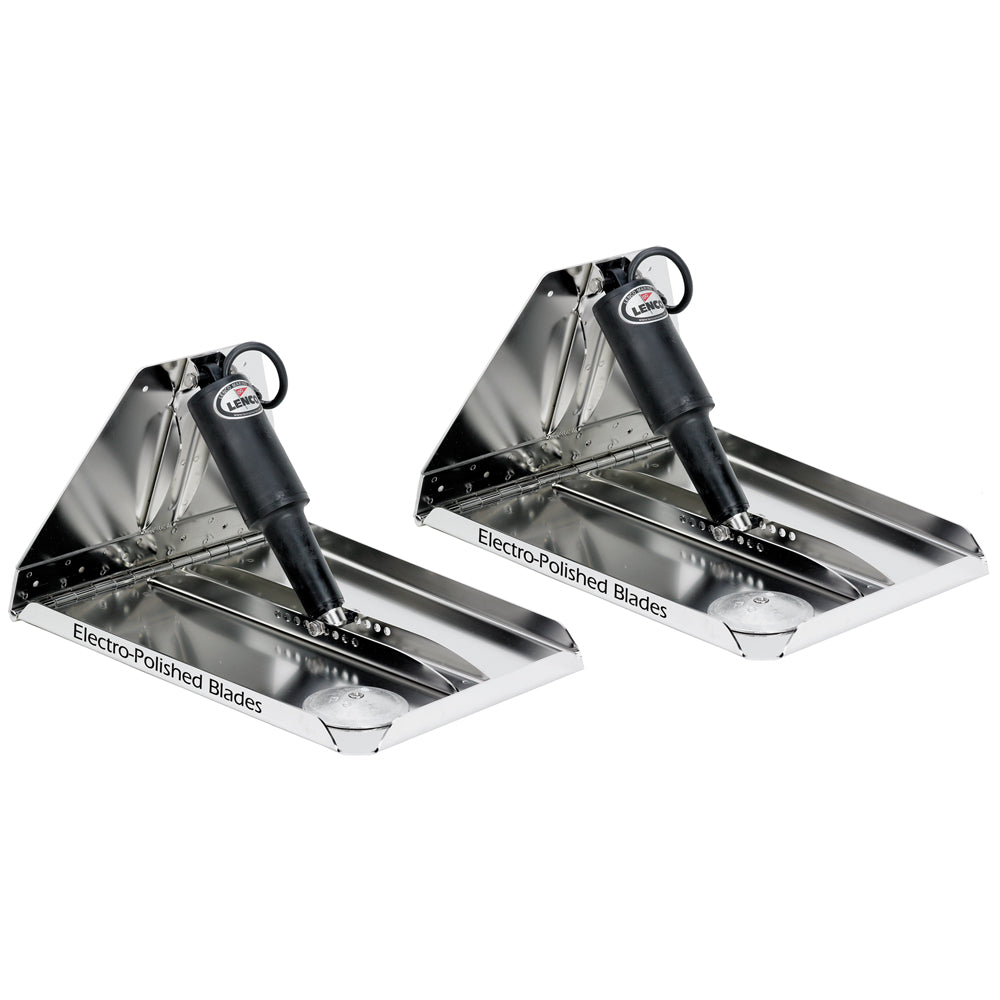

Lenco 16" x 12" Heavy Duty Performance Trim Tab Kit w/o Switch Kit 12V

For boat owners seeking precise electric trim adjustment, the Lenco Marine 16-inch by 12-inch Heavy Duty Performance kit combines polished stainless steel tabs with Extreme Duty actuators. Suggested for boats from 20 to 38 feet, the factory-assembled kit requires a separately purchased switch kit.

Key features

• Electric Extreme Duty actuators provide precise control of tab position.
• Fully submersible construction and plug-in Deutsch connections support installation aboard the boat.
• Factory assembly brings together the full transom back plate, cable seal and adjustable C-channel brackets.
• Supplied actuator extension harnesses provide 20 feet of additional wiring reach.
• A mechanical strain-relief cable seal supports the cable at its entry point.

Specifications

• Tab length: 16 inches
• Tab width: 12 inches
• Suggested boat length: 20–38 feet
• Minimum transom height: 10.5 inches
• Blade material: 12-gauge 304 stainless steel
• Blade finish: Electro-polished
• Blade edges: 1-inch upturn
• Inside taper: 85 degrees
• Hinge pin diameter: 1/4 inch
• Actuator bolts: 5/16-inch stainless steel
• Actuator voltage: 12V
• Actuators: 2 × 15055-001 XD, with 6-foot leads and Deutsch plugs
• Extension harnesses: 2 × 30133-103, 20 feet each
• Sacrificial anodes: 3.75 inches
• Required switch kit: 15069-001 or 15070-001
• Certification: CE

Good to know

Included are two trim tab blades, two actuators, two extension wiring harnesses and the owner's/installation manual. The switch kit is sold separately, and the customer must supply the hardware used to mount the kit to the boat.
