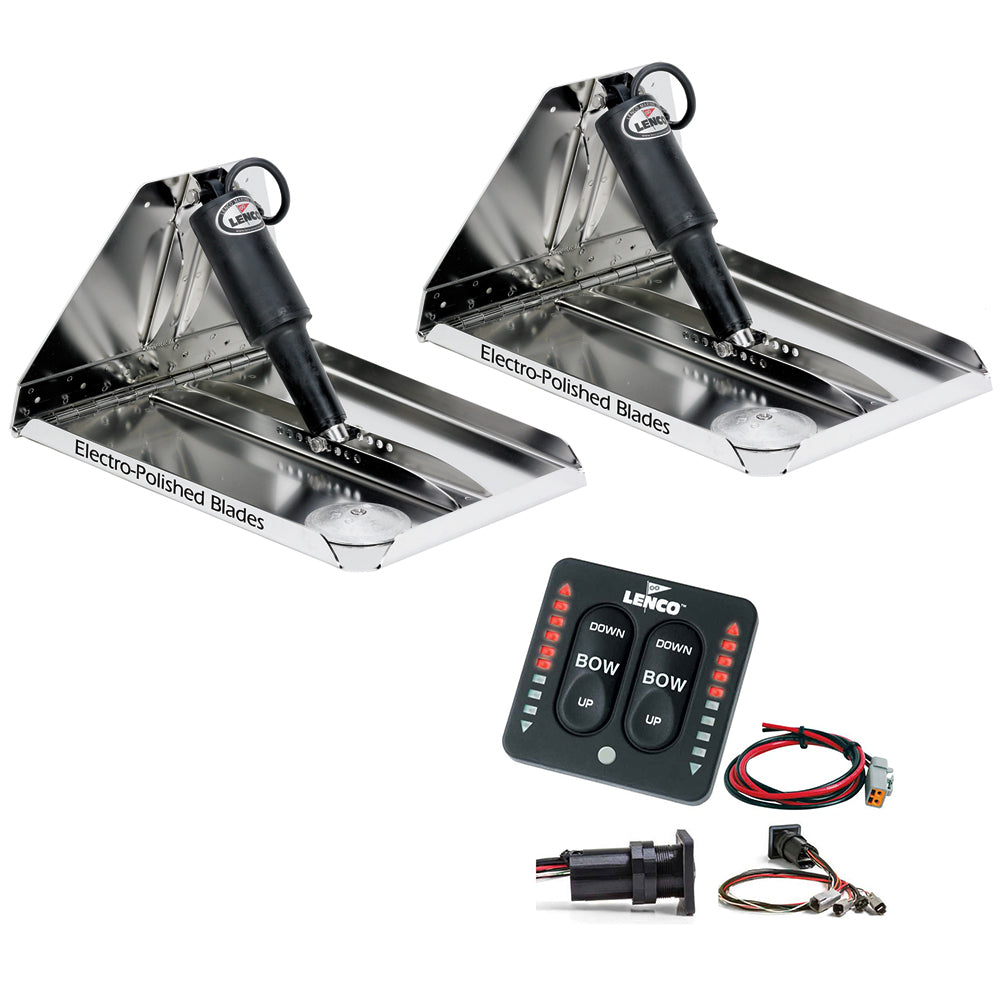

Lenco 16" x 12" Heavy Duty Performance Trim Tab Kit w/LED Indicator Switch Kit 12V
Lenco 16" x 12" Heavy Duty Performance Trim Tab Kit w/LED Indicator Switch Kit 12V
SKU:OM-LENCOMARINE-16X12-RT16X12HDI
Low stock: 1 left
Couldn't load pickup availability
Frequently bought together
FREE U.S. shipping on every item
Overview
See trim tab position while making adjustments with this Lenco Marine heavy-duty kit and its LED indicator switch. The 12V system pairs responsive electric actuators with 16 x 12-inch tabs for boaters seeking precise trim control.
Key features
- Two LED displays show tab position so you can check adjustments at the controls.
- An ambient-light sensor changes display brightness to suit the surrounding light.
- Automatic retraction brings the tabs fully up when power is removed.
- Fully submersible, sealed actuators deliver quick response without routine actuator maintenance.
- Deutsch plug connections simplify installation of the system wiring.
- A full transom back plate and adjustable mounting channels provide support for the through-bolted actuators.
Specifications
- Trim tab dimensions: 16 x 12 inches
- System voltage: 12V
- Blades: Electropolished 12-gauge 304 stainless steel
- Blade edges: 1-inch upturned edges
- Inside taper: 85 degrees
- Hinge pin diameter: 1/4 inch
- Actuator bolts: 5/16-inch stainless steel
- Actuator rams: Chemically polished solid stainless steel billet
- Actuator case: UV-resistant nylon with 50% glass fiber fill
- Sacrificial anodes: 3.75 inches
- Switch: Tactile LED indicator switch with self-check feature
- Switch voltage compatibility: 12V and 24V
- Switch application: Single-actuator trim tab systems
- Switch overall dimensions: 2.75 x 2.75 inches
- Switch cutout: 2 inches
- Control box power pigtail: 36 inches
- Actuator leads: 6 feet each
- Actuator extension harnesses: 20 feet each
Good to know
The package contains the tactile LED indicator switch kit, two actuators with Deutsch plugs, two trim tab planes and two actuator extension wiring harnesses. Boat-mounting hardware must be supplied separately.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of
Specifications
| Brand | Lenco Marine |
|---|---|
| Manufacturer part # | RT16X12HDI |
| Boxed dimensions | 23 x 16 x 14 in |
| Shipping weight | 39.2 lb |
| Country of origin | US |
