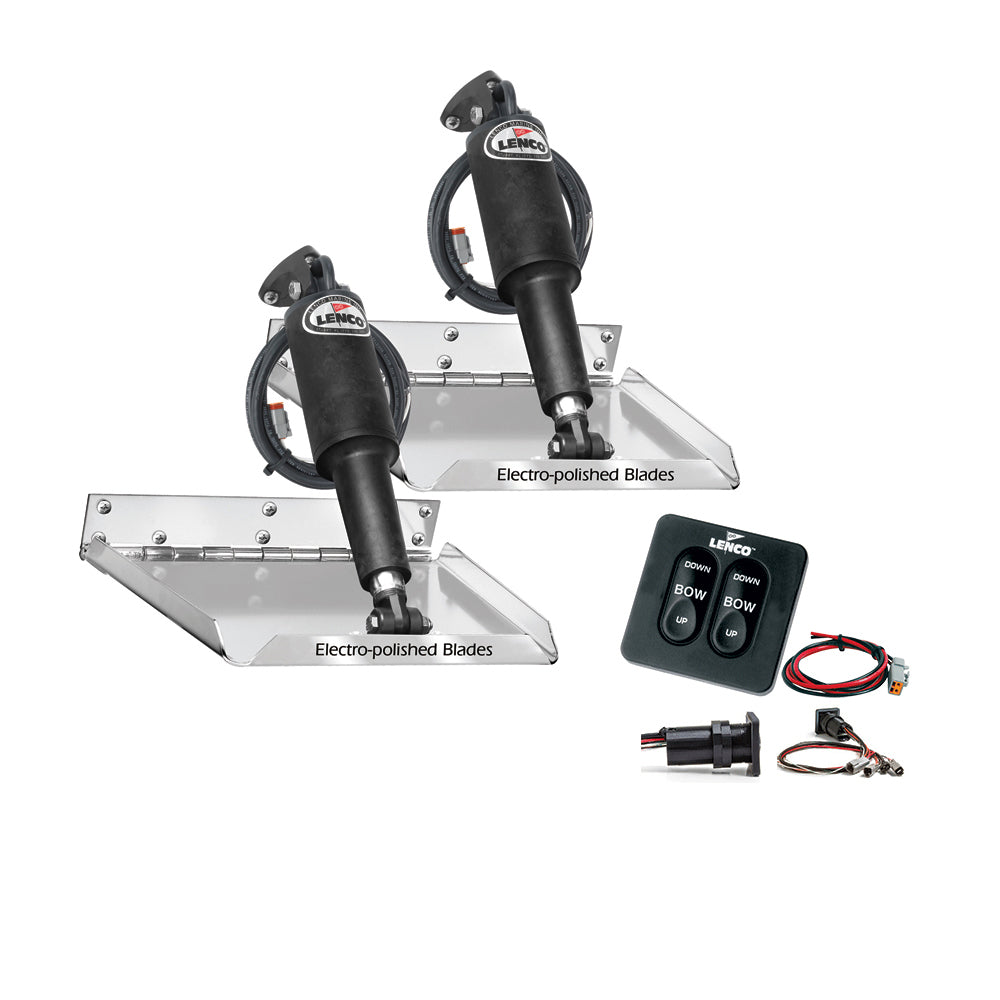

Lenco 12" x 9" Standard Performance Trim Tab Kit w/Standard Tactile Switch Kit 12V
Lenco 12" x 9" Standard Performance Trim Tab Kit w/Standard Tactile Switch Kit 12V
SKU:OM-LENCOMARINE-12X9-RT12X9
Low stock: 1 left
Couldn't load pickup availability
Frequently bought together
FREE U.S. shipping on every item
Overview
Bring responsive trim-tab control to your boat with Lenco's 12V Standard Performance kit. The package pairs 12 x 9-inch stainless steel tabs with two actuators and a Standard Tactile Switch Kit, giving boaters precise actuator movement and a built-in retractor function.
Key features
- Actuators respond immediately with controllable movement for precise adjustments.
- Sealed-for-life, fully submersible actuators require no maintenance.
- Electropolished stainless steel blades retain their appearance, with no dissimilar metals in the tab construction.
- UV-resistant actuator cases use high-impact, glass fiber-filled nylon.
- A sealed keypad and waterproof solid-state control box provide tactile operation with a built-in retractor.
- Deutsch plug connections and supplied wiring harnesses simplify installation.
Specifications
- Series: Standard Performance
- Tab dimensions: 12 x 9 inches
- System voltage: 12V
- Tab construction: 12-gauge 304 stainless steel
- Blade finish: Electropolished
- Turned-up edge height: 1 inch
- Inside taper: 2 inches
- Actuator through bolts: 5/16-inch stainless steel
- Actuator case: UV-resistant nylon with 50% glass fiber fill
- Switch kit: Standard Solid State Tactile Switch Kit with Retractor
- Switch kit part number: 15069-001 (124SSR)
- Keypad cutout: 2 inches
- Control box power pigtail length: 36 inches
- Actuator lead length: 6 feet
- Actuator extension harness length: 20 feet each
Good to know
The switch kit is specified for 12V single-actuator systems. Included are the Standard Tactile Switch Kit, two actuators with leads and Deutsch plugs, two trim tab planes, two actuator extension harnesses, two upper mounting brackets with gland seals, two lower mounting brackets and the necessary stainless steel mounting hardware. The switch kit includes a power pigtail and nylon keypad mounting nuts.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .
Specifications
| Brand | Lenco Marine |
|---|---|
| Manufacturer part # | RT12X9 |
| Boxed dimensions | 15 x 14 x 5 in |
| Shipping weight | 20.58 lb |
| Country of origin | US |
Manuals & documents
