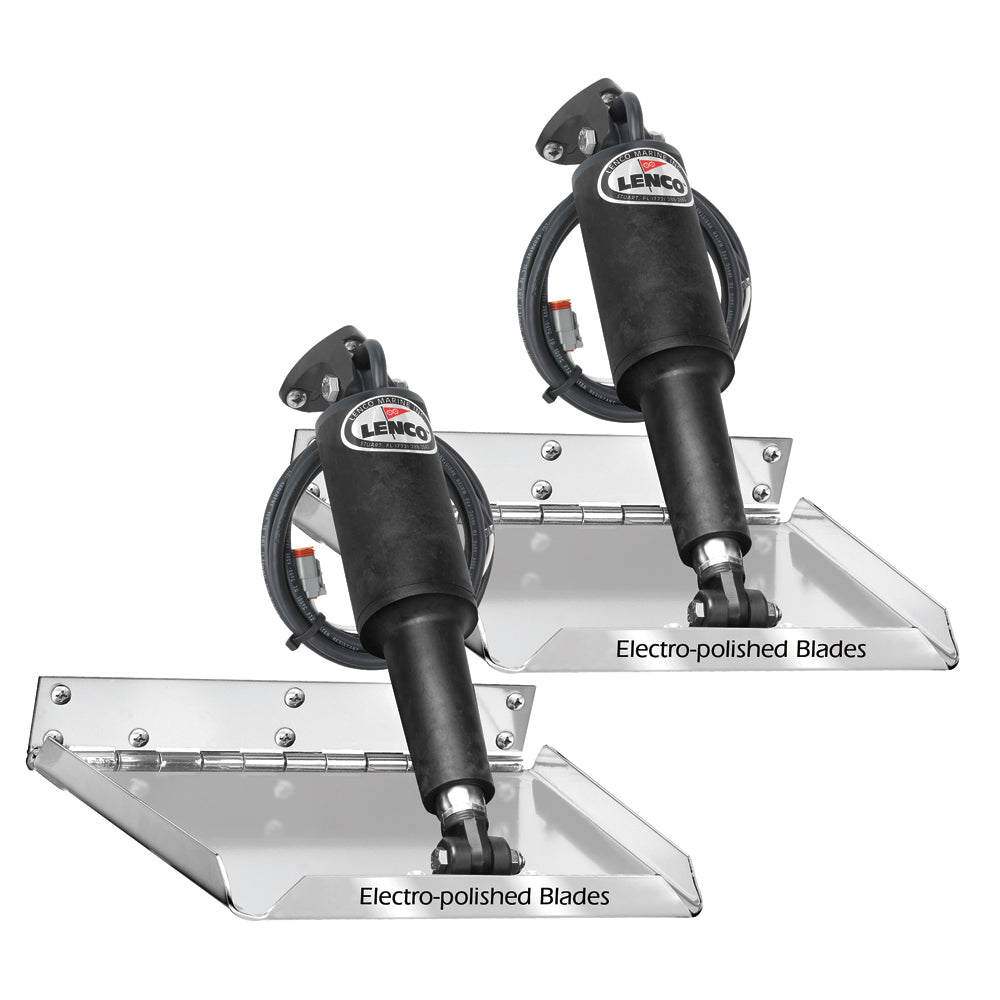

Lenco 12" x 9" Standard Performance Trim Tab Kit w/o Switch Kit 12V

For boats in the suggested 16' to 26' range, this Lenco Marine Standard Performance kit provides electric trim control through a pair of 12" x 9" tabs. Stainless steel blades and fast-response 12V actuators form the system, with a switch kit purchased separately.

Key features

• Fast-response electric actuators give you precise control over tab adjustments.
• Fully submersible actuators support operation in the marine environment.
• Plug-and-play Deutsch connections simplify connecting the wiring.
• Electro-polished stainless steel blades pair turned-up edges with a 1/4" hinge pin.
• Included brackets, extension harnesses and mounting hardware provide the installation components listed below.

Specifications

• Tab length: 12"
• Tab width: 9"
• Suggested boat length: 16' to 26'
• Minimum transom height: 11"
• Blade material: 12-gauge 304 stainless steel
• Blade finish: Electro-polished
• Turned-up edge height: 1"
• Hinge pin diameter: 1/4"
• Actuator bolt size: 5/16"
• Actuator bolt material: Stainless steel
• Actuator voltage: 12V
• Actuator mounting position: Blade trailing edge
• Actuator part number: 15054-001
• Actuator lead length: 6'
• Extension harness part number: 30133-103
• Extension harness length: 20'
• Upper bracket part number: 15085-001 (#116)
• Lower bracket part number: 50014-001 (#119)
• Compliance: CE certified

Good to know

A switch kit is sold separately. Supplied components include two blades, two actuators with Deutsch plugs, two extension harnesses, two upper brackets with gland seals, two lower brackets, stainless steel mounting hardware and an owner's/installation manual.
