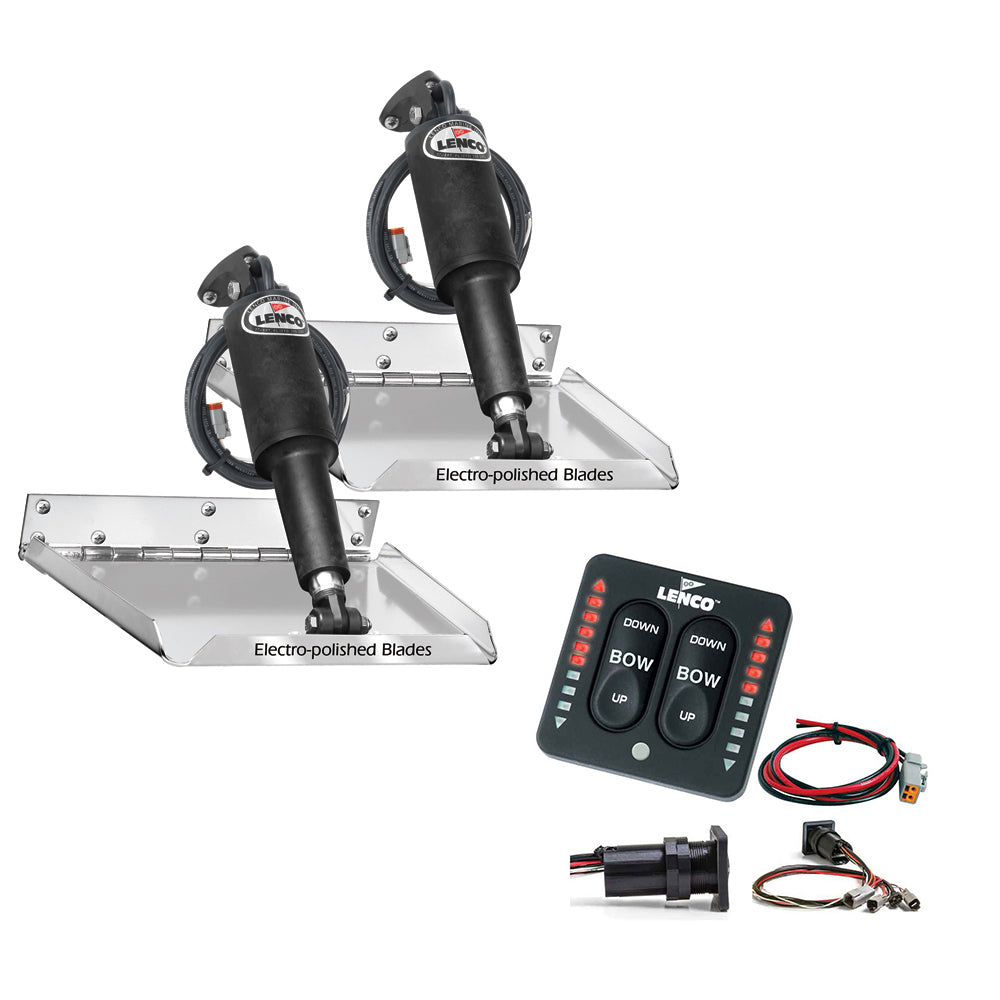

Lenco 12" x 9" Standard Performance Trim Tab Kit w/LED Indicator Switch Kit 12V

Put trim adjustment and tab-position feedback at your fingertips with this Lenco Marine 12V Standard Performance kit. For boaters who want responsive control, it pairs 12" x 9" stainless steel tabs with electric actuators and an LED indicator switch.

Key features

• Responsive actuators let you make precise, controlled tab adjustments.
• Two LED displays show tab position, while a photo eye adjusts their brightness as ambient light changes.
• Automatic retraction brings the tabs fully up when power is removed.
• Sealed, fully submersible actuators require no maintenance.
• Plug-and-play switch wiring simplifies the electrical connection.
• Laser-engraved switch graphics resist fading and smudging to keep controls readable.

Specifications

• Tab dimensions: 12" x 9"
• Kit voltage: 12V
• Tab construction: 12-gauge 304 stainless steel
• Blade finish: Electro-polished
• Blade edges: 1" turned up with 2" inside taper
• Actuator through bolts: 5/16" stainless steel
• Actuator case: High-impact, ultraviolet-resistant nylon with 50% glass fiber fill
• Switch voltage compatibility: 12V and 24V
• Switch cutout: 2"
• Switch overall dimensions: 2.75" x 2.75"
• Control box power pigtail: 36"
• Actuator lead length: 6'
• Actuator extension harness length: 20'

Good to know

The kit supplies one tactile LED indicator switch kit, two actuators with Deutsch plugs, two trim tab planes, two extension wiring harnesses, two upper mounting brackets with gland seals, two lower mounting brackets and all necessary stainless steel mounting hardware. The switch includes a self-check function.
