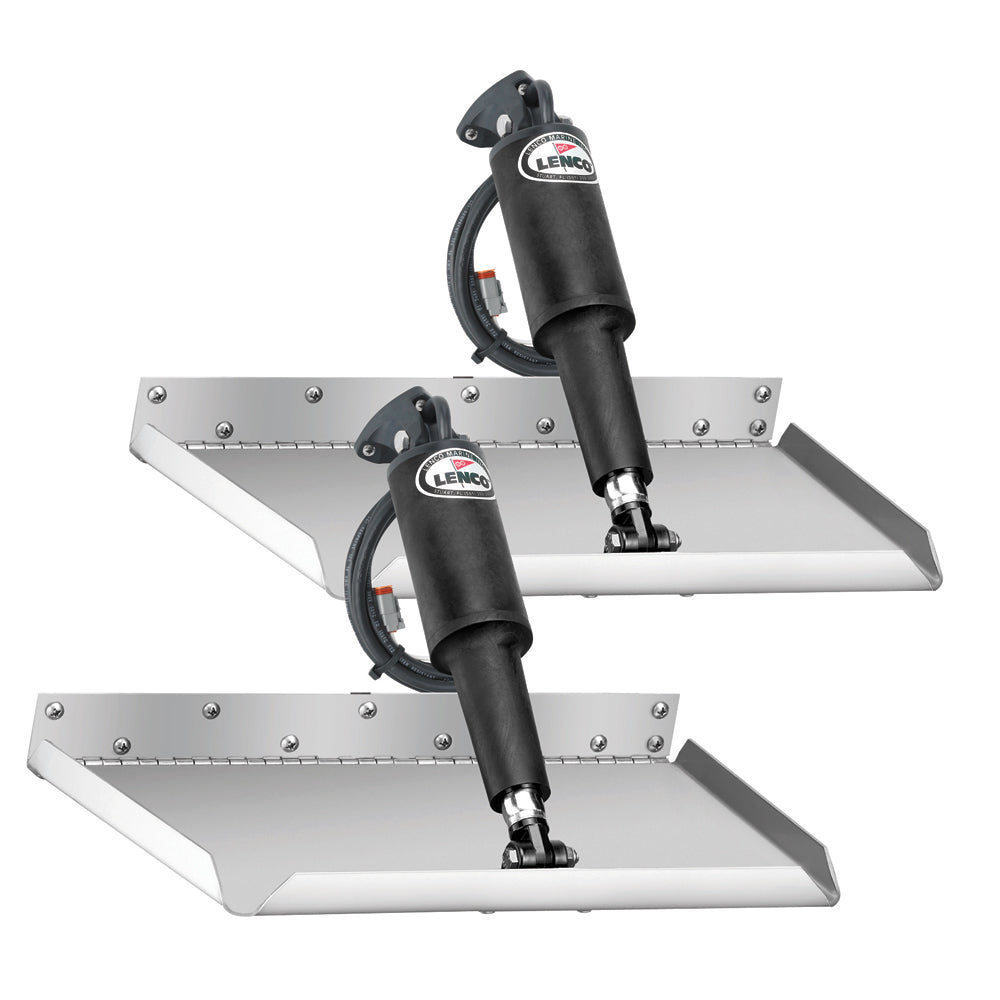

Lenco 12" x 9" Edgemount Trim Tab Kit w/LED Indicator Switch Kit 12V

This Lenco Marine trim tab kit pairs 12" x 9" edge-mount trim tab planes with an LED indicator switch kit for a 12V installation. The edge-mount layout places the actuator at the trailing edge of the plane and needs 4" less transom height than a standard mount.

The kit uses electric actuators with sealed, submersible construction and stainless steel tab planes. It is set up for single-actuator trim tab systems and includes the wiring, brackets, hardware, and tactile LED switch components listed below.

• Trim tab size: 12" x 9"
• System voltage: 12V
• Mount style: Edge mount
• Trim tab planes: 12-gauge laser-cut stainless steel
• Actuator design: Electric ballscrew with instant response
• Actuator construction: Fully submersible, sealed for life, maintenance-free
• Self-locking ballscrew: Helps prevent tab drift, including while backing down
• Actuator case: High-impact, 50% glass fiber-filled, ultraviolet-resistant nylon
• Rams: 316 super buff stainless steel
• Mounts: High-impact corrosion-proof mounts
• Switch kit: Tactile LED indicator switch kit for single-actuator trim tab systems
• Switch features: Sealed keypad, sealed control box module, laser-engraved graphics, plug-and-play wiring harness connector
• Control box power pigtail: 36"
• Switch cut-out: 2"
• Switch overall size: 2.75" x 2.75"
• Indicator display: Two high-intensity LED displays show trim tab position
• Light sensing: Photo eye adjusts LED display intensity for ambient light
• Retract function: Returns tabs to fully retracted position when power is removed
• Switch compatibility: 12 and 24 volt
• Additional switch feature: Self-check feature
• Kit includes: Tactile LED indicator switch kit, 2 actuators with 6' lead and Deutsch plugs, 2 20' actuator extension wiring harnesses, 2 stainless steel trim tab planes, 2 upper mounting brackets with gland seal, 2 lower mounting brackets, and stainless steel mounting hardware
• Warning: Can expose users to di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm
