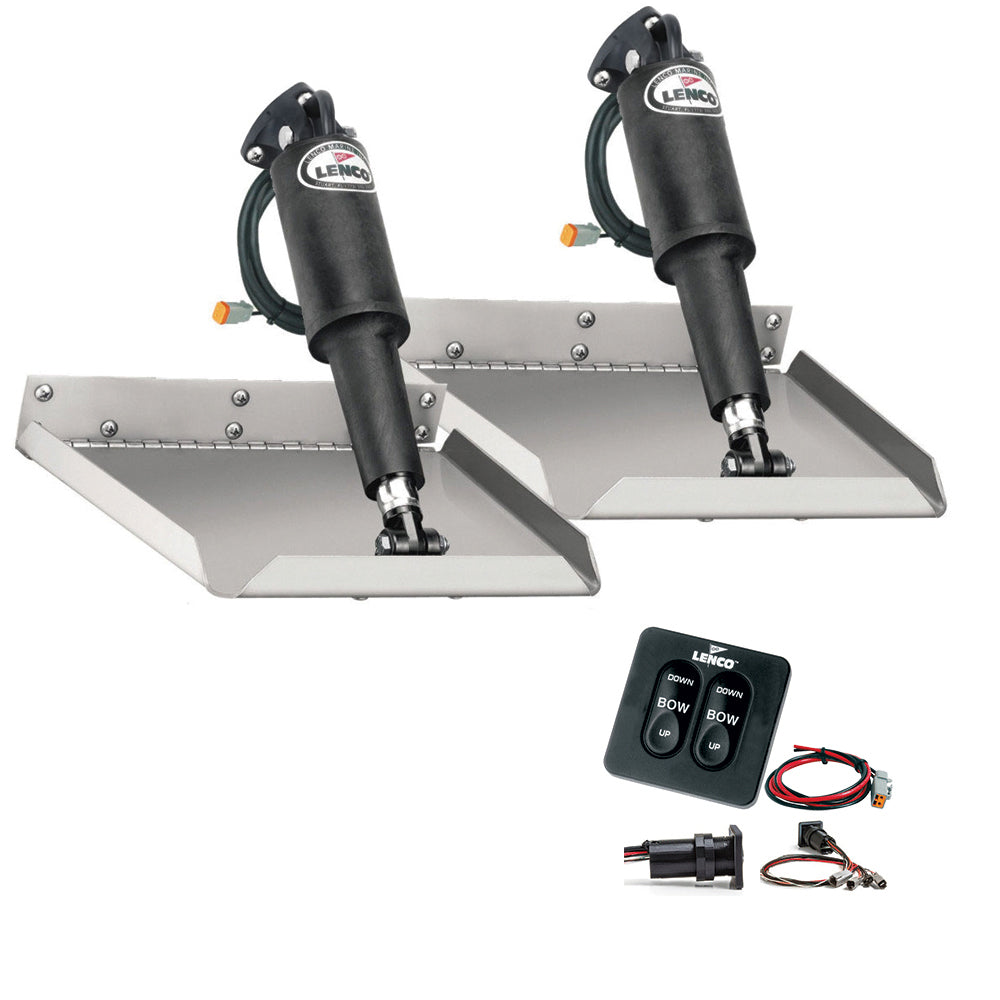

Lenco 12" x 9" Edgemount Kit w/Standard Tactile Switch Kit 12V

This Lenco Marine edgemount trim tab kit is a 12V system with 12" x 9" stainless steel planes and a standard tactile switch kit. The edgemount design places the actuator at the trailing edge of the plane and requires 4" less transom height than a standard mount.

The kit uses electric actuators with sealed, submersible construction and a self-locking ballscrew design. It includes the standard solid state tactile switch kit with built-in retractor for 12-volt single actuator systems.

• Brand: Lenco Marine
• Product type: Edgemount trim tab kit
• Voltage: 12V
• Trim tab plane size: 12" x 9"
• Mount style: Edgemount actuator placement at the trailing edge of the plane
• Transom clearance: Requires 4" less transom height than standard mount
• Trim tab planes: 12-gauge laser cut stainless steel
• Actuators: Electric actuators with instant response and 6' leads with Deutsch plugs
• Actuator housing: High-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case
• Rams: 316 super buff stainless steel
• Switch kit: Standard solid state tactile switch kit with retractor feature, part #15069-001 (124SSR)
• Control box: Waterproof, self-contained, sealed, solid state, and Deutsch connected
• Power pigtail: 36"
• Cut-out size: 2" hole
• Overall keypad size: 2.75" x 2.75"
• Included: Standard tactile switch kit, 2 actuators, 2 20' actuator extension wiring harnesses, 2 stainless steel trim tab planes, 2 upper mounting brackets with gland seal, 2 lower mounting brackets, and stainless steel mounting hardware
• Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm
• Return note: This product may not be returned to the original point of purchase; contact the manufacturer directly with issues or concerns
