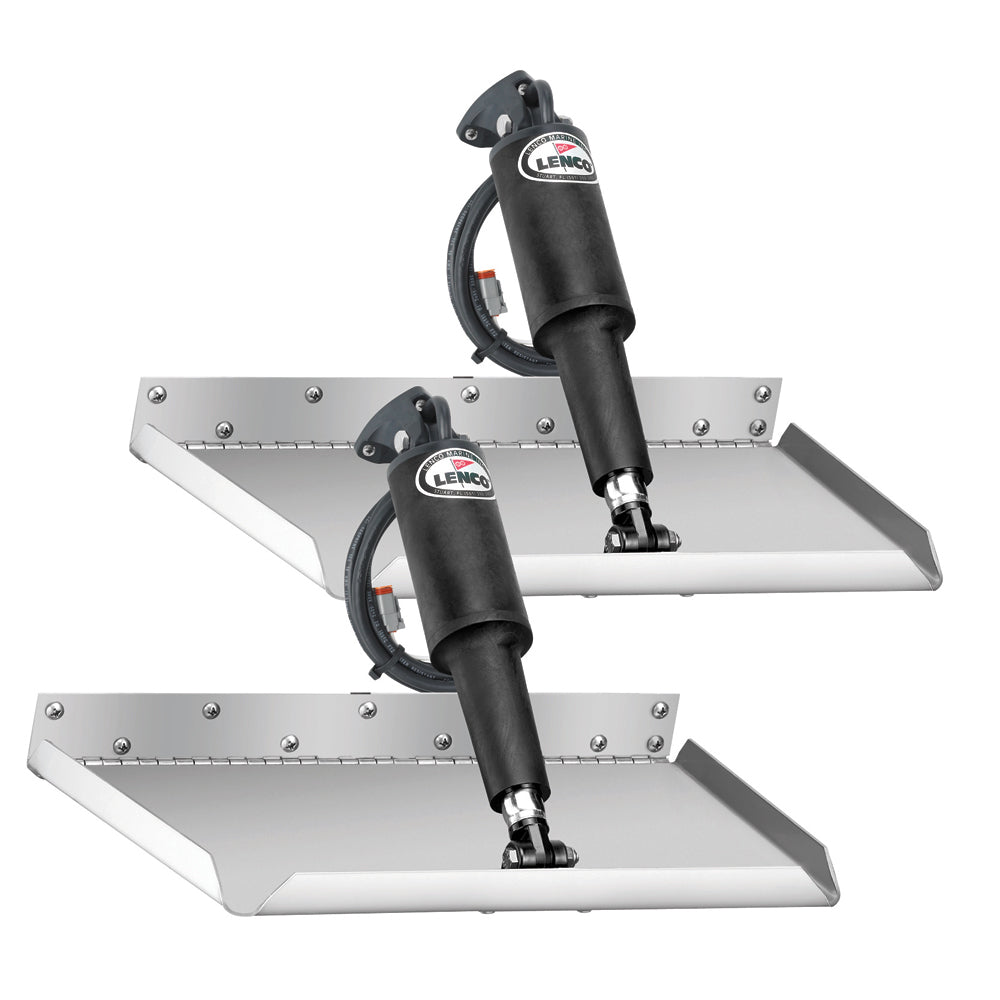

Lenco 12" x 9" Edge Mount Kit without Switch Kit 12V

The Lenco Marine 12 inch x 9 inch Edge Mount Trim Tab Kit is a 12-volt electric trim tab package for boats where reduced transom height is important. It includes the tab planes, actuators, wiring, brackets, hardware, and installation manual, but the switch kit is sold separately.

Edge Mount actuators attach at the trailing edge of the plane and need 4 inches less transom height than Lenco standard mount trim tabs. The kit is suggested for boats from 14 feet to 18 feet and uses 12-gauge stainless steel blades with waterproof Deutsch plug connections.

• Tab size: 12 inch length x 9 inch width
• Voltage: 12-volt actuators
• Suggested boat length: 14 feet to 18 feet
• Minimum transom height: 11 inches
• Hinge height: 2 inches
• Blade material: 12-gauge stainless steel
• Finish: Smooth
• Switch kit: Sold separately
• Compliance: CE Certified
• Compatibility: Any boat
• Included: Two 12-gauge stainless steel trim tab blades
• Included: Two #15054-001 actuators with 6 foot leads and Deutsch plugs
• Included: Two #30133-103 20 foot actuator extension wiring harnesses
• Included: Two #15085-001 upper mounting brackets with gland seal
• Included: Two #50014-001 lower mounting brackets
• Included: Lenco owner’s and installation manual
• Included: Necessary stainless steel mounting hardware
• Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm.
