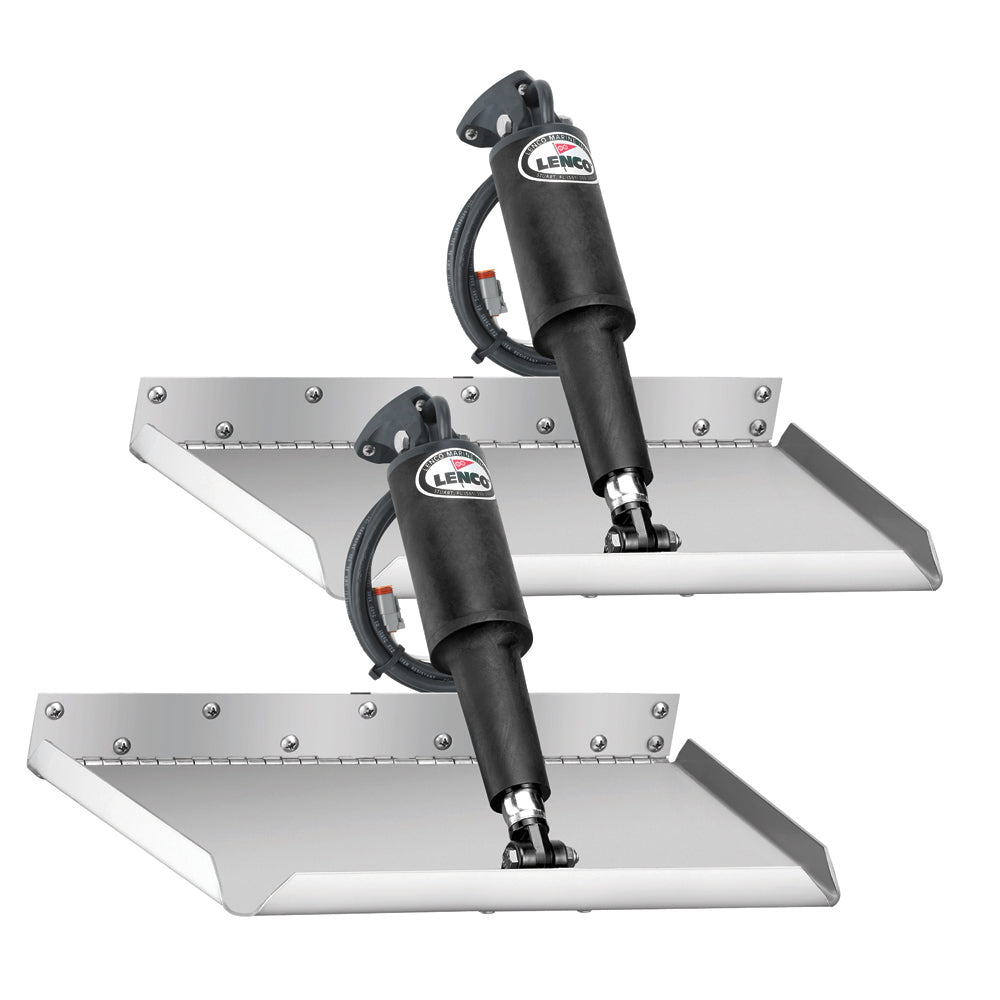

Lenco 12" x 12" Edge Mount Trim Tab Kit w/o Switch Kit 12V

This Lenco Marine Edge Mount trim tab kit includes 12 inch by 12 inch stainless steel tabs and 12-volt actuators, without a switch kit. It is built for boats in the listed size range where edge-mounted actuators are needed to reduce required transom height compared with Lenco standard mount trim tabs.

• Brand: Lenco Marine
• Kit type: Edge Mount trim tab kit without switch kit
• Voltage: 12V actuators
• Suggested boat length: 17 feet to 30 feet
• Tab size: 12 inches long by 12 inches wide
• Hinge height: 2 inches
• Minimum transom height: 11 inches
• Blades: 12 gauge stainless steel with smooth finish
• Actuators: Fast response electric actuators, fully submersible, with waterproof Deutsch connections
• Mounting difference: Edge Mount actuators require 4 inches less transom height than Lenco standard mount trim tabs
• Included tabs: Two 12 gauge stainless steel trim tab blades
• Included actuators: Two #15054-001 actuators with 6 foot leads and Deutsch plugs
• Included harnesses: Two #30133-103 20 foot actuator extension wiring harnesses
• Included brackets: Two #15085-001 upper mounting brackets with gland seal and two #50014-001 lower mounting brackets
• Included documentation and hardware: Lenco owner’s / installation manual and stainless steel mounting hardware
• Switch kit: Sold separately
• Class: Fuel Efficient
• Compliance: CE Certified
• Compatibility: Any boat
