• Lenco 102XD Extreme Duty Actuator - 24V - 4-1/4" Stroke - 5/16" Hardware
1 1

Lenco Marine

Lenco 102XD Extreme Duty Actuator - 24V - 4-1/4" Stroke - 5/16" Hardware

Lenco 102XD Extreme Duty Actuator - 24V - 4-1/4" Stroke - 5/16" Hardware

OM-LENCOMARINE-102XDEXTREMEDU-15067001

$327.61
$534.25 $327.61
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Lenco Marine Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Frequently bought together

Total price:

FREE U.S. shipping on every item

Overview

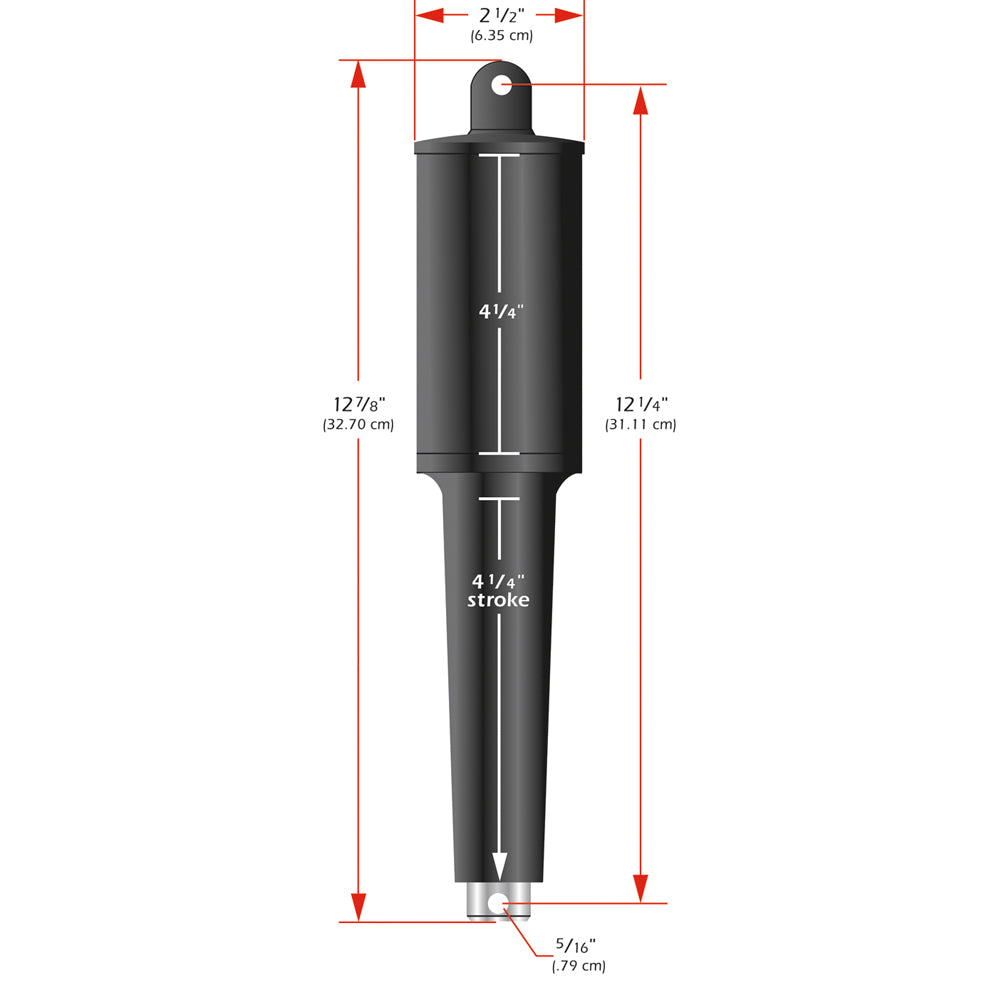

The Lenco Marine 102XD Extreme Duty Actuator is a 24V electric actuator for trolling tab systems sold after 2000 and OEM applications. It is built for setups requiring a 4-1/4 inch stroke, 5/16 inch mounting hardware, and a durable actuator assembly with sealed electrical connections.

  • Voltage: 24V
  • Stroke: 4.25 inches
  • Overall length: 13.25 inches tip to tip
  • Mounting hardware: 5/16 inch hardware included
  • Cable: 6 foot cable
  • Construction: High impact glass fiber filled, ultraviolet-resistant nylon with 316 super buff stainless steel tubing
  • Motor rating: High-torque motor pushes 500 pounds
  • Connection type: Waterproof Plug & Play Deutsch connectors
  • Seal system: Anti Extrusion Ring seal stabilization system with improved O-ring design
  • Base seal: Integrated wiper seal at actuator base
  • Design details: Stronger top cap, mounting clevis, pressure-tight torx screws, molded-in brass thrust bearing, thicker motor housing wall, over-molded cable, and upper mounting bracket with gland seal
  • Compatibility: Trolling Tab systems sold after 2000 and OEM applications

Specifications

BrandLenco Marine
Manufacturer part #15067-001
UPC874847003322
Boxed dimensions12 x 3 x 3 in
Shipping weight3.0 lb
Country of originUNITED STATES
