Lenco 102XD Extreme Duty Actuator - 12V - 4-1/4" Stroke

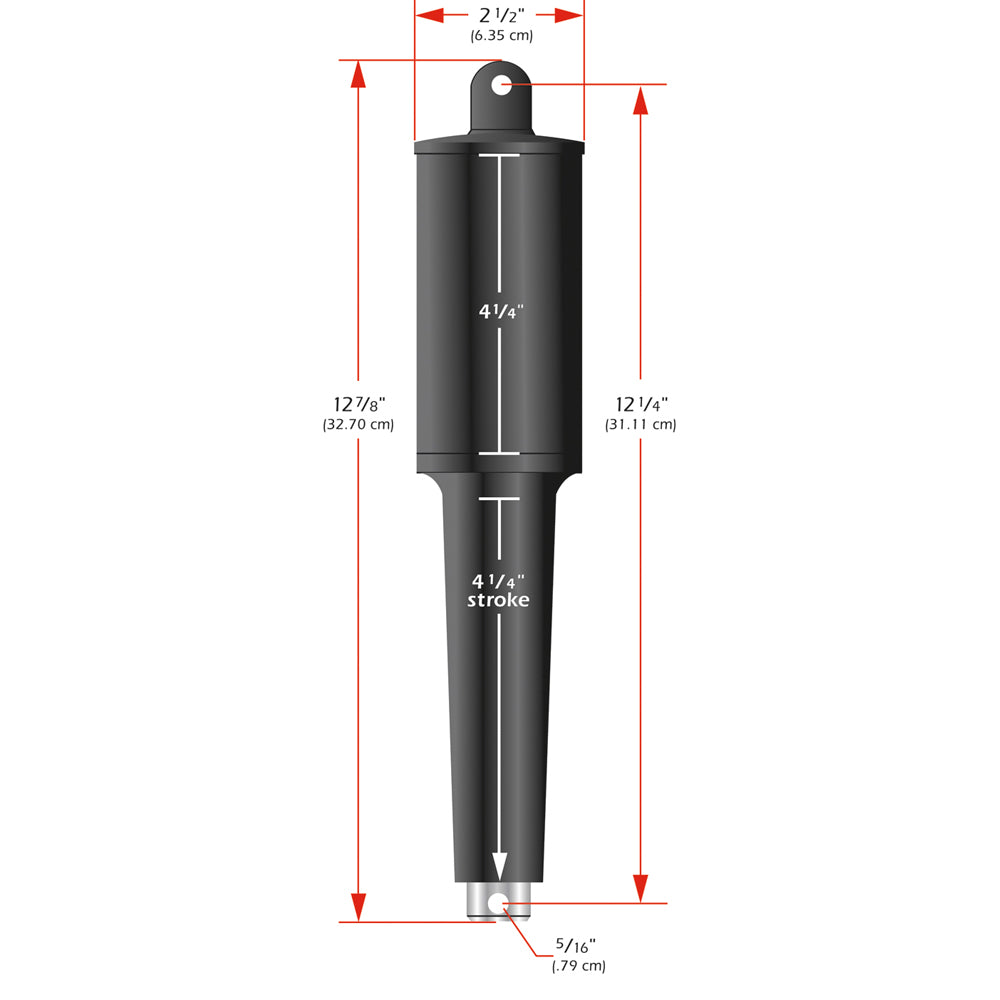

The Lenco Marine 102XD Extreme Duty Actuator is a 12-volt electric actuator for Trolling Tab systems sold after 2000 and OEM applications. It has a 4-1/4 inch stroke, 13 inch tip-to-tip overall length, and includes mounting hardware for installation.

• Brand: Lenco Marine
• Model: 102XD Extreme Duty Actuator
• Voltage: 12V
• Stroke: 4-1/4 inches
• Overall length: 13 inches tip to tip
• Applications listed: Trolling Tab systems sold after 2000 and OEM applications
• Materials listed: High-impact glass fiber filled ultraviolet-resistant nylon and 316 super buff stainless steel tubing
• Hardware: 5/16 inch mounting hardware
• Cable: 6 foot cable
• Motor capability stated: High-torque actuator motor pushes 500 pounds
• Connection type: Waterproof Plug & Play Deutsch connectors
• Design features: Ballscrew design, AXR seal stabilization system, integrated wiper seal, molded-in brass thrust bearing, improved O-ring design, over-molded cable, upper mounting bracket with gland seal, stronger top cap and mounting clevis, improved pressure-tight torx screws, and thicker motor housing wall
• Warning: This product can expose you to chemicals including DEHP, which is known to the State of California to cause cancer, birth defects, or other reproductive harm.
• Return note: This product may not be returned to the original point of purchase; contact the manufacturer with issues or concerns.
