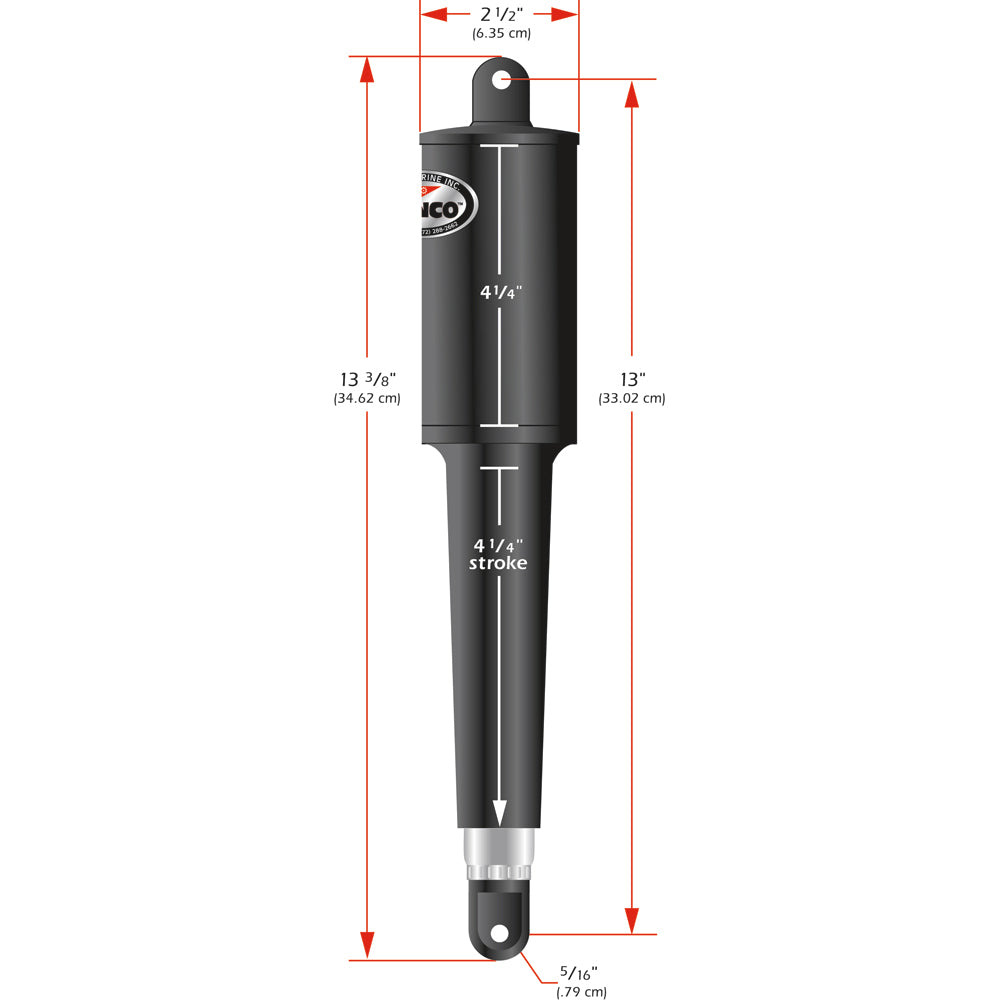

Lenco 102 Series Standard Actuator - 12V - 4-1/4" Stroke

The Lenco Marine 102 Series Standard Actuator is a 12V electric actuator with a 4-1/4 inch stroke. It is specified for Trolling Tab systems sold prior to 2000 and OEM applications, with hardware and a 6 foot cable included.

• Brand: Lenco Marine
• Series: 102 Standard Actuator
• Voltage: 12V
• Stroke: 4-1/4 inches
• Overall length: 14 inches tip to tip
• Application: Trolling Tab systems sold prior to 2000 and OEM applications
• Material: High-impact glass fiber filled ultraviolet-resistant nylon
• Tubing: 316 super buff stainless steel
• Motor: High-torque actuator motor rated to push 500 pounds
• Connector: Waterproof Plug & Play Deutsch connector
• Cable length: 6 feet
• Mounting hardware: 5/16 inch hardware included
• Seal system: Anti Extrusion Ring seal stabilization system and integrated wiper seal at actuator base
• Construction details: Stronger top cap and mounting clevis design, pressure-tight torx screws, molded-in brass thrust bearing, thicker motor housing wall, improved O-ring design, over-molded cable, and upper mounting bracket with gland seal
• Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to P65Warnings.ca.gov.
• Returns: This product may not be returned to the original point of purchase; contact the manufacturer directly with issues or concerns.
