• Lenco 101XDS Short Extreme Duty Actuator - 12V - 2-1/4" Stroke w/5/16" Hardware
1 1

Lenco Marine

Lenco 101XDS Short Extreme Duty Actuator - 12V - 2-1/4" Stroke w/5/16" Hardware

Lenco 101XDS Short Extreme Duty Actuator - 12V - 2-1/4" Stroke w/5/16" Hardware

OM-LENCOMARINE-101XDSSHORTEXT-15057001

$261.43
$421.89 $261.43
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 2 left
Free standard shipping · every U.S. order, no minimum
Authorized Lenco Marine Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

The Lenco Marine 101XDS is a short 12V electric actuator built for OEM-specific kits and installations where available space is limited. It uses Lenco's instant-response ballscrew design and comes with 5/16 inch mounting hardware and a 6 foot cable.

  • Model: 101XDS Short Extreme Duty Actuator
  • Voltage: 12V
  • Stroke: 2-1/4 inch

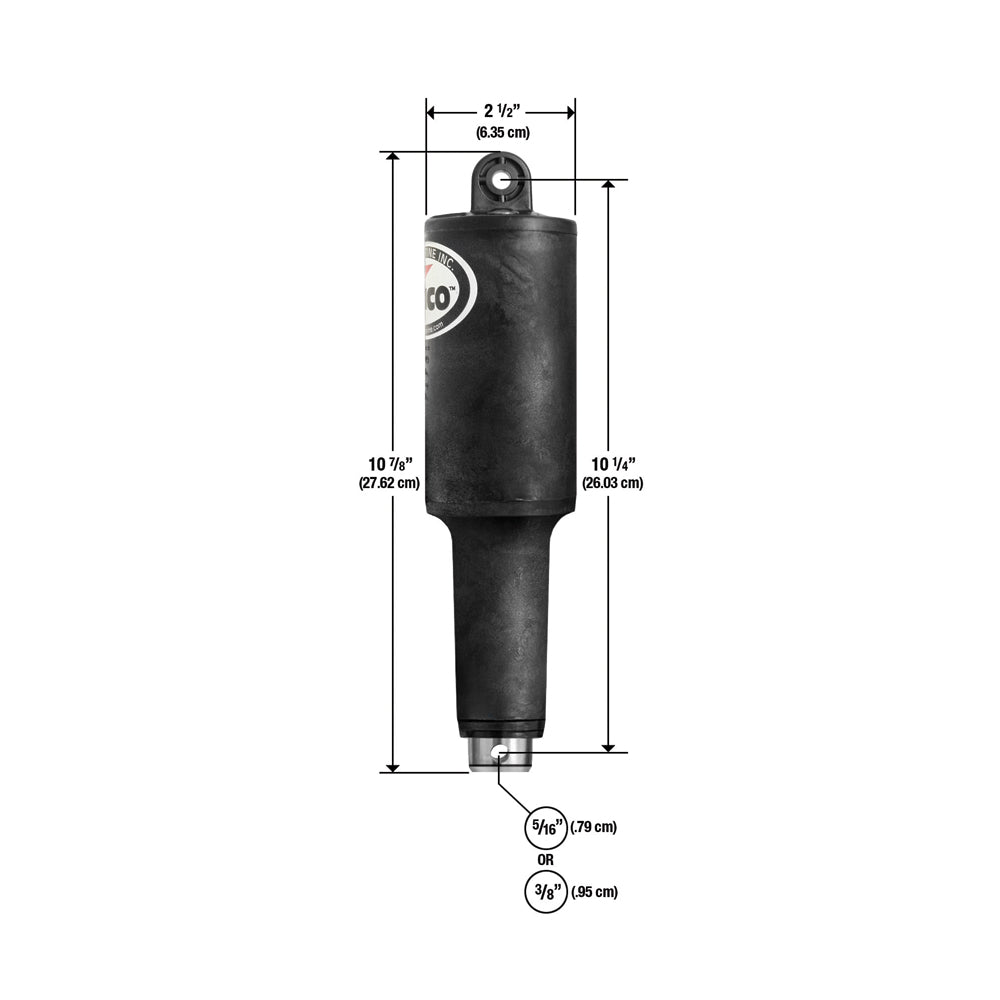

  • Overall length: 10-7/8 inches tip to tip
  • Mounting hardware: 5/16 inch
  • Cable length: 6 feet
  • Material: High impact glass fiber filled, ultraviolet-resistant nylon with 316 super buff stainless steel tubing
  • Motor capacity: Pushes 500 pounds
  • Connections: Waterproof Plug & Play Deutsch connectors
  • Seal features: AXR seal stabilization system, integrated wiper seal, improved O-ring design and over-molded cable
  • Construction details: Stronger top cap and clevis, pressure-tight torx screws, molded-in brass thrust bearing and thicker motor housing wall

Specifications

BrandLenco Marine
Manufacturer part #15057-001
UPC874847003223
Boxed dimensions14 x 4 x 4 in
Shipping weight3.3 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manuals & documents

Quick start guidePDF ↓
