Overview

The Lenco Marine 101XDS is a short extreme-duty 12V actuator made for OEM-specific kits and installations where space is limited. It includes 3/8-inch mounting hardware, a 2-1/4 inch stroke, and a 6-foot cable.

  • Product type: Short extreme-duty actuator
  • Voltage: 12V
  • Stroke: 2-1/4 inches

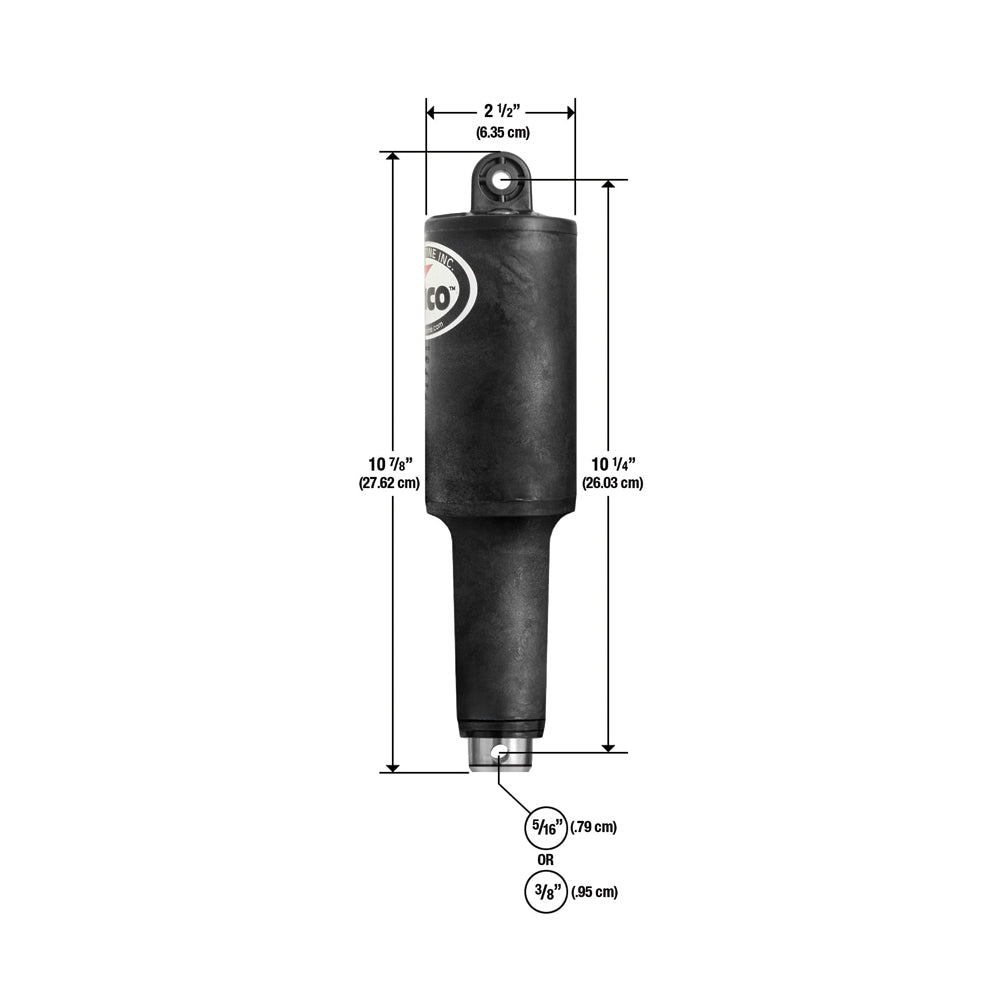

  • Overall length: 10-7/8 inches tip to tip
  • Hardware: 3/8-inch mounting hardware included
  • Cable length: 6 feet
  • Material: High-impact glass fiber filled, ultraviolet-resistant nylon with 316 super buff stainless steel tubing
  • Motor: High-torque actuator motor rated to push 500 pounds
  • Design: Ballscrew actuator design
  • Connections: Waterproof Plug & Play Deutsch connectors
  • Seal features: AXR seal stabilization system, integrated wiper seal, improved O-ring design, over-molded cable, and upper mounting bracket with gland seal
  • Construction details: Stronger top cap and mounting clevis design, pressure-tight torx screws, molded-in brass thrust bearing, and thicker motor housing wall
  • Notice:
  • Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm

Specifications

BrandLenco Marine
Manufacturer part #15058-001
UPC874847003230
Boxed dimensions14 x 4 x 3 in
Shipping weight3.35 lb
Country of originUNITED STATES
