Overview

The Lenco Marine 101XD Extreme Duty Actuator is a 24V electric actuator for HD, XD, High Performance, and Super Strong trim tabs. It has a 2-1/4 inch stroke, 3/8 inch mounting hardware, and construction details aimed at sealing, strength, and durability in marine use.

  • Brand: Lenco Marine
  • Model: 101XD Extreme Duty Actuator
  • Voltage: 24V
  • Stroke: 2-1/4 in

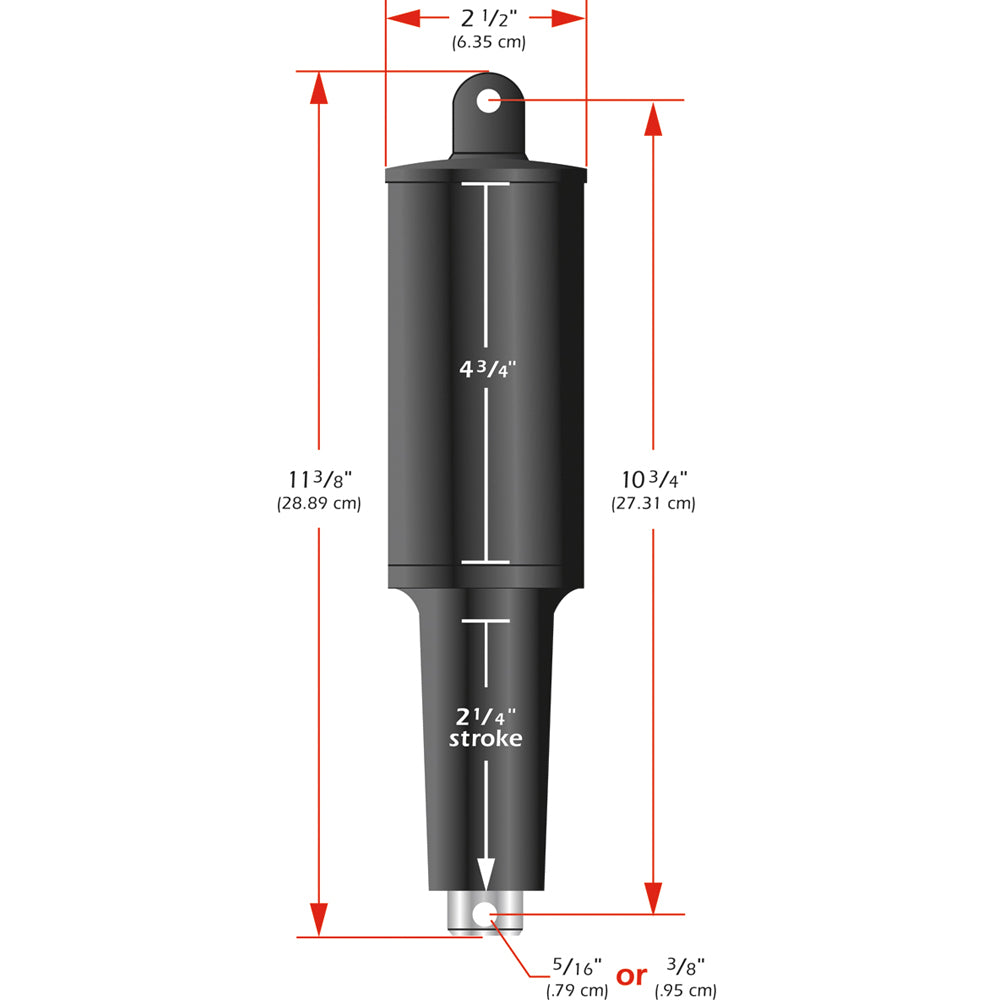

  • Overall length: 11-3/8 in tip to tip
  • Mounting hardware: 3/8 in hardware included
  • Cable: 6 ft cable
  • Compatibility: Used mostly with HD, XD, High Performance, and Super Strong tabs
  • Materials: High-impact glass fiber filled, ultraviolet-resistant nylon with 316 super buff stainless steel tubing
  • Motor: High-torque actuator motor pushes 500 lb
  • Connection: Waterproof Plug and Play Deutsch connectors
  • Design: Ballscrew actuator design
  • Seal and housing features: AXR seal stabilization system, integrated base wiper seal, improved O-ring design, and over-molded cable seal
  • Hardware features: Stronger top cap and mounting clevis, pressure-tight torx screws, molded-in brass thrust bearing, thicker motor housing wall, and upper mounting bracket with gland seal
  • California Proposition 65: This product can expose users to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm.
  • Return note:

Specifications

BrandLenco Marine
Manufacturer part #15063-001
UPC874847003285
Boxed dimensions14 x 4 x 3 in
Shipping weight3.35 lb
Country of originUNITED STATES
