Overview

The Lenco Marine 101XD Extreme Duty Actuator is a 12 volt electric actuator for selected trim tab setups. It is used mostly with HD, XD, High Performance, and Super Strong tabs and includes mounting hardware.

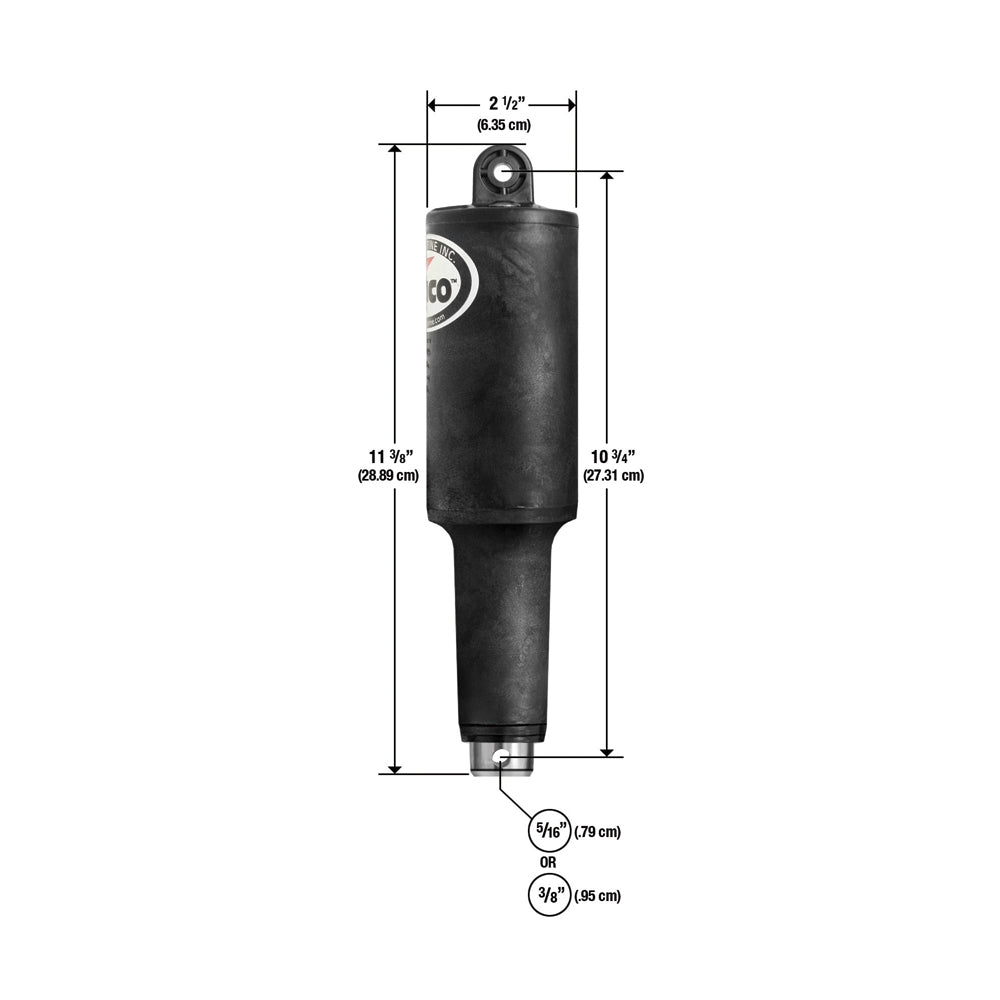

This actuator has a 2-1/4 inch stroke and an overall tip-to-tip length of 11-3/8 inches. It uses high impact glass fiber filled, ultraviolet-resistant nylon with 316 super buff stainless steel tubing.

  • Brand: Lenco Marine
  • Product type: Extreme duty actuator
  • Voltage: 12V
  • Stroke: 2-1/4"
  • Overall length: 11-3/8" tip to tip
  • Common use: HD, XD, High Performance, and Super Strong tabs
  • Material: High impact glass fiber filled, ultraviolet-resistant nylon
  • Tubing: 316 super buff stainless steel
  • Design: Ballscrew actuator
  • Motor: High-torque actuator motor pushes 500 pounds
  • Connections: Waterproof Plug & Play Deutsch connectors
  • Cable: 6 foot
  • Mounting hardware: 5/16" upper and 3/8" lower
  • Seal and housing features: AXR seal stabilization system, integrated wiper seal, improved O-ring design, over-molded cable, and upper mounting bracket with gland seal
  • Other construction details: Stronger top cap and mounting clevis design, pressure-tight torx screws, molded-in brass thrust bearing, and thicker motor housing wall
  • Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm.

Specifications

BrandLenco Marine
Manufacturer part #15056-002
UPC874847006644
Boxed dimensions14 x 4 x 3 in
Shipping weight3.2 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manuals & documents

Quick start guidePDF ↓
