Overview

The Lenco Marine 101XD Extreme Duty Actuator is a 12V electric actuator for HD, XD, High Performance and Super Strong trim tabs. It has a 2-1/4 inch stroke, 5/16 inch mounting hardware and a 6 foot cable.

  • Voltage: 12V
  • Stroke: 2-1/4 inch

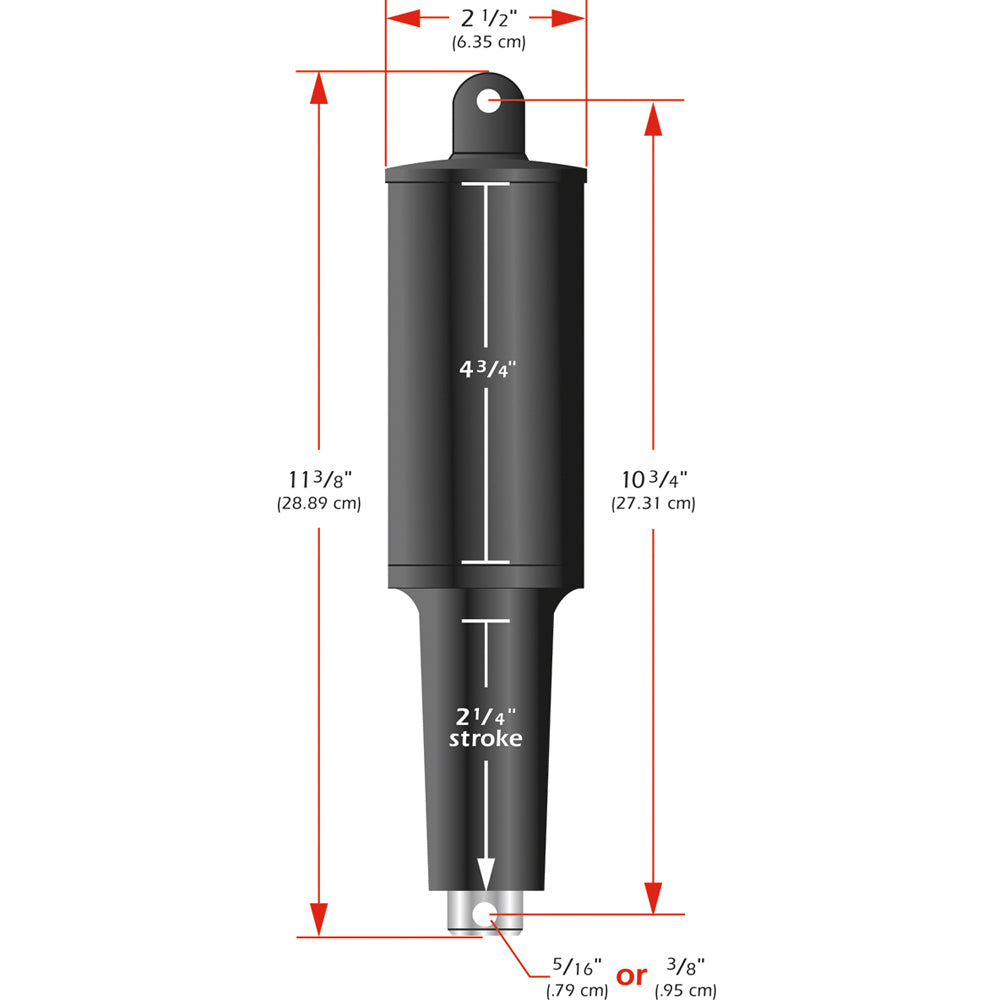

  • Overall length: 11-3/8 inches tip to tip
  • Hardware: 5/16 inch mounting hardware
  • Cable: 6 foot cable
  • Construction: High-impact glass fiber filled, ultraviolet-resistant nylon with 316 super buff stainless steel tubing
  • Seal system: Anti Extrusion Ring seal stabilization system
  • Connections: Waterproof Plug & Play Deutsch connectors
  • Design details: Stronger top cap and mounting clevis, pressure-tight torx screws, integrated wiper seal, molded-in brass thrust bearing, thicker motor housing wall, improved O-ring and over-molded cable
  • Mounting bracket: Upper mounting bracket with gland seal
  • Motor rating: High-torque actuator motor pushes 500 pounds

Specifications

BrandLenco Marine
Manufacturer part #15055-001
UPC874847003209
Boxed dimensions14 x 4 x 3 in
Shipping weight3.2 lb
Country of originUNITED STATES
