Overview

Put electric trim-tab movement to work with the Lenco Marine 101XD Extreme Duty Actuator. Used primarily with HD, XD, High Performance and Super Strong tabs, this 12V actuator delivers a 2.25-inch stroke through a ballscrew drive.

Key features

  • High-torque motor provides 500 pounds of pushing force to move the tabs.
  • Waterproof Deutsch connectors help keep water out of electrical connections.
  • UV-resistant, glass-fiber-filled nylon and 316 stainless steel tubing provide a durable actuator assembly.
  • AXR seal stabilization, an integrated base wiper and an upper bracket gland seal support sealing around the actuator.
  • An over-molded cable helps maintain a tight seal at the cable entry.
  • Included mounting hardware and a 6-foot cable provide components needed for installation.

Specifications

  • Model: 101XD Extreme Duty
  • Voltage: 12V
  • Stroke: 2.25 inches

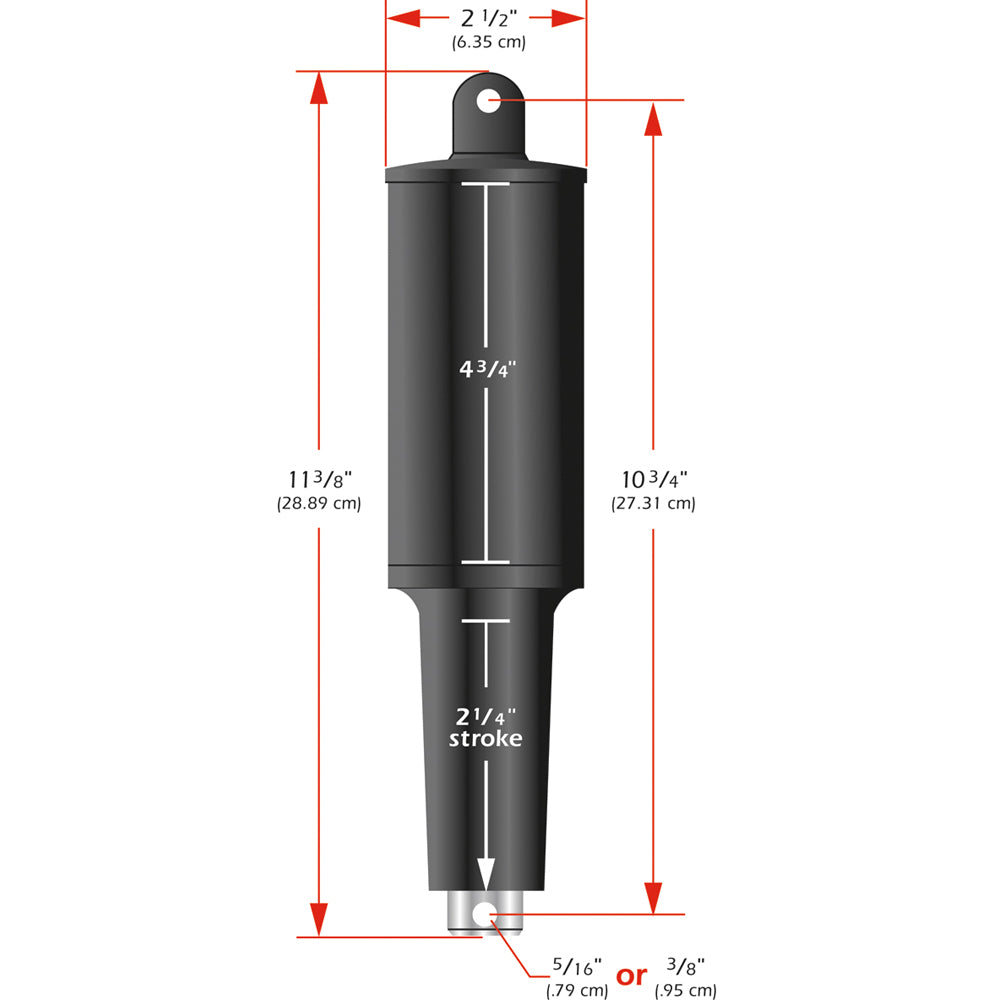

  • Overall tip-to-tip length: 11 3/8 inches
  • Mounting hardware size: 3/8 inch
  • Cable length: 6 feet
  • Motor pushing force: 500 pounds
  • Body material: High-impact, UV-resistant, glass-fiber-filled nylon
  • Tubing material: 316 super buff stainless steel
  • Thrust bearing: Molded-in brass

Good to know

Mounting hardware is included. The stated primary applications are HD, XD, High Performance and Super Strong tabs.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .

Specifications

BrandLenco Marine
Manufacturer part #15056-001
UPC874847003216
Boxed dimensions14 x 4 x 3 in
Shipping weight3.3 lb
Country of originUNITED STATES
